改进膨胀时空图卷积网络的短时交通流预测

doi:10.19678/j.issn.1000-3428.0069765

摘要/Abstract

摘要：

路网交通流预测在智能交通领域起着关键性作用, 交通流不仅具有高度的空间相关性, 同时在时间特征上也存在时间相关性和周期性。现有的时空交通流量预测在时间特征提取方面更多关注交通流的局部时间特征。针对上述问题, 提出一种改进膨胀时空图卷积网络(IDTS-GCN)模型, 以改进的图卷积网络(GCN)为基础提取空间特征, 将膨胀卷积的顺序操作改为并行操作后将膨胀序列嵌入双向长短期记忆(Bi-LSTM)中提取交通流短期局部与宏观长期时间特征, 低膨胀率的序列提取短期局部时间特征, 高膨胀率的序列提取长期宏观时间特征, 在此基础上添加残差连接融合时空特征得到最终预测结果。为了验证IDTS-GCN模型的有效性, 在PeMS04和PeMS08数据集上进行测试, 结果表明, IDTS-GCN模型在两种数据集下相较STSGCN时空联合学习模型, 平均绝对误差(MAE)、平均绝对百分比误差(MAPE)和均方根误差(RMSE)平均下降了4.917%、3.371%、6.079%和6.291%、5.842%、4.395%。

关键词: 智能运输系统, 交通流预测, 时空特征, 图信号处理, 双向长短期记忆

Abstract:

Traffic flow prediction for road networks plays a key role in intelligent transportation. Traffic flow not only exhibits high spatial correlation but also exhibits long-term correlation and periodicity in time characteristics. Existing spatio-temporal traffic flow prediction models focus more on the local time characteristics of traffic flows through time feature extraction. To address this issue, this study proposes an Improved Dilated Temporal-Spatial Graph Convolution Network (IDTS-GCN) model to extract spatial features based on an improved Graph Convolution Network (GCN). The sequential operation of dilated convolution is changed to a parallel operation, and the dilated series is embedded into Bi-directional Long Short-Term Memory (Bi-LSTM) to extract short-term local and macro-long-term time features of traffic flow. Short-term local temporal features are extracted from sequences with low dilated rates, and long-term macro-temporal features are extracted from sequences with high dilated rates. Accordingly, residual connections are added to fuse the spatio-temporal features to obtain the final prediction. In evaluations on the PeMS04 and PeMS08 datasets, IDTS-GCN reduces the Mean Absolute Error (MAE), Mean Absolute Percentage Error (MAPE), and Root Mean Square Error (RMSE) by 4.917%, 3.371%, and 6.079% and 6.291%, 5.842%, and 4.395%, respectively, compared with that achieved by the STSGCN spatiotemporal joint learning model.

Key words: Intelligent Transportation Systems (ITS), traffic flow prediction, spatial-temporal features, Graph Signal Processing (GSP), Bi-directional Long Short-Term Memory (Bi-LSTM)

罗向龙, 徐忠承, 苏勇东, 何西槟, 刘若辰. 改进膨胀时空图卷积网络的短时交通流预测[J]. 计算机工程, 2025, 51(12): 346-356.

LUO Xianglong, XU Zhongcheng, SU Yongdong, HE Xibin, LIU Ruochen. Short-Term Traffic Flow Prediction Based on Improved Dilated Temporal-Spatio Graph Convolutional Network[J]. Computer Engineering, 2025, 51(12): 346-356.

https://www.ecice06.com/CN/Y2025/V51/I12/346

图/表 16

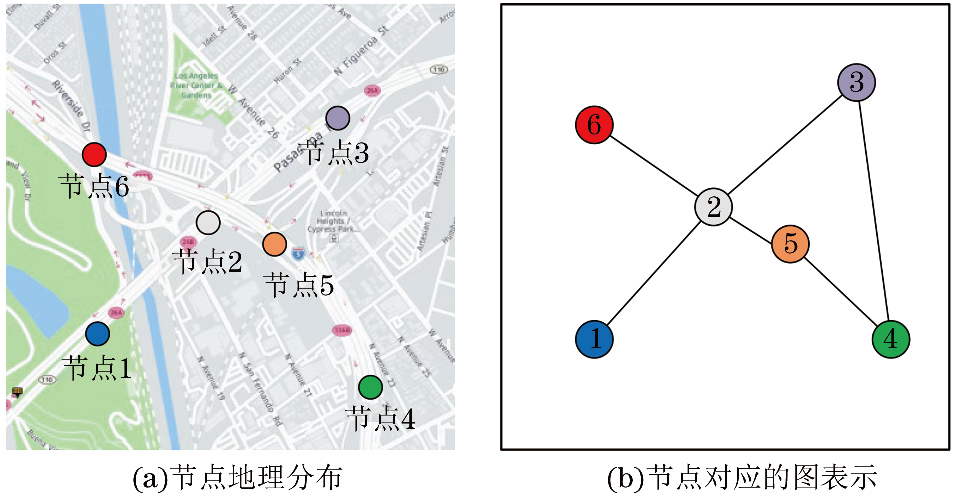

图1 路网图描述示例

Fig.1 Examples of road network diagram descriptions

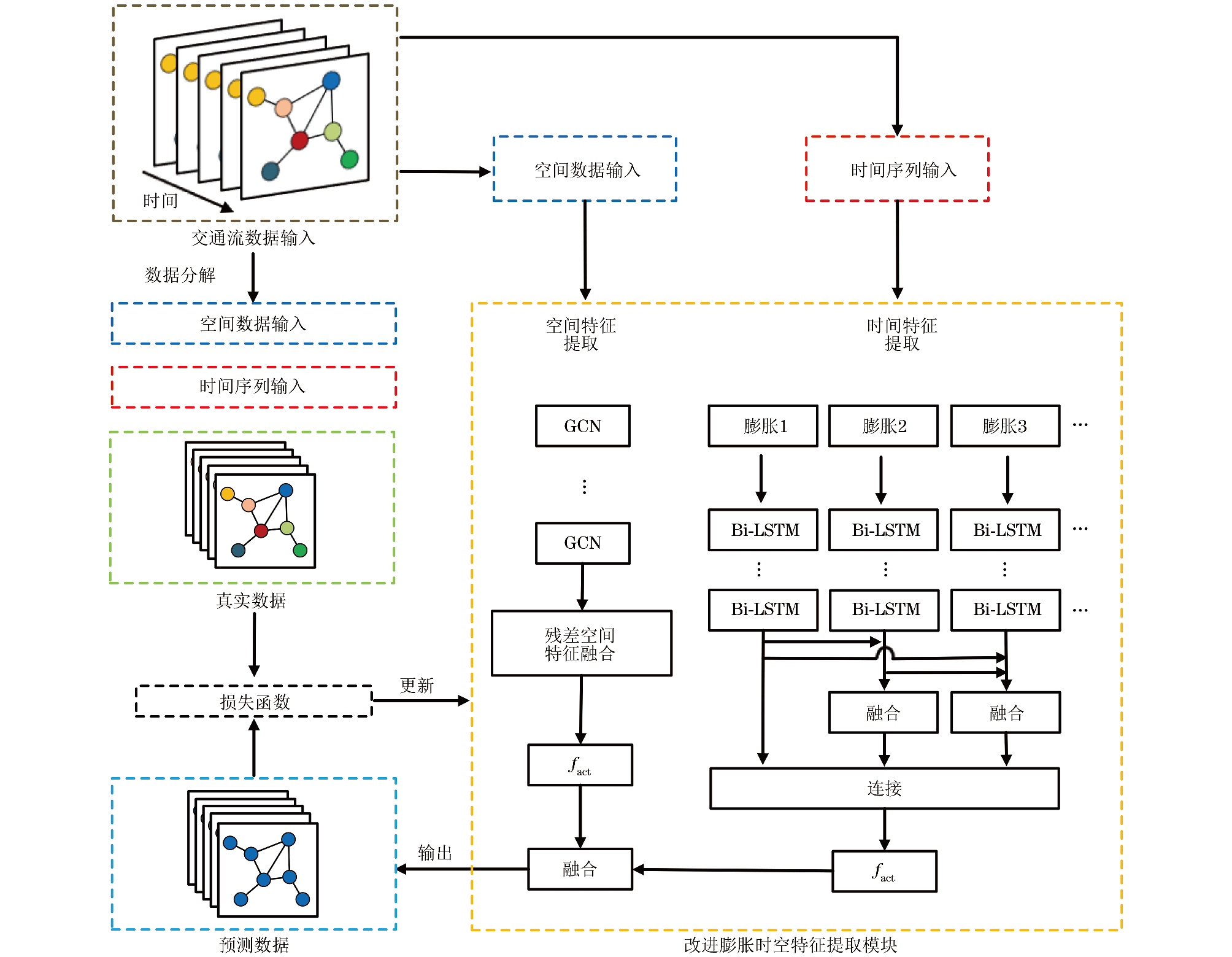

图2 IDTS-GCN模型框架

Fig.2 IDTS-GCN model framework

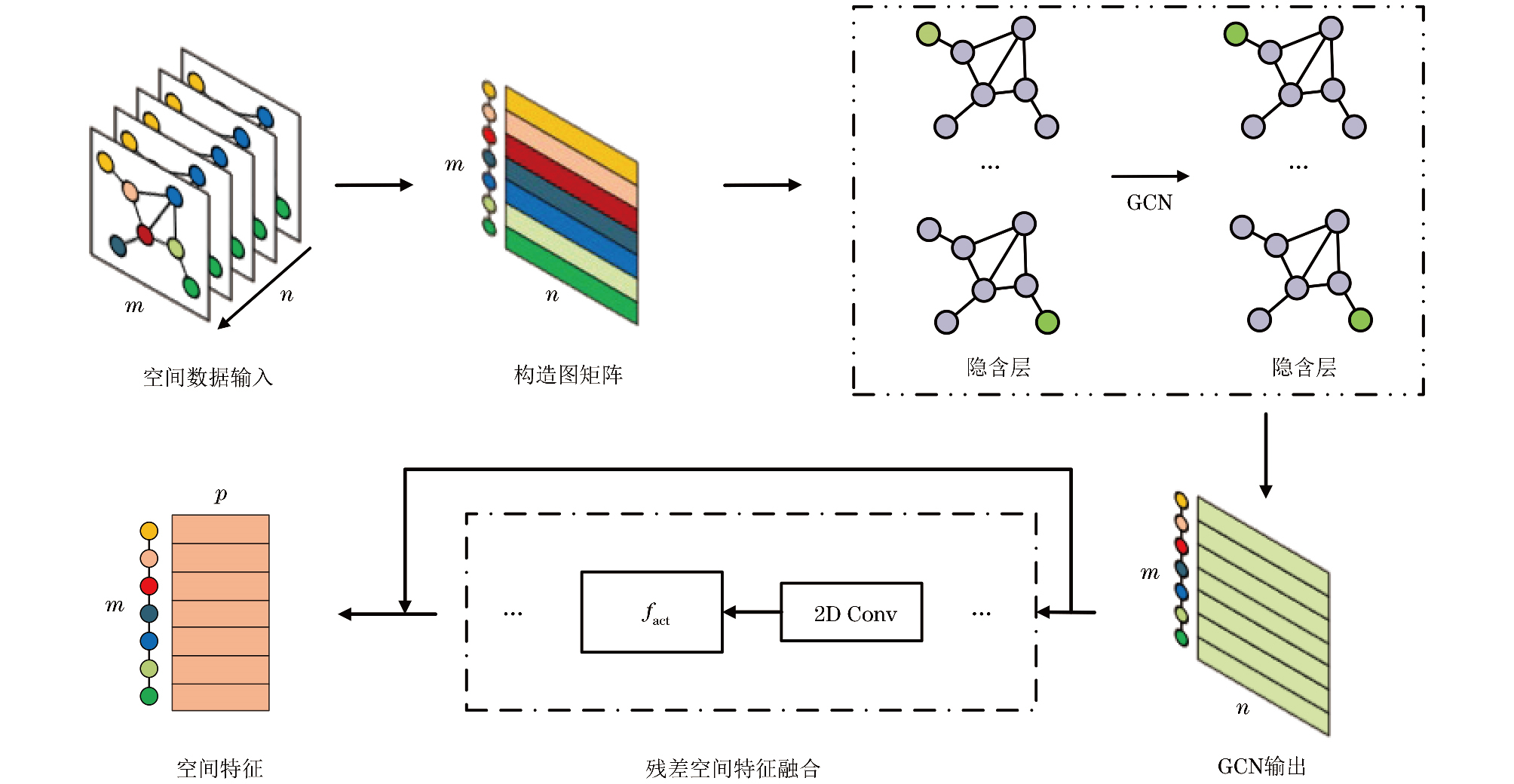

图3 改进空间特征提取模块

Fig.3 Improved spatial feature extraction module

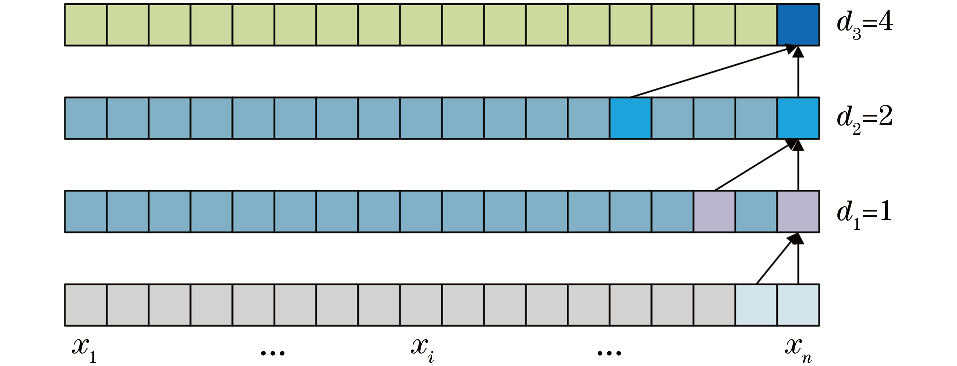

图4 一维膨胀卷积

Fig.4 One-dimensional dilated convolution

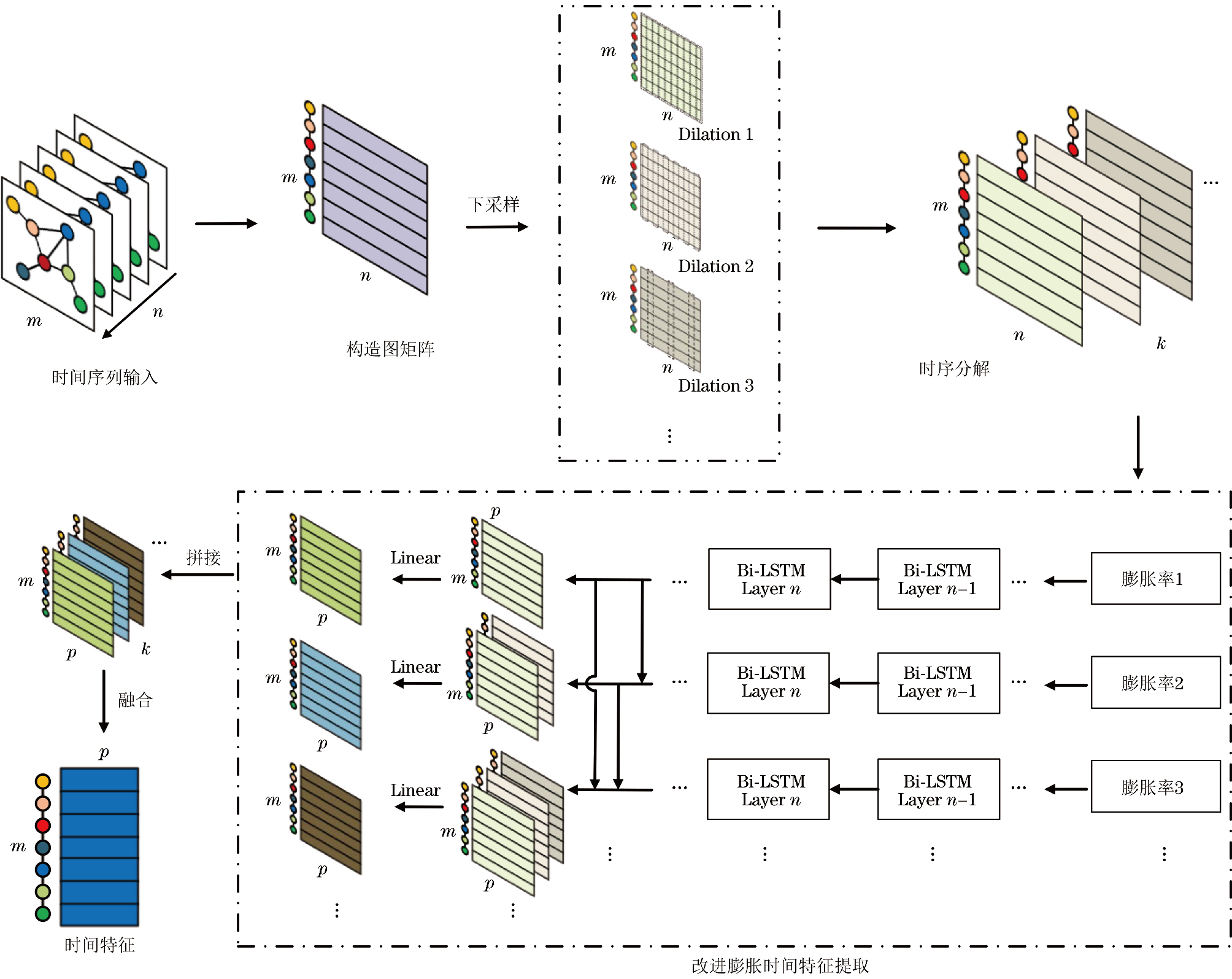

图5 动态膨胀时间特征提取模块

Fig.5 Dynamic dilated time feature extraction module

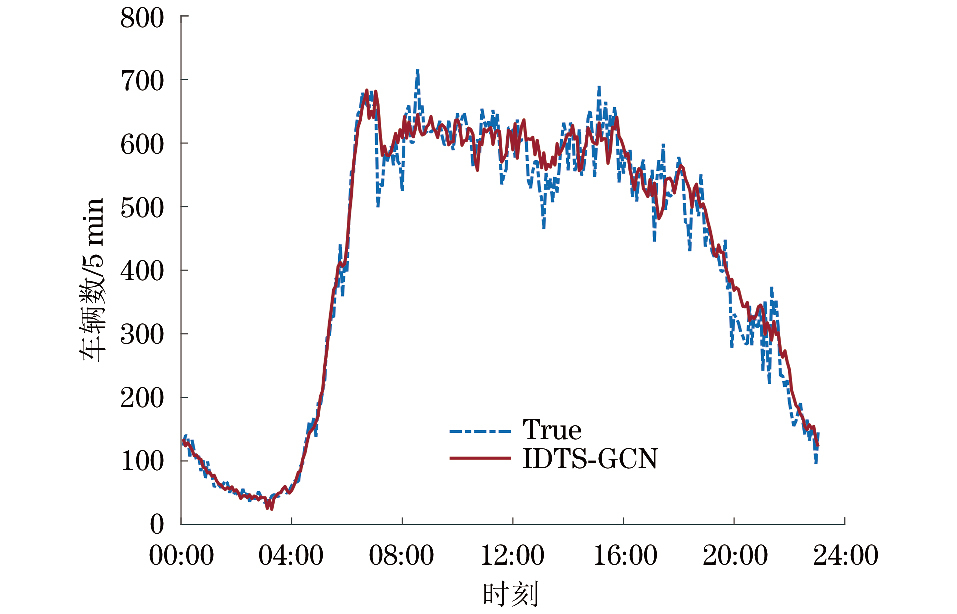

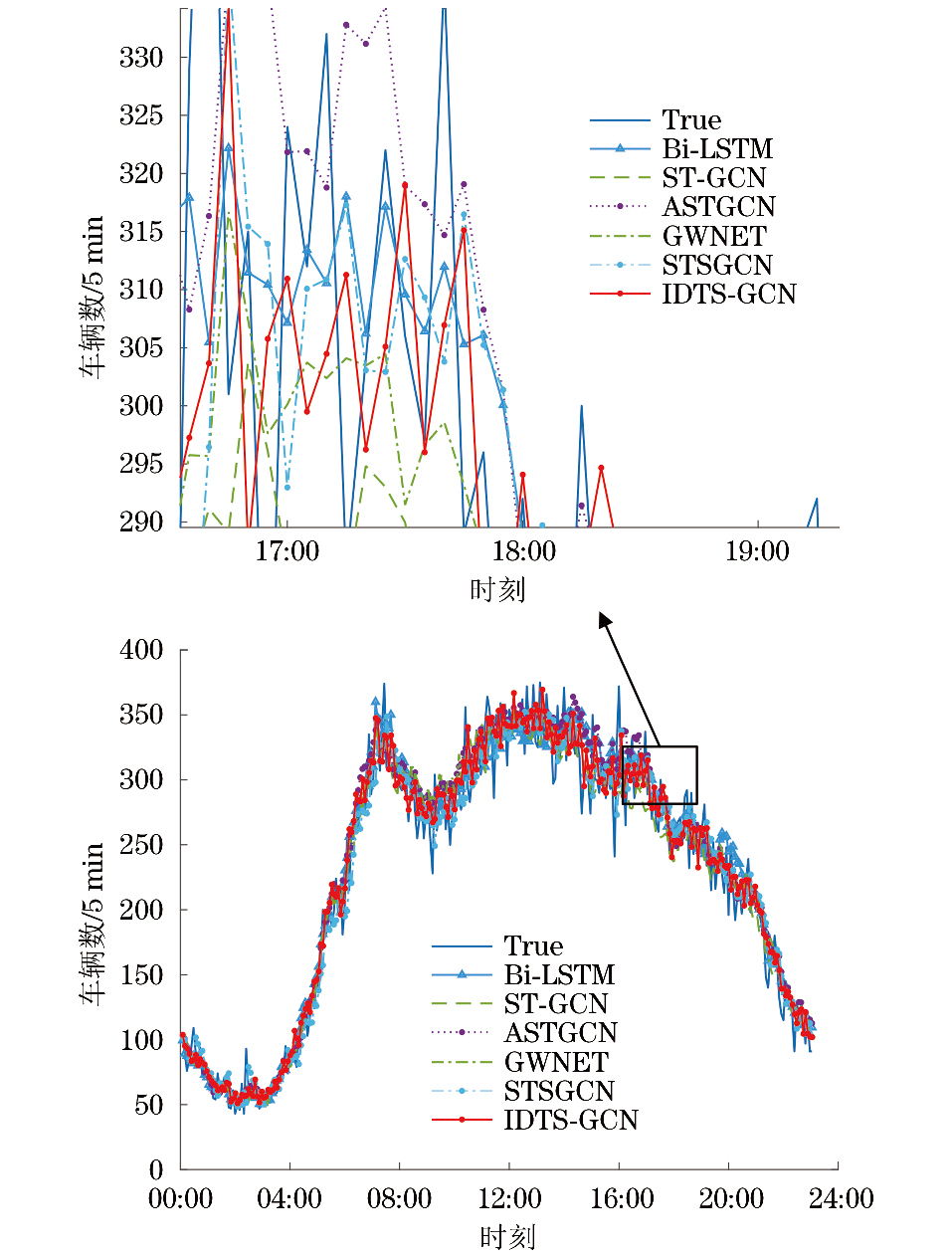

图6 在PeMS04数据集上IDTS-GCN预测结果

Fig.6 Prediction results of IDTS-GCN on the PeMS04 dataset

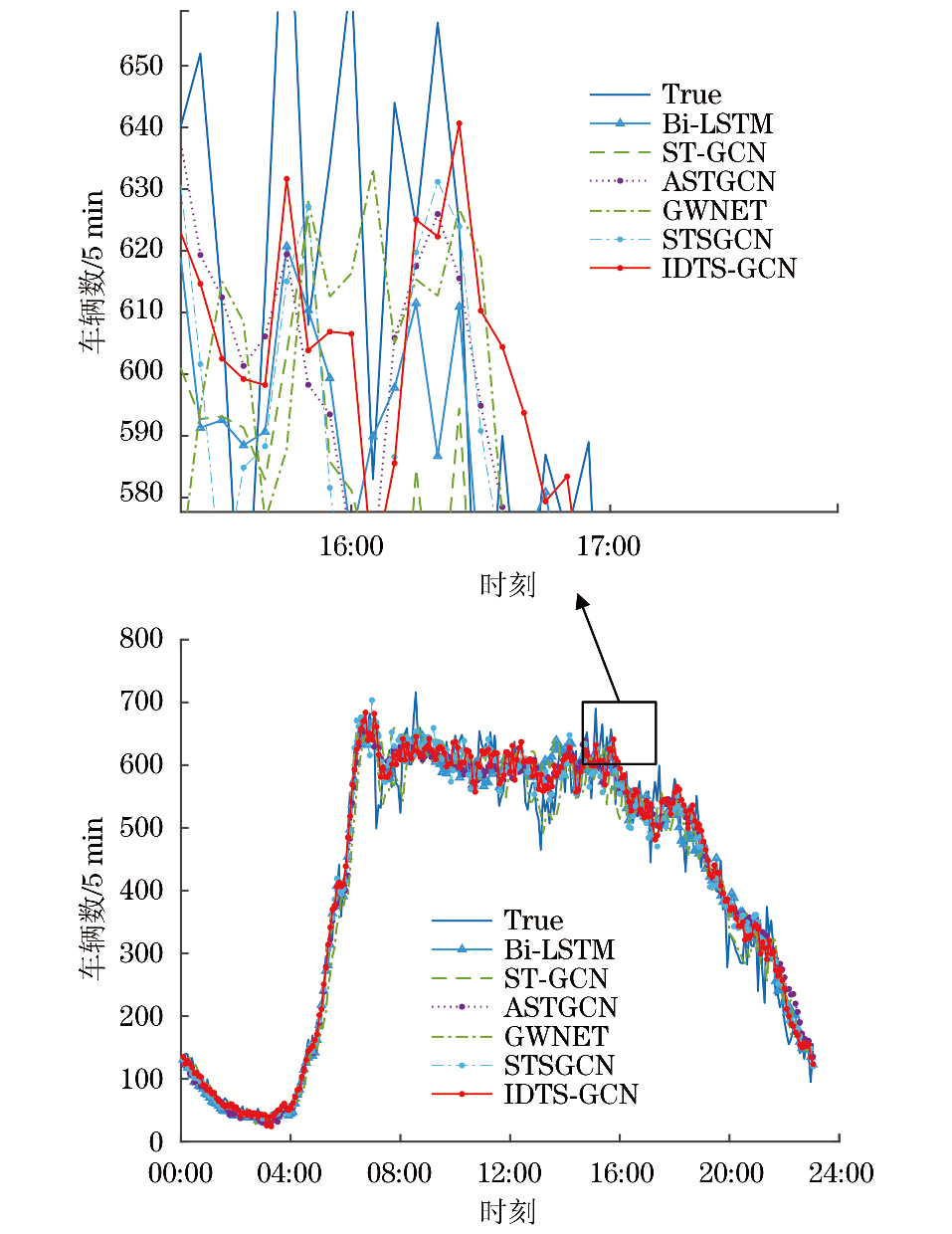

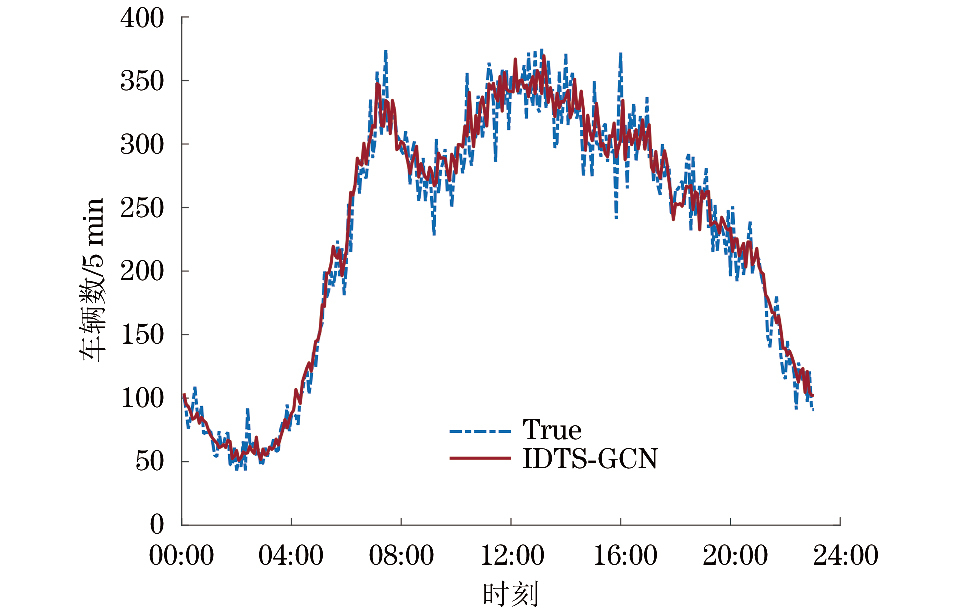

图7 在PeMS08数据集上IDTS-GCN预测结果

Fig.7 Prediction results of IDTS-GCN on the PeMS08 dataset

图8 在PeMS04数据集上不同模型预测结果

Fig.8 Prediction results of different models on the PeMS04 dataset

图9 在PeMS08数据集上不同模型预测结果

Fig.9 Prediction results of different models on the PeMS08 dataset

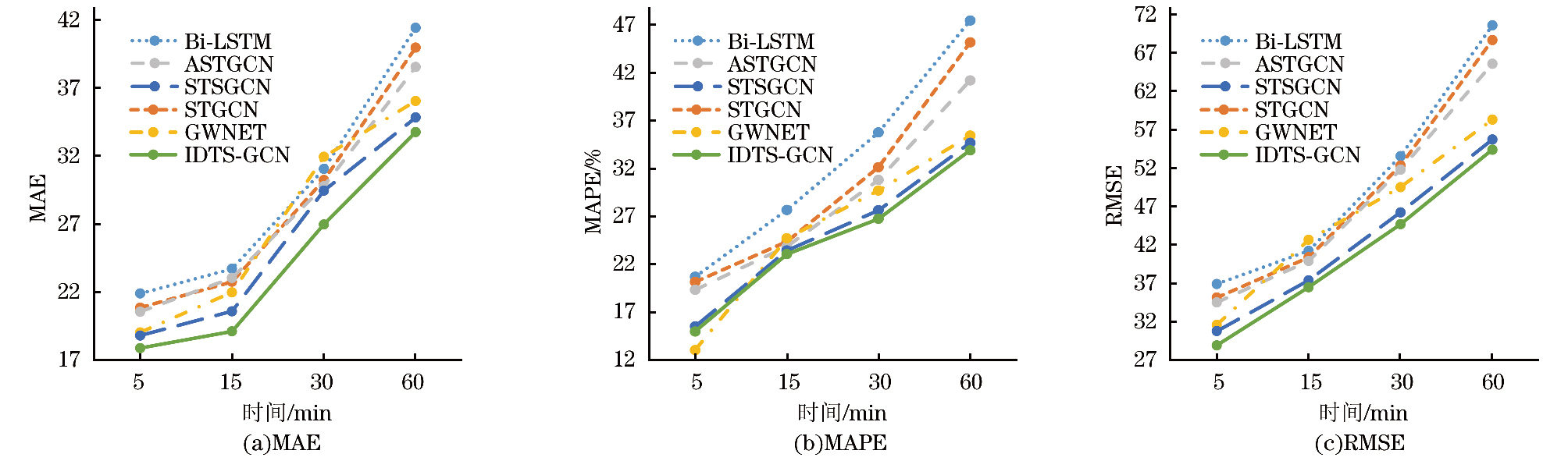

图10 多步预测性能比较

Fig.10 Multi-step predictive performance comparison

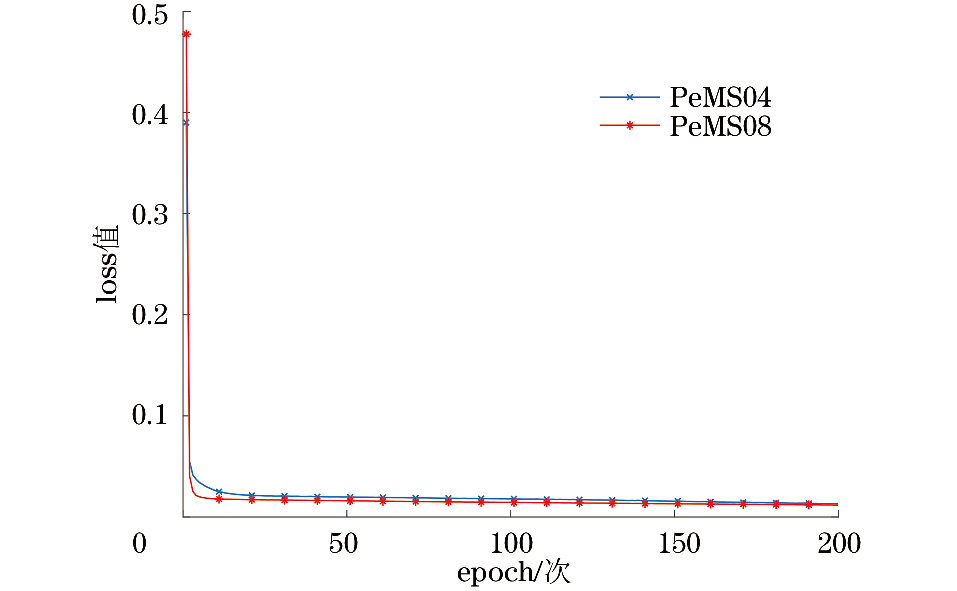

图11 IDTS-GCN模型训练误差曲线

Fig.11 IDTS-GCN model training error curve
