Optimization of Posit Multiplication Unit Based on Improved Wallace Tree

doi:10.19678/j.issn.1000-3428.0070244

Abstract

Abstract:

The Posit format, a novel floating-point representation, offers significant advantages over the IEEE 754 standard in terms of dynamic range and rounding error management. However, its hardware implementation, particularly the design of the mantissa multiplier, poses challenges. Therefore, this paper introduces an enhanced Wallace tree algorithm named 3L-Wallace tree, which reduces the number of stages in partial product summation, thereby decreasing both hardware resource consumption and overall latency. This improvement is achieved by adding specific counters, redesigning the layout of the partial product summation stage counters, and enhancing the adders used in the final summation stage. Furthermore, the paper implements the 3L-Wallace tree in the optimization of the Posit multiplication unit. Additionally, a modular design approach is introduced, dividing large bit-width multipliers into smaller, more manageable modules, thereby simplifying the design process and easing implementation difficulties. A dynamic selection algorithm is also designed, which dynamically selects multipliers of appropriate bit-width based on runtime mantissa width to avoid hardware resource waste. Experimental results show that the 3L-Wallace tree algorithm reduces hardware resource consumption by an average of 9.5%, power consumption by an average of 8.1%, and latency by an average of 10.4%, outperforming traditional methods, particularly in the implementation of large bit-width multipliers.

Key words: Posit format, Wallace tree, multiplication unit, mantissa multiplier, counters, Field-Programmable Gate Array (FPGA)

摘要：

Posit格式作为一种新的浮点数表示方法, 虽然在动态范围和舍入误差处理上相比IEEE 754浮点格式具有显著优势, 但其硬件实现尤其是尾数乘法器的设计存在挑战。为此, 通过增加特定的计数器、重新设计部分积求和阶段计数器布局以及改进最终求和阶段使用的加法器, 提出一种名为3L-Wallace树的改进Wallace树算法, 以减少部分积求和的阶段数, 降低硬件资源消耗和整体延迟。随后, 基于3L-Wallace树对Posit乘法单元进行了优化。此外, 还引入模块化设计方法, 将大位宽乘法器划分为更易于实现的小模块, 简化了设计过程并减小了实现难度。同时, 设计一种动态选择算法, 根据运行时尾数位宽动态选择合适位宽的乘法器, 避免硬件资源浪费。实验结果显示, 3L-Wallace树算法硬件资源消耗相较于传统方法平均减少约9.5%, 功率平均降低约8.1%, 时延平均降低约10.4%, 整体表现优于传统方法, 特别是在大位宽乘法器的实现上表现突出。

关键词: Posit格式, Wallace树, 乘法单元, 尾数乘法器, 计数器, 现场可编程门阵列

GAO Zhiyong, WANG Lei, LIU Bowen, YING Jinrui, WANG Panlong. Optimization of Posit Multiplication Unit Based on Improved Wallace Tree[J]. Computer Engineering, 2026, 52(3): 276-286.

高志勇, 王磊, 刘博文, 英津瑞, 王盼龙. 基于改进Wallace树的Posit乘法单元优化[J]. 计算机工程, 2026, 52(3): 276-286.

/ Recommend / Download Citations

URL: https://www.ecice06.com/EN/10.19678/j.issn.1000-3428.0070244

https://www.ecice06.com/EN/Y2026/V52/I3/276

Figures/Tables 13

Fig.1 8×8 traditional Wallace tree partial product summation diagram

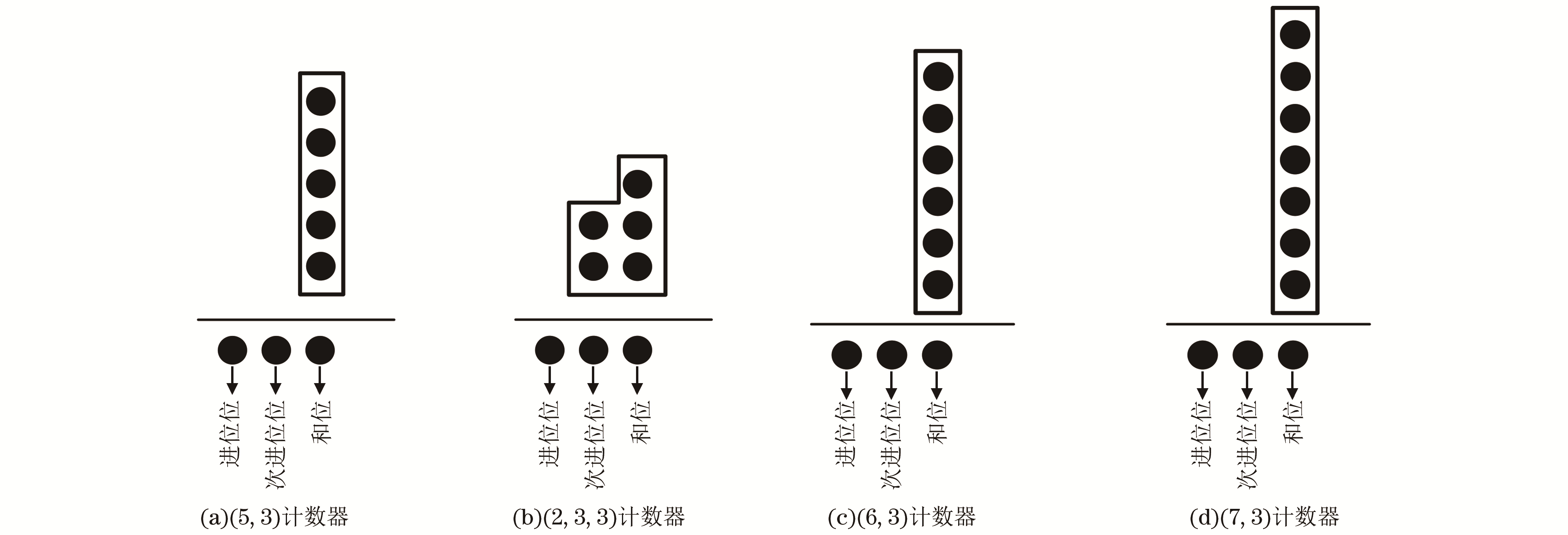

Fig.2 Diagram of four types of counters

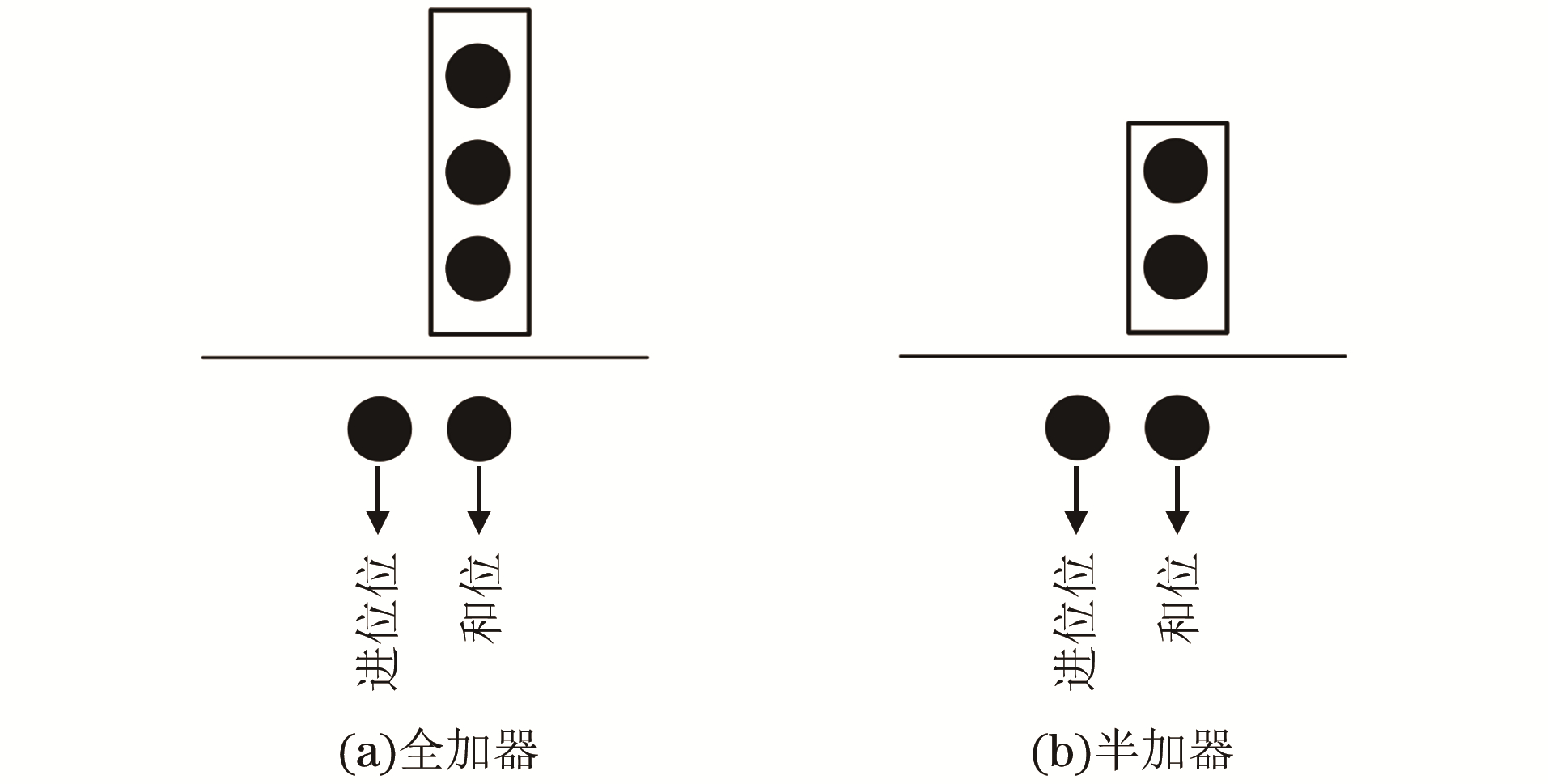

Fig.3 Diagram of full adder and half adder

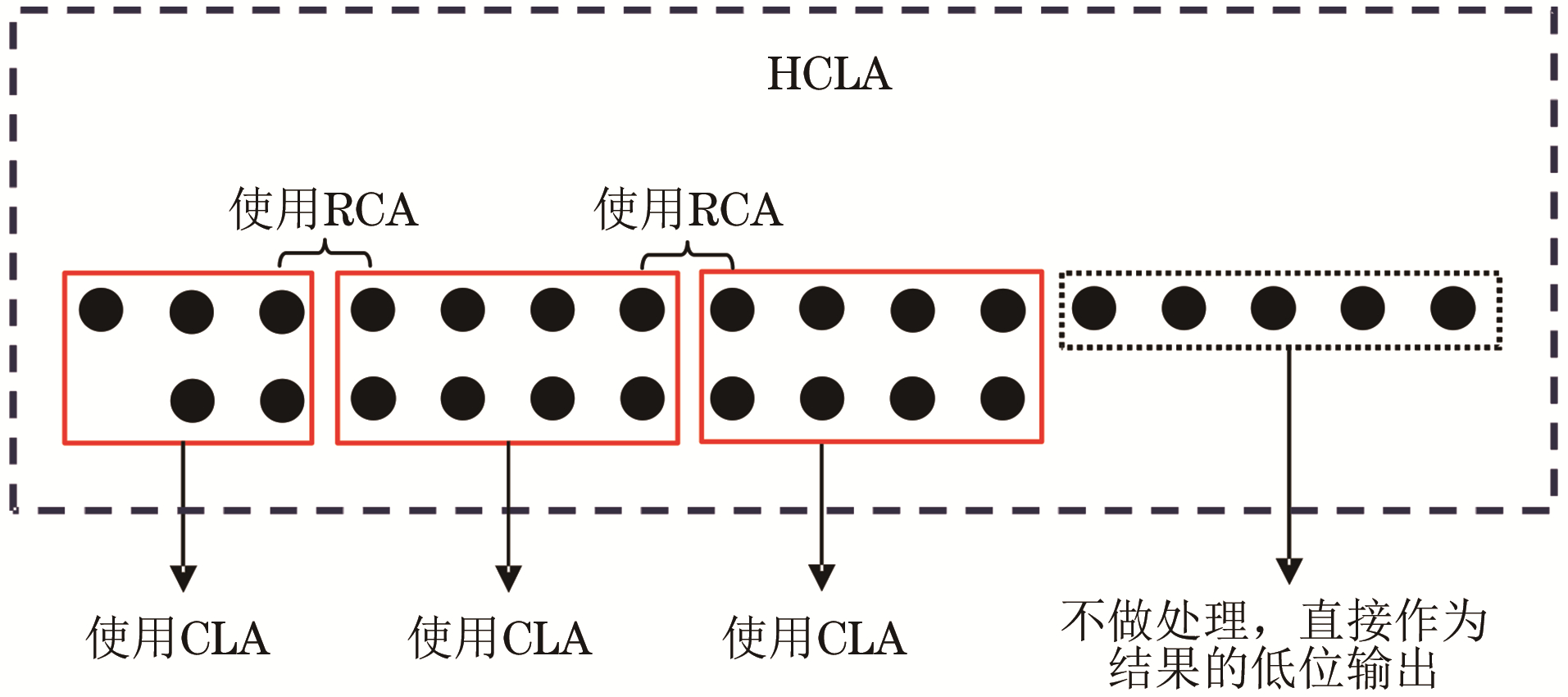

Fig.4 Diagram of HCLA

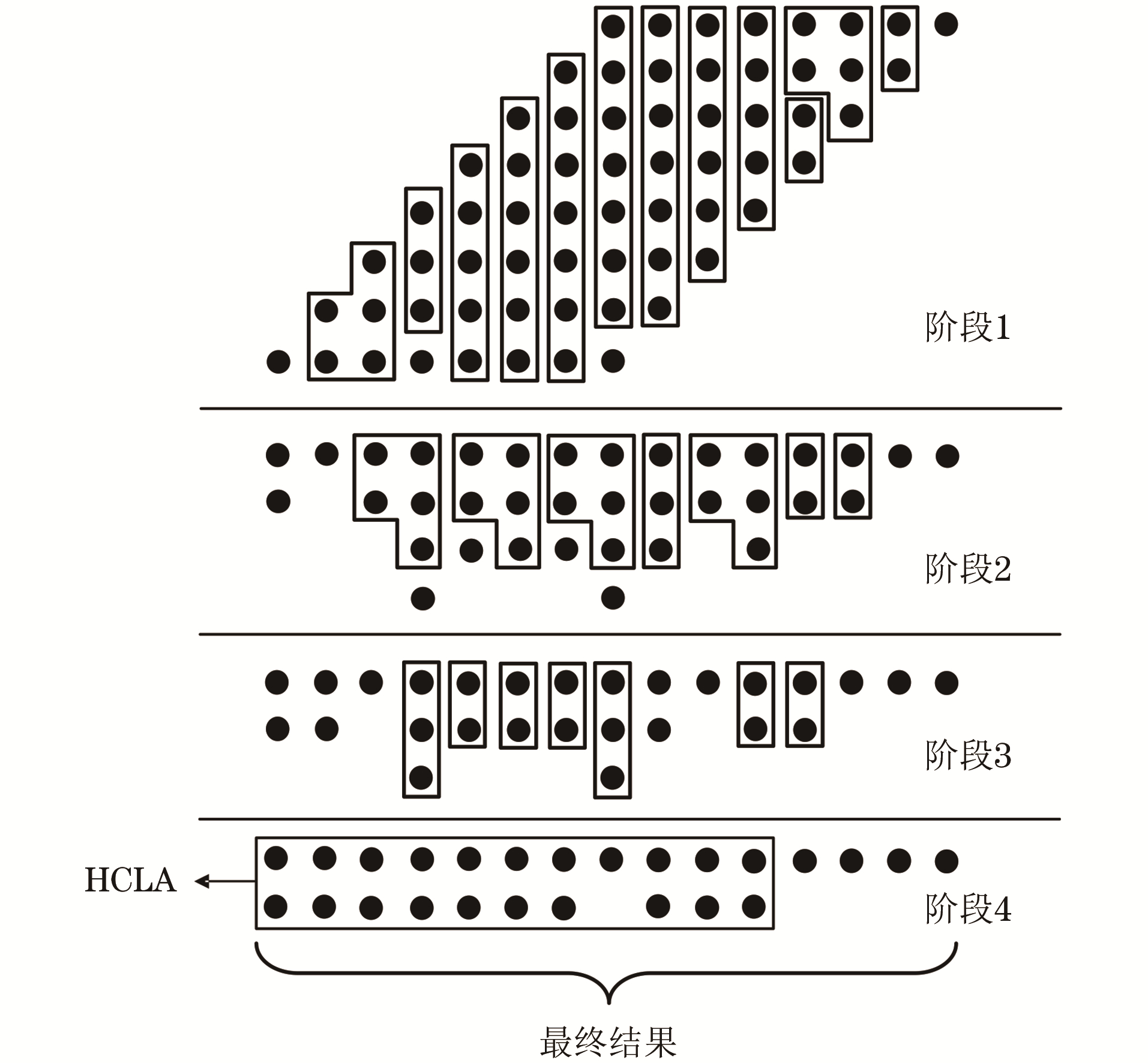

Fig.5 Diagram of the 8×8 3L-Wallace tree partial product summation process

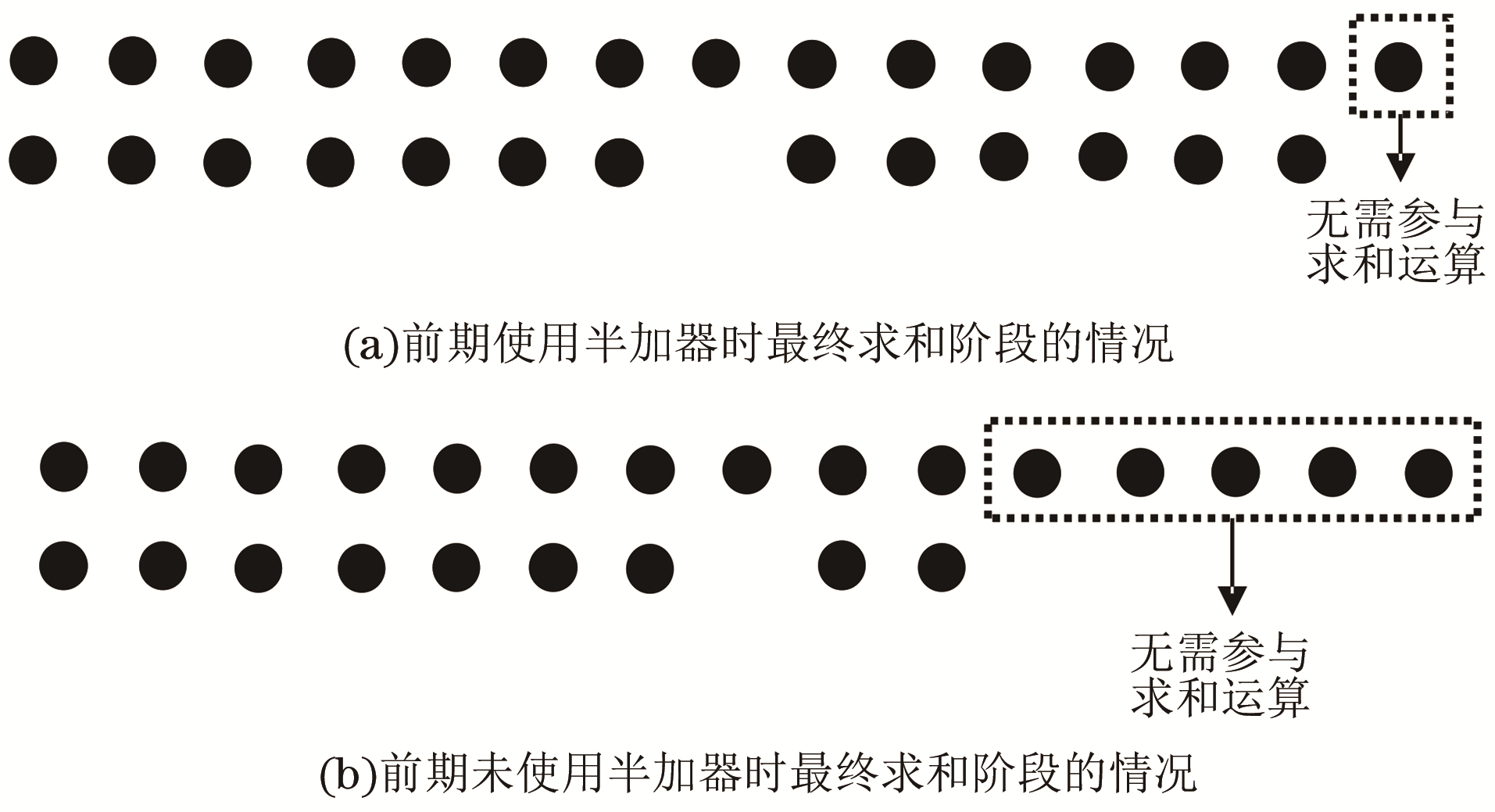

Fig.6 Comparison diagram of the final summation stage with and without using half adders

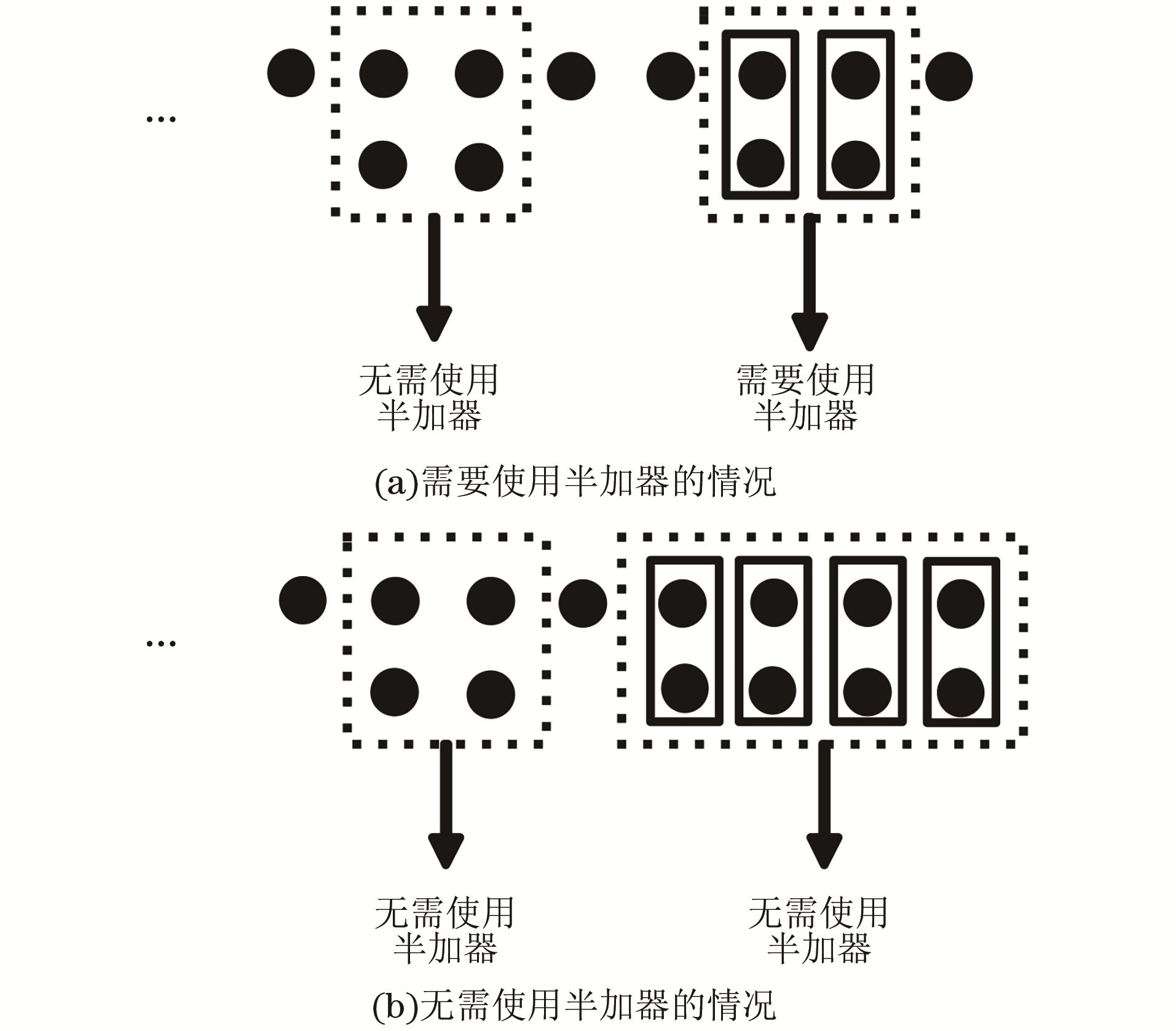

Fig.7 Scenarios without and with using half adders

Fig.8 Diagram of the modular design of a 16 bit mantissa multiplier

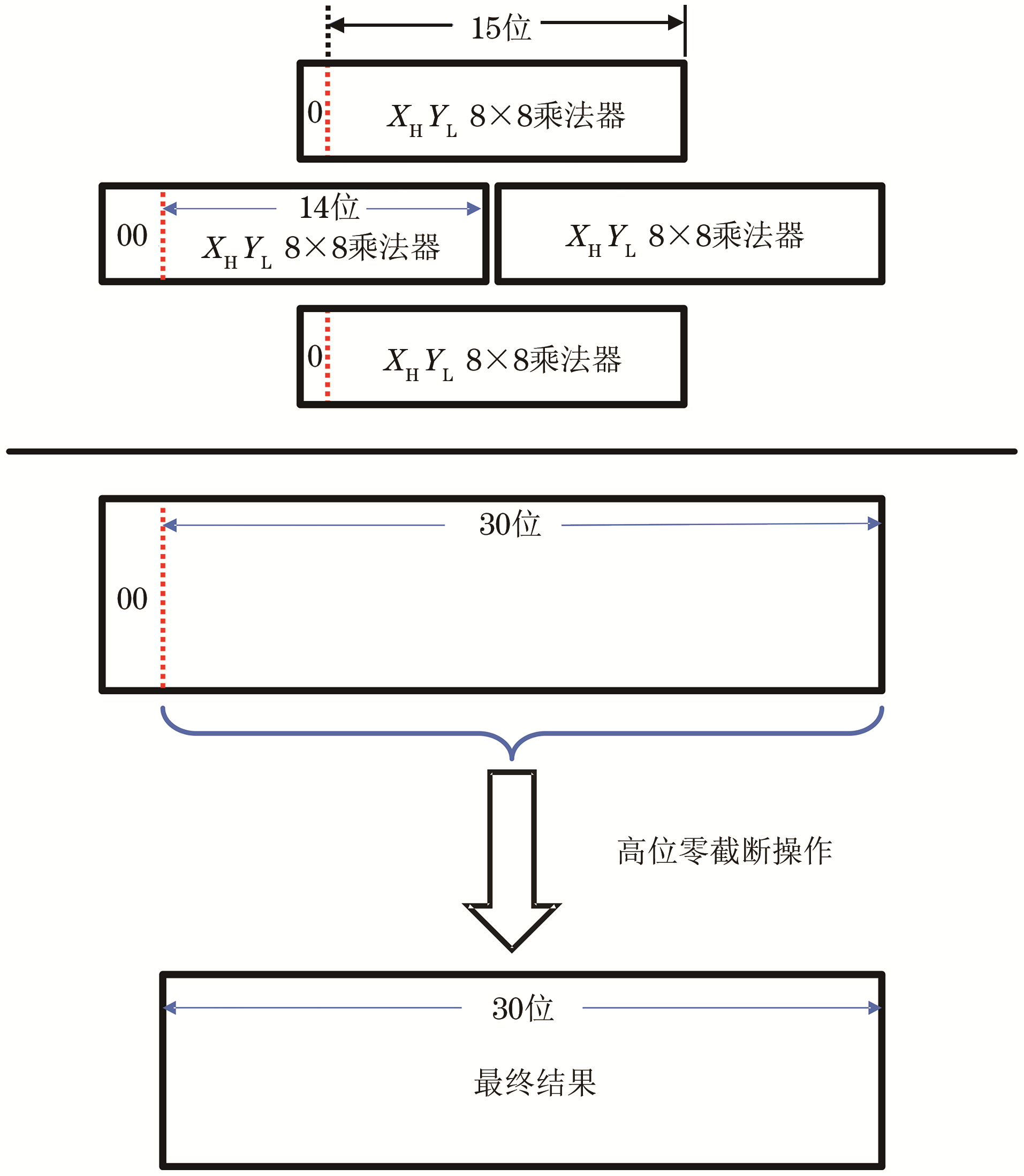

Fig.9 Diagram of the Modular design of a 15 bit mantissa multiplier

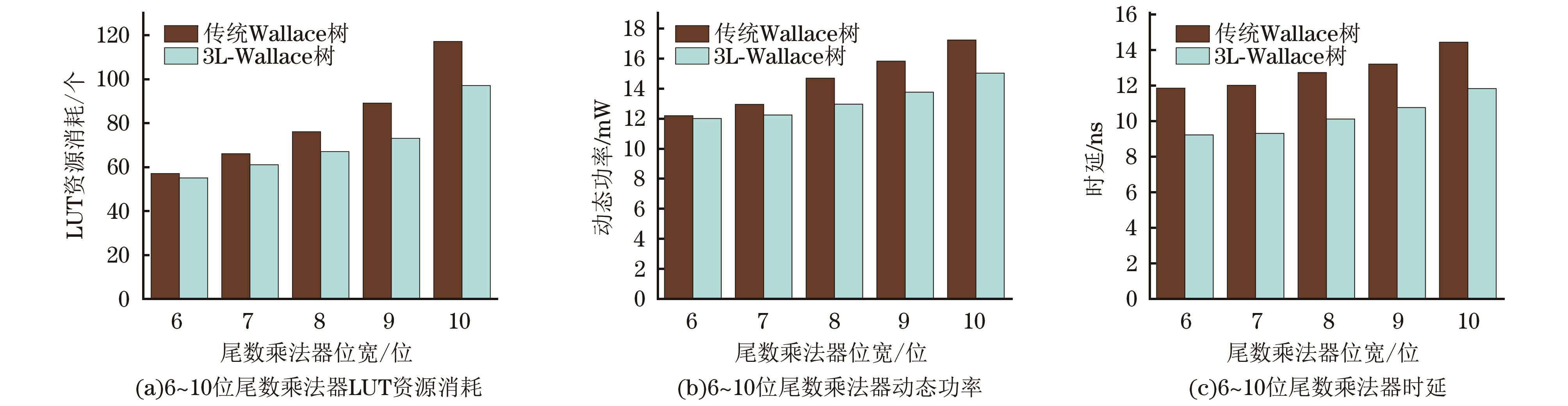

Fig.10 Synthesis results of 6 to 10 bit mantissa multipliers

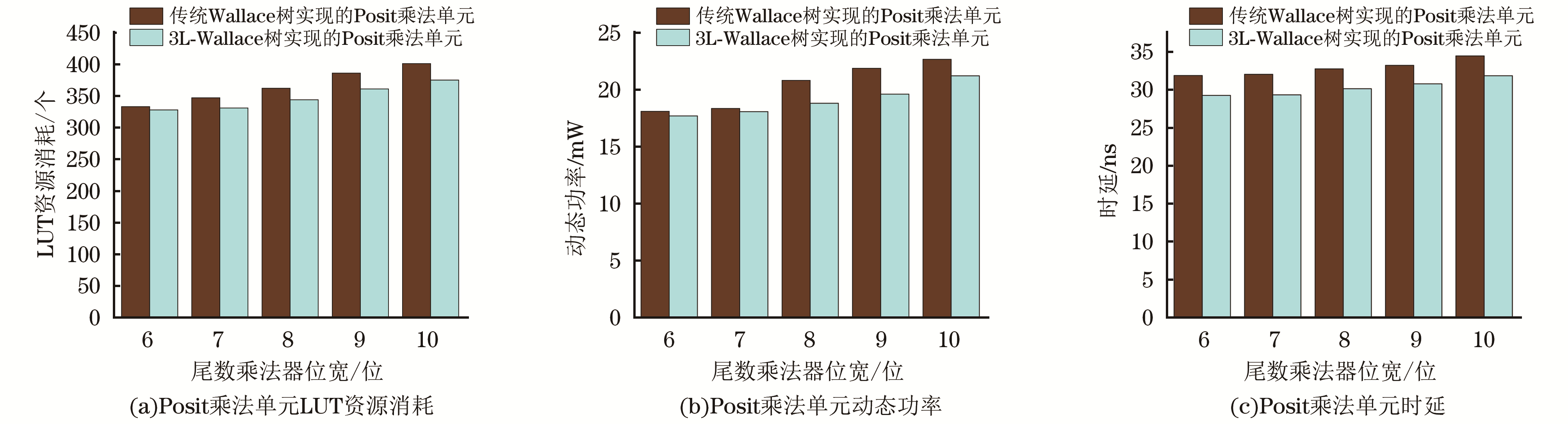

Fig.11 Synthesis results of posit multiplication units implemented with 6 to 10 bit mantissa multipliers

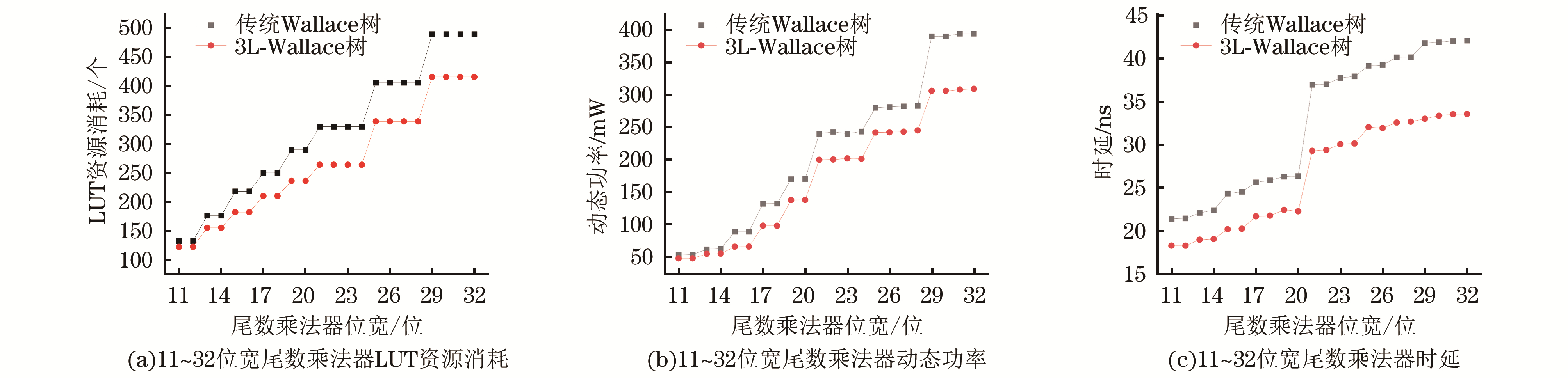

Fig.12 Synthesis results of 11 to 32 bit mantissa multipliers
