基于SAE-GA-SVM模型的雷达新型干扰识别

doi:10.19678/j.issn.1000-3428.0054730

摘要/Abstract

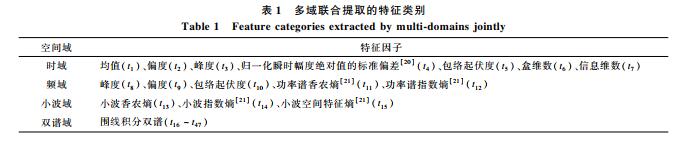

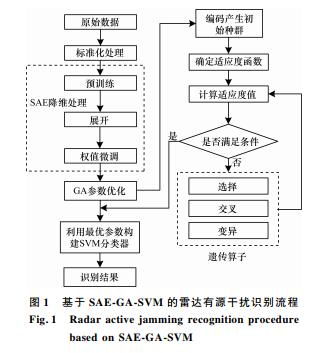

摘要： 针对频谱弥散干扰、切片组合干扰、灵巧噪声干扰、噪声调幅-距离欺骗加性复合干扰与噪声调频-距离欺骗加性复合干扰5种干扰类型的识别问题，提出一种基于SAE-GA-SVM的检测模型算法。建立目标回波与干扰信号的数学模型，采用多域联合的特征提取方法提取47维特征。为有效去除冗余信息并保持较高的识别率，运用深度学习中的稀疏自编码器（SAE），通过SAE结构建立高维空间和低维空间的双向映射，从而获得原始数据的相应最优低维表示。利用遗传算法优化支持向量机的惩罚因子和核函数参数，构建基于SAE-GA-SVM的雷达新型干扰识别检测模型。仿真结果表明，该模型能够有效降低特征维度，相比传统的GA-SVM检测模型识别准确率提高10%。

关键词: 新型干扰, 特征提取, 特征降维, 堆叠自编码器, 遗传算法

Abstract: Aiming at the identification problems that Smeared Spectrum(SMSP),Chopping and Interleaving(C&I),smart noise jamming,the composite jamming of noise amplitude modulation and noise range deception,and the composite jamming of noise frequency modulation and noise range deception.This paper proposes a SAE-GA-SVM-based identification model algorithm,which can identify.The algorithm constructs a mathematical model for target echo and jamming signals,employing a multi-domain joint feature extraction method to extract the 47-dimensional features.In order to effectively remove redundant data and maintain a high identification rate,the Stacked Auto-Encoder(SAE) algorithm in deep learning is adopted.By using the SAE structure,a mutual mapping between high-dimensional space and low-dimensional space is constructed to obtain the corresponding optimal low-dimensional representation of raw data.Then the Genetic Algorithm(GA) is used to optimize the penalty factor and kernel function parameters of Support Vector Machine(SVM),and on this basis the SAE-GA-SVM-based model for new radar jamming identification is established.Simulation results show that the proposed model can effectively reduce the feature dimension,and its classification accuracy is 10% higher than that of the traditional detection models.

Key words: new jamming, feature extraction, feature dimension reduction, Stacked Auto-Encoder(SAE), Genetic Algorithm(GA)

中图分类号:

TN974

罗彬珅, 刘利民, 董健, 刘璟麒. 基于SAE-GA-SVM模型的雷达新型干扰识别[J]. 计算机工程, 2020, 46(6): 281-287.

LUO Binshen, LIU Limin, DONG Jian, LIU Jingqi. Radar New Jamming Identification Based on SAE-GA-SVM Model[J]. Computer Engineering, 2020, 46(6): 281-287.

https://www.ecice06.com/CN/Y2020/V46/I6/281

图/表 8

20200617091711

20200617091714

20200617091717

20200617091720

20200617091723

20200617091726

20200617091729

20200617091732

参考文献

[1] RAO G N,SASTRY C V S,DICAKAR N.Trends in electronic warfare[J].IETE Technical Review,2003,20(2):139-150.
[2] WALTZ E.Information warfare:principles and operations[M].[S.1.]:Artech House,Inc.,1998.
[3] ROOME S J.Digital radio frequency memory[J].Electronics and Communications Engineering Journal,1990,2(4):147-153.
[4] YANG Shaoqi,TIAN Bo,ZHOU Ruizhao.A jamming identification method against radar deception based on bispectrum analysis and fractal dimension[J].Journal of Xi'an Jiaotong University,2016,50(12):128-135.(in Chinese)杨少奇,田波,周瑞钊.应用双谱分析和分形维数的雷达欺骗干扰识别[J].西安交通大学学报,2016,50(12):128-135.
[5] YU Haitao,WANG Yingmin,XIE Zhanlin,et al.Feature extraction and classification based on bispectrum for underwater targets[C]//Proceedings of 2010 International Conference on Intelligent System Design and Engineering Application.Changsha,China:[s.n.],2010:742-745.
[6] RUAN Huailin,YANG Xingyu.Radar active deception identification method based on stacked sparse autoencoder[J].Journal of Detection and Control,2018,40(4):62-67.(in Chinese)阮怀林,杨兴宇.基于栈式稀疏自编码器的有源欺骗干扰识别[J].探测与控制学报,2018,40(4):62-67.
[7] YAN Hai,LI Guohui,LI Jianxun.Signal feature extraction methods of radar anti-deception jamming[J].Journal of University of Electronic Science and Technology of China,2015,44(1):50-54.(in Chinese)闫海,李国辉,李建勋.雷达抗欺骗式干扰信号特征提取方法[J].电子科技大学学报,2015,44(1):50-54.
[8] LIU Jianyang.Research on electronic interference recognition method based on time-frequency domain analysis[D].Chengdu:University of Electronic Science and Technology of China,2018.(in Chinese)刘建洋.基于时频域分析的电子干扰识别方法研究[D].成都:电子科技大学,2018.
[9] TAN Pengchao.Research on multi-dimensional feature extraction and recognition technology of radar active deception jamming[D].Chengdu:University of Electronic Science and Technology of China,2016.(in Chinese)檀鹏超.雷达有源欺骗干扰多维特征提取与识别技术研究[D].成都:电子科技大学,2016.
[10] XU Jing,HE Minghao,MAO Yan,et al.Radar emitter recognition method based on optimization algorithm and performance[J].Modern Radar,2014,36(10):33-37,42.(in Chinese)徐璟,何明浩,冒燕,等.基于优化算法的雷达辐射源信号识别方法及性能[J].现代雷达,2014,36(10):33-37,42.
[11] LIU Zhen,SUI Jinping,WEI Xizhang.The development and prospect of radar active jamming recognition[J].Journal of Signal Processing,2017,33(12):1593-1601.(in Chinese)刘振,隋金坪,魏玺章.雷达有源干扰识别技术研究现状与发展趋势[J].信号处理,2017,33(12):1593-1601.
[12] HINTON G E,SALAKHUTDINOV R R.Reducing the dimensionality of data with neural networks[J].Science,2006,313(28):504-507.
[13] HINTON G E,OSINDERO S.A fast learning algorithm for deep belief nets[J].Neural Computation,2006,18(7):1527-1554.
[14] HINTON G.A practical guide to training restricted boltzmann machines[J].Momentum,2010,9(1):926-947.
[15] VINCENT P,LAROCHELLE H,LAJOIE I,et al.Stacked denoising autoencoders:learning useful representations in a deep network with a local denoising criterion[J].Journal of Machine Learning Research,2010,11(12):3371-3408.
[16] CORINNA C,VLADIMIR V.Support-vectors networks[J].Machine Learning,1995,20:273-297.
[17] LI Xiaoyu,ZHANG Xinfeng,SHEN Lansun.A selection means on the parameter of radius basis function[J].Acta Electronica Sinica,2005,33(12):2459-2463.(in Chinese)李晓宇,张新峰,沈兰荪.一种确定径向基核函数参数的方法[J].电子学报,2005,33(12):2459-2463.
[18] ZIEGEL E.Genetic algorithms and engineering optimization[J].Technometrics,2002,44(1):95-95.
[19] CHANG C C.LIBSVM:a library for support vector machines[J].ACM Transactions on Intelligent Systems & Technology,2011,2(3):389-396.
[20] LI Na.Research on radar active interference classification and recognition method[D].Chengdu:University of Electronic Science and Technology of China,2017.(in Chinese)李娜.雷达有源干扰分类与识别方法研究[D].成都:电子科技大学,2017.
[21] LI Yibing,Ge Juan,LIN Yun.Modulation recognition using entropy features and SVM[J].Systems Engineering and Electronics,2012,34(8):1691-1695.(in Chinese)李一兵,葛娟,林云.基于熵特征和支持向量机的调制识别方法[J].系统工程与电子技术,2012,34(8):1691-1695.
[22] GAO Ni,GAO Ling,HE Yiyue,et al.A lightweight intrusion detection model based on autoencoder network with feature reduction[J].Acta Electronica Sinica,2017,45(3):730-739.(in Chinese)高妮,高岭,贺毅岳,等.基于自编码网络特征降维的轻量级入侵检测模型[J].电子学报,2017,45(3):730-739.
