基于压缩HMAC算法的传感器网络范围查询方法

doi:10.19678/j.issn.1000-3428.0062221

摘要/Abstract

摘要： 传统范围查询方法主要针对一维数据，在感知节点上传的信息较多，导致能耗较高。提出一种基于压缩HMAC算法的两层无线传感器网络多维数据范围查询方法。使用AES对称加密算法生成数据密文及加密索引链，运用反向0-1编码和压缩HMAC算法生成最值比较链，反向0-1编码不需额外进行数值化处理，压缩HMAC算法能够缩短HMAC编码长度，从而减少感知节点的发送数据，降低感知节点的能量消耗。在AliOS Things Developer Kit开发板和iTOP-4412核心板上对该方法进行实验，并从单个周期采集数据个数、感知节点数据位数和采集数据维数3个方面与CSRQ等方法进行能量消耗对比分析，结果表明，该方法能保持数据的完整性，且能量消耗更少。

关键词: 范围查询, 两层无线传感器网络, 隐私保护, 反向0-1编码, 压缩HMAC算法

Abstract: Traditional range query methods are mainly aimed at one-dimensional data, and require more uploaded information at perception nodes, resulting in high energy consumption.Therefore, a multi-dimensional data range query method for two-layer wireless sensor networks is proposed based on the compressed HMAC algorithm.This method employs the AES symmetric encryption algorithm to generate data ciphertext and encryption index chain.Then reverse 0-1 coding and the compressed HMAC algorithm are used to generate the maximum comparison chain.Reverse 0-1 coding does not need additional numerical processing, and the compressed HMAC algorithm effectively shortens the length of HMAC coding, so the sent data of perception nodes is reduced, which decreases the energy consumption of perception nodes.The method is tested on the AliOS Things Developer Kit development board and iTOP-4412 core board, and the energy consumption is compared with the CSRQ method in three aspects:the number of data collected in a single cycle, the number of perceived node data bits and the dimension of collected data.The results show that this method can maintain the integrity of data and reduce the energy consumption.

Key words: range query, two-layer Wireless Sensor Networks(WSN), privacy protection, reverse 0-1 encoding, compressed HMAC algorithm

中图分类号:

TP391

胡乔木, 邓昀. 基于压缩HMAC算法的传感器网络范围查询方法[J]. 计算机工程, 2021, 47(12): 200-208.

HU Qiaomu, DENG Yun. Range Query Method Based on Compressed HMAC Algorithm for Sensor Networks[J]. Computer Engineering, 2021, 47(12): 200-208.

https://www.ecice06.com/CN/Y2021/V47/I12/200

图/表 19

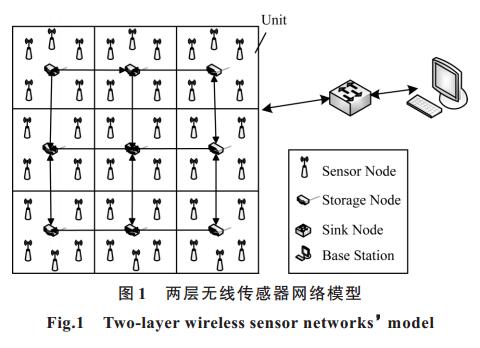

20211214181653

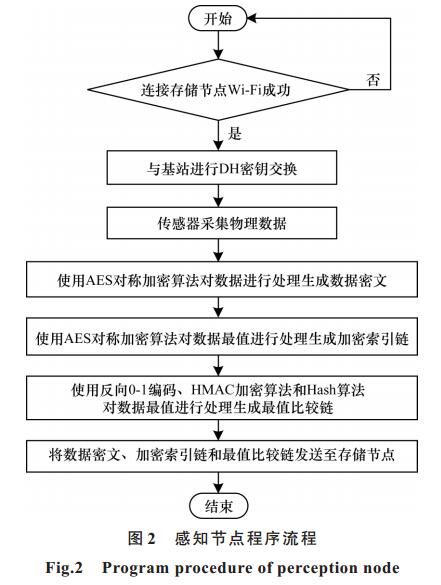

20211214181657

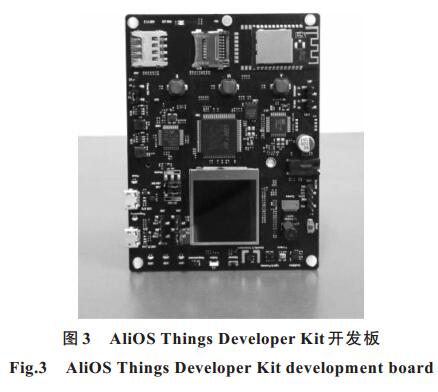

20211214181700

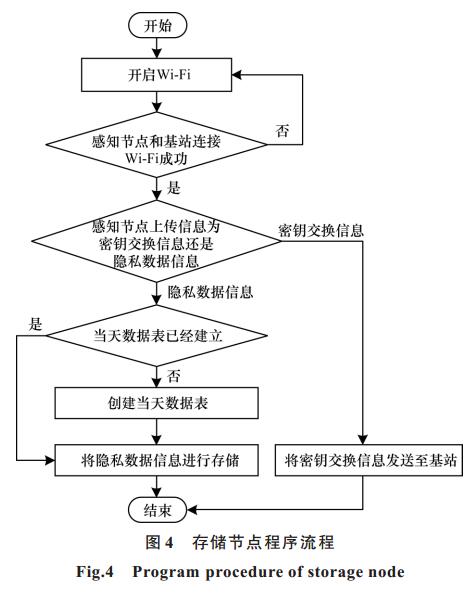

20211214181704

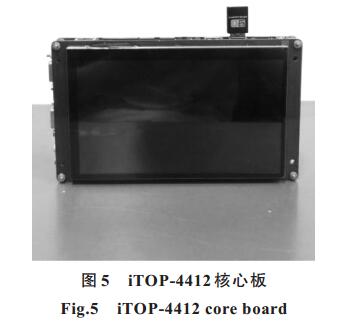

20211214181708

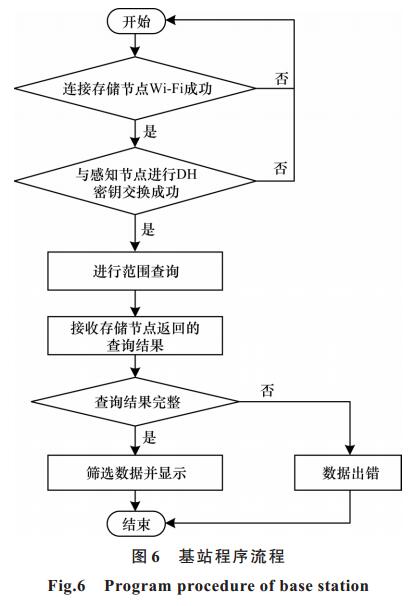

20211214181712

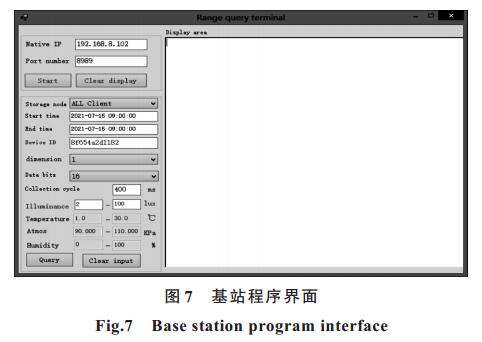

20211214181715

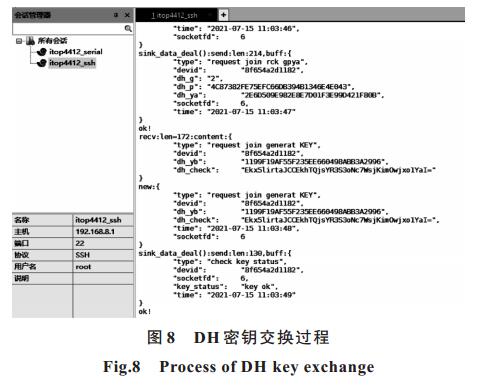

20211214181718

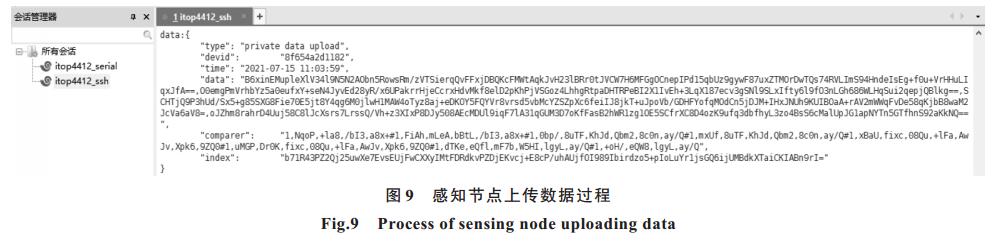

20211214181722

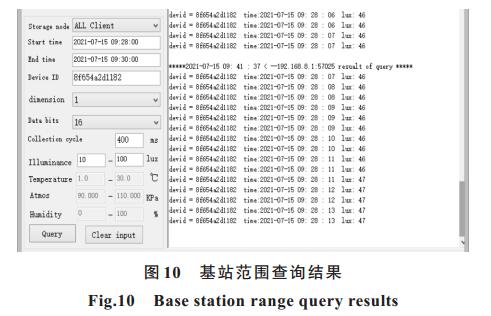

20211214181725

20211214181729

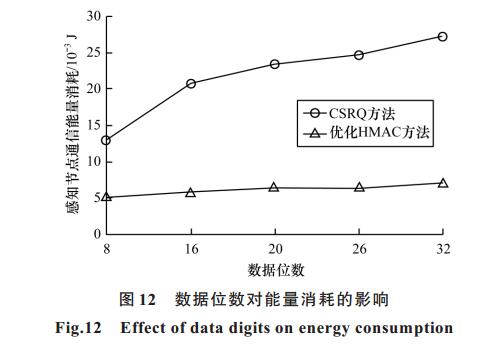

20211214181733

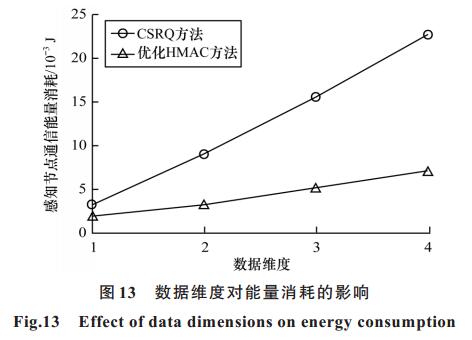

20211214181736

20211214181740

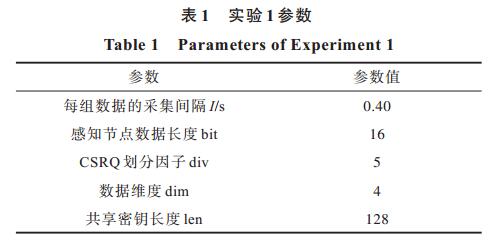

20211214181744

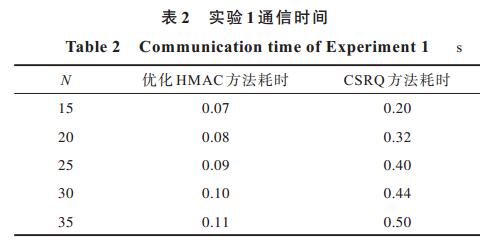

20211214181747

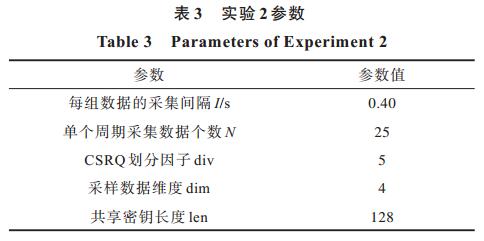

20211214181752

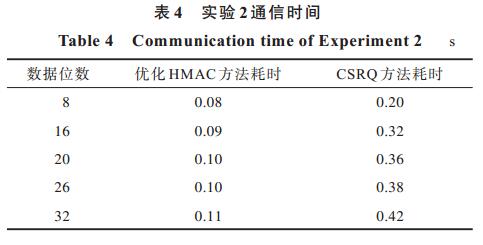

20211214181756

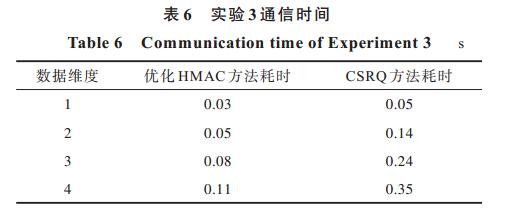

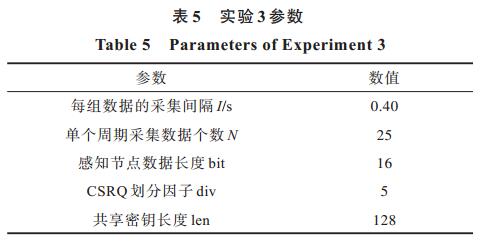

20211214181800

参考文献

[1] LOGANATHAN S, ARUMUGAM J.Energy efficient clustering algorithm based on particle swarm optimization technique for wireless sensor networks[J].Wireless Personal Communications, 2021, 119(1):815-843.
[2] KUMAR D A, AWADESH K S.I-FBECS:improved fuzzy based energy efficient clustering using biogeography based optimization in wireless sensor network[J].Transactions on Emerging Telecommunications Technologies, 2020, 32(2):235-246.
[3] HUY N N, KIM M K.Link quality estimation from burstiness distribution metric in industrial wireless sensor networks[J].Energies, 2020, 13(23):6430-6430.
[4] JASPREET S, RANJIT K, DAMANPREET S.A survey and taxonomy on energy management schemes in wireless sensor networks[J].Journal of Systems Architecture, 2020, 111:101-113.
[5] DEEPIKA A.Optimization of cluster heads through harmony search algorithm in wireless sensor networks[J].Journal of Intelligent & Fuzzy Systems, 2020, 39(6):8587-8597.
[6] 胡雨婷.物联网环境下可验证隐私保护多维数据查询研究[D].湘潭:湘潭大学, 2020. HU Y T.Research on verifiable privacy protection multidimensional data query in Internet of things[D].Xiangtan:Xiangtan University, 2020.(in Chinese)
[7] TSOU Y T, LU C S, KUO S Y.SER:Secure and efficient retrieval for anonymous range query in wireless sensor networks[J].Computer Communications, 2017, 108(1):1-16.
[8] LIANG J, JIANG C, MA X, et al.Secure data aggregation for top-k queries in tiered wireless sensor networks[J]. Adhoc & Sensor Wireless Networks, 2016, 32(2):51-78.
[9] 马行坡, 梁俊斌, 马文鹏, 等.面向双层传感网的安全Top-k查询协议[J].计算机研究与发展, 2018, 55(11):2490-2500. MA X P, LIANG J B, MA W P, et al.Secure top-k query protocol for double-layer sensor networks[J].Journal of Computer Research and Development, 2018, 55(11):2490-2500.(in Chinese)
[10] DAI H, WEI T, HUANG Y, et al.Random secure comparator selection based privacy-preserving MAX/MIN query processing in two-tiered sensor networks[J].Journal of Sensors, 2016(6):1-13.
[11] 王敏.面向无线传感器网络的安全MAX/MIN查询技术[D].南京:南京邮电大学, 2018. WANG M.Secure max/min query technology for Wireless Sensor Networks[D].Nanjing:Nanjing University of Posts and Telecommunications, 2018.(in Chinese)
[12] CHEN F, LIU A X.Privacy-and integrity-preserving range queries in sensor networks[J].IEEE/ACM Transactions on Networking, 2012, 20(6):1774-1787.
[13] 陈正宇, 戴华, 叶庆群, 等.两层WSN安全范围查询技术综述[J].计算机工程与应用, 2017, 53(19):26-32, 39. CHEN Z Y, DAI H, YE Q Q, et al.Overview of security range query technology in two-tier WSN[J].Computer Engineering and Applications, 2017, 53(19):26-32, 39.(in Chinese)
[14] DAI H, YE Q, YANG G, et al.CSRQ:communication-efficient secure range queries in two-tiered sensor networks[J].Sensors, 2016, 16(2):259.
[15] 戴华, 杨庚, 秦小麟, 等.面向隐私保护的两层传感网Top-k查询处理方法[J].计算机研究与发展, 2013, 50(6):1239-1252. DAI H, YANG G, QIN X L, et al.Top-k query processing method for two-layer sensor network for privacy protection[J].Journal of Computer Research and Development, 2013, 50(6):1239-1252.(in Chinese)
[16] KRAWCZYK H, CANETTI R, BELLARE M.HMAC:keyed-hashing for message authentication[EB/OL].[2021-06-10].http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.383.2086&rep=rep1&type=pdf.
[17] BERLIN M A.A HMAC algorithm based secure online transaction system using block chain technology[EB/OL].[2021-06-10].https://www.researchgate.net/publication/346769100.
[18] KHARE S K.Fast-track message authentication protocol for DSRC using HMAC and group keys[J].Applied Acoustics, 2020, 165(1):107-131.
[19] HARIKRISHNA B, KIRAN D S, DEEP K M.Network as a service model in cloud authentication by HMAC algorithm[J].International Journal of Advanced Networking and Applications, 2018, 9(6):458-467.
[20] SRINIVASAN S, SHIVAKUMAR K B, MUAZZAM M.HMAC-RSA:a security mechanism in cognitive radio for enhancing the security in a radio cognitive system[J].Journal of Intelligent & Fuzzy Systems, 2019, 36(5):4449-4459.
[21] HARBA E S I.Secure data encryption through a combination of AES, RSA and HMAC[J].Engineering, Technology & Applied Science Research, 2017, 7(4):1781-1785.
[22] 刘瑛琳.三端混合直流输电线路保护方法研究[D].北京:北京交通大学, 2019. LIU Y L.Research on protection method of three-terminal hybrid DC transmission line[D].Beijing:Beijing Jiaotong University, 2019.(in Chinese)
[23] 张友骞.含可再生能源发电的概率可用输电能力研究[D].贵阳:贵州大学, 2019. ZHANG Y Q.Research on probabilistic available transmission capacity of power generation with renewable energy[D].Guiyang:Guizhou University, 2019.(in Chinese)
