Remote Sensing Cloud Image Prediction Method Based on Multi-scale Motion Memory Model

doi:10.19678/j.issn.1000-3428.0069950

Abstract

Abstract:

Existing deep learning models find it difficult to capture cloud motion patterns, resulting in long-term cloud prediction results that are fuzzy and low in accuracy. To address this problem, this study proposes a remote sensing cloud image prediction method based on a Multi-Scale Motion Memory Network (MSMM_Net). This model adopts a dual-branch memory-flow architecture that combines spatial multi-scale and motion-differential memory flows. It extracts high- and low-frequency spatial features and sequence motion features hidden in the input image sequence, thereby simultaneously obtaining global, detail, and motion information of the image. In the prediction stage, dual-branch memory is fused to alleviate the problem of feature loss and enhance the ability of the model to predict the trajectory of cloud clusters. On this basis, a fusion loss function combining pixel and edge losses is used to guide model training, enhance the model's attention to image edge details, and promote the generation of clear predicted images. Experimental results show that, compared with the benchmark model PredRNN, MSMM_Net reduces the Mean Square Error (MSE) by 31.71% on the Moving MNIST dataset and the Learned Perceptual Image Patch Similarity (LPIPS) by 64.7%. On the remote sensing satellite cloud image dataset, the Peak Signal-to-Noise Ratio (PSNR) and Structural Similarity Index Measure (SSIM) indicators improve by 5.51% and 5.38%, respectively, indicating that the predicted image sequence generated by the model is more similar to the real image sequence and can effectively improve long-term prediction accuracy.

Key words: cloud image prediction, spatio-temporal sequence prediction, deep learning, recurrent convolutional network, remote sensing satellite

摘要：

针对现有深度学习模型难以捕获云团运动模式导致云图长期预测结果模糊、准确度低的问题, 提出一种基于多尺度运动记忆模型(MSMM_Net)的遥感云图预测方法。该模型采用空间多尺度记忆流和运动差分记忆流相融合的双分支记忆流架构, 分别提取输入图片序列隐含的高低频空间特征和序列运动特征, 从而同时获得图片的全局信息、细节信息和运动信息, 在预测阶段融合双分支记忆, 缓解特征丢失问题并增强模型对云团运动轨迹的预测能力。在此基础上, 使用像素损失和边缘损失相结合的融合损失函数指导模型的训练, 强化模型对图片边缘细节的关注度, 促使模型生成清晰的预测图片。实验结果表明, 与基准模型PredRNN相比, MSMM_Net在Moving MNIST数据集上的均方误差(MSE)降低了31.71%, 在可学习感知图像块相似性指标(LPIPS)上降低了64.7%, 在遥感卫星云图数据集上, 峰值信噪比(PSNR)和结构相似性指数(SSIM)指标分别提升了5.51%和5.38%, 表明该模型生成的预测图片序列与真实图片序列更加相似, 能够有效提升长期预测准确率。

关键词: 云图预测, 时空序列预测, 深度学习, 循环卷积网络, 遥感卫星

ZHANG Yonghong, SUN Shulin, GONG Meng, WANG Junfei, MA Guangyi. Remote Sensing Cloud Image Prediction Method Based on Multi-scale Motion Memory Model[J]. Computer Engineering, 2026, 52(3): 128-140.

张永宏, 孙书林, 龚蒙, 王俊飞, 马光义. 基于多尺度运动记忆模型的遥感云图预测方法[J]. 计算机工程, 2026, 52(3): 128-140.

/ Recommend / Download Citations

URL: https://www.ecice06.com/EN/10.19678/j.issn.1000-3428.0069950

https://www.ecice06.com/EN/Y2026/V52/I3/128

Figures/Tables 15

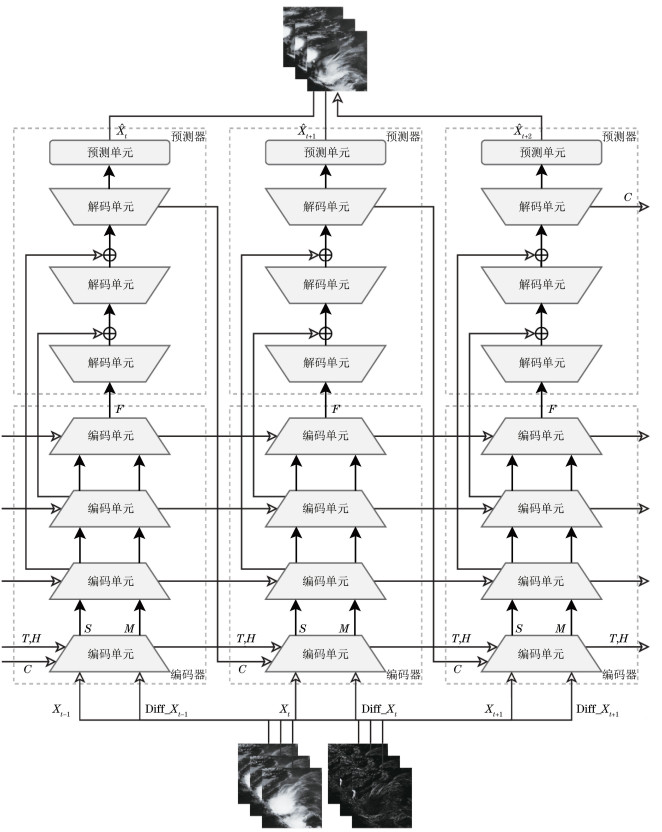

Fig.1 Overall structure of multi-scale motion memory network

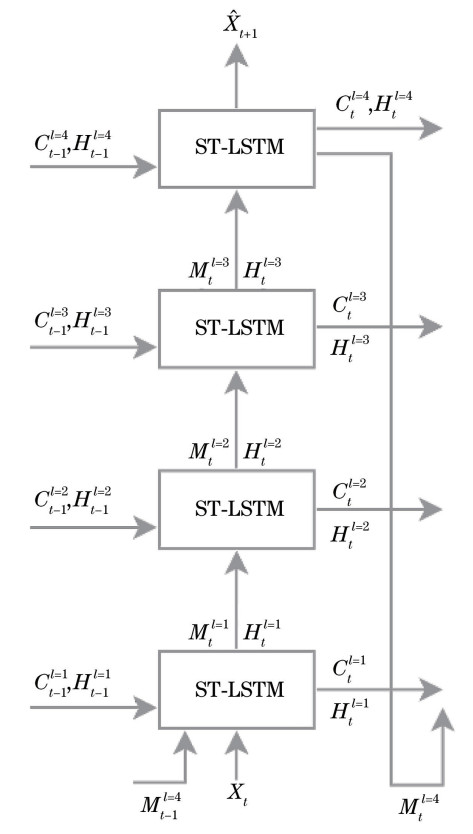

Fig.2 PredRNN network structure

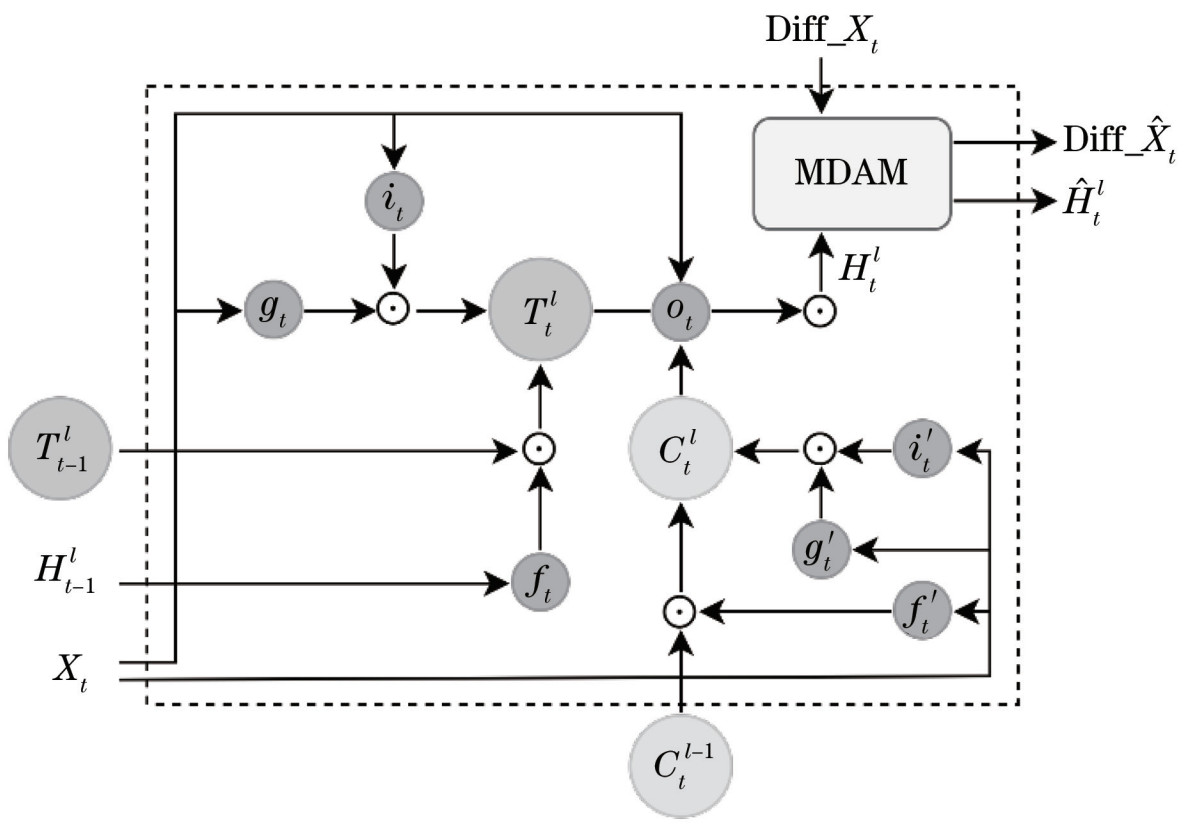

Fig.3 MDSTM structure

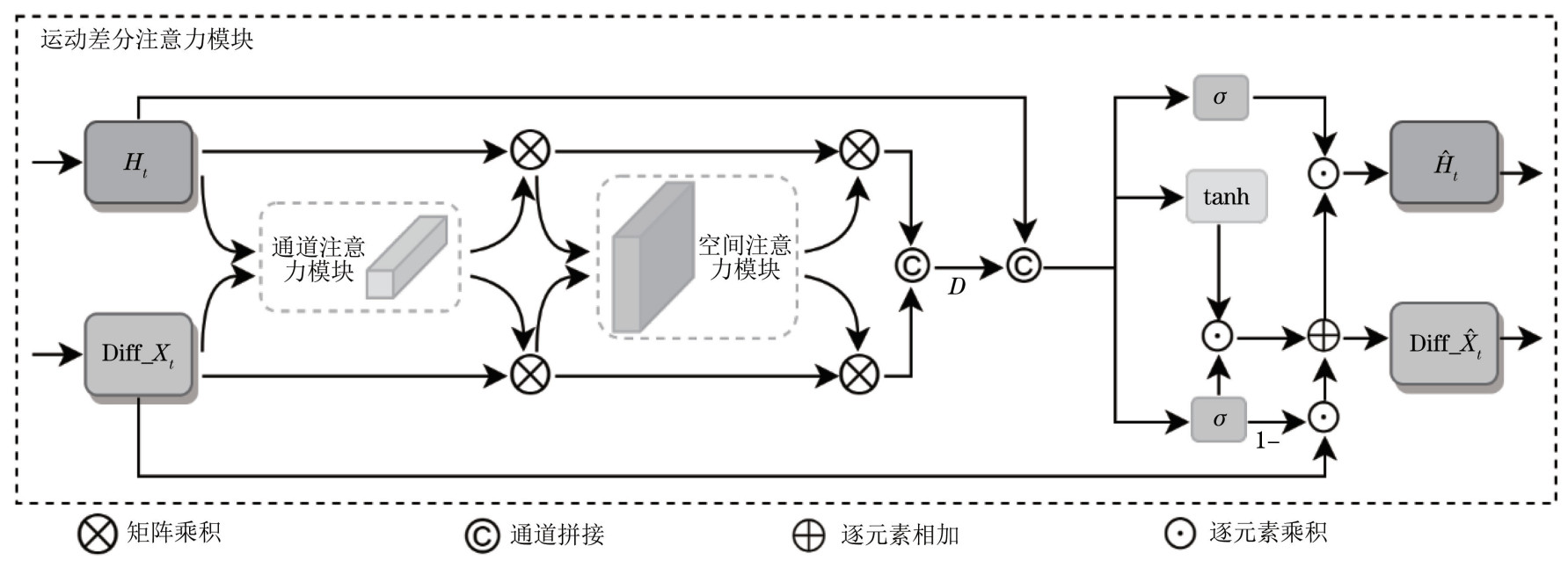

Fig.4 Motion difference attention module

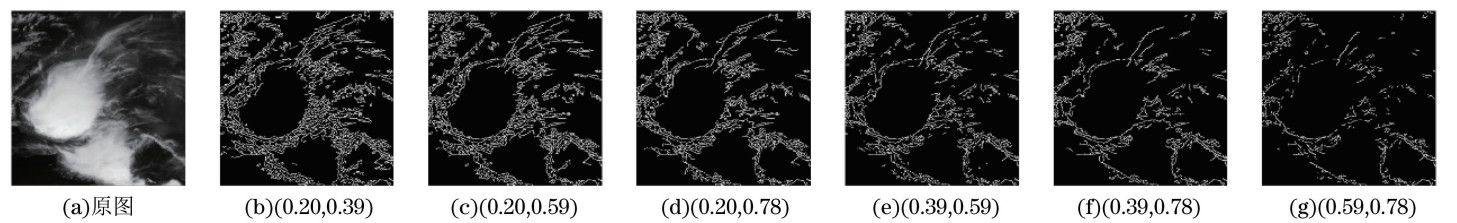

Fig.5 Comparison example of high and low threshold values for Canny edge detection algorithm

Fig.6 Example of Moving MNIST dataset

Fig.7 Example of the 13th band of GOES-16 satellite

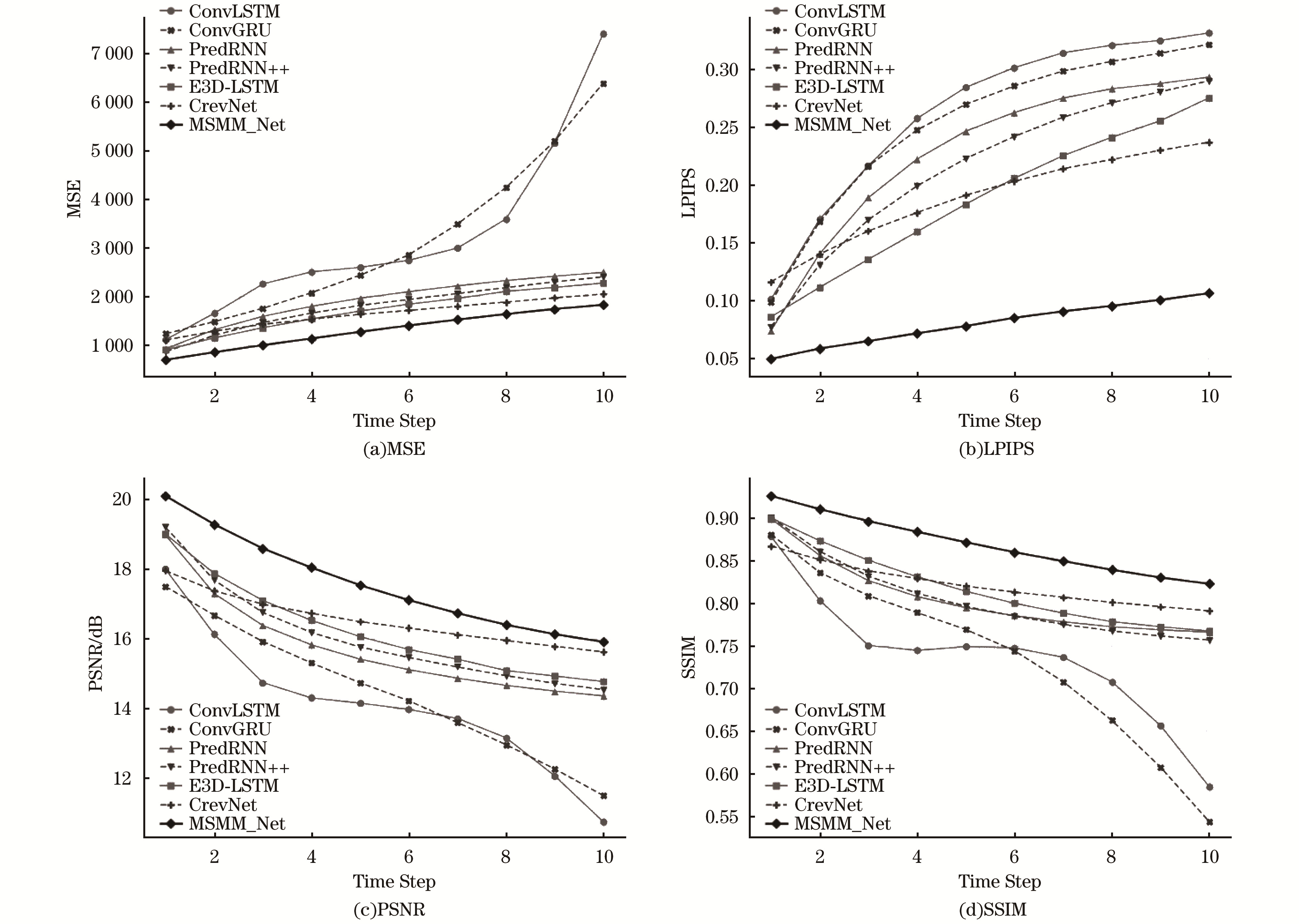

Fig.8 Trends in evaluation metrics on the Moving MNIST dataset

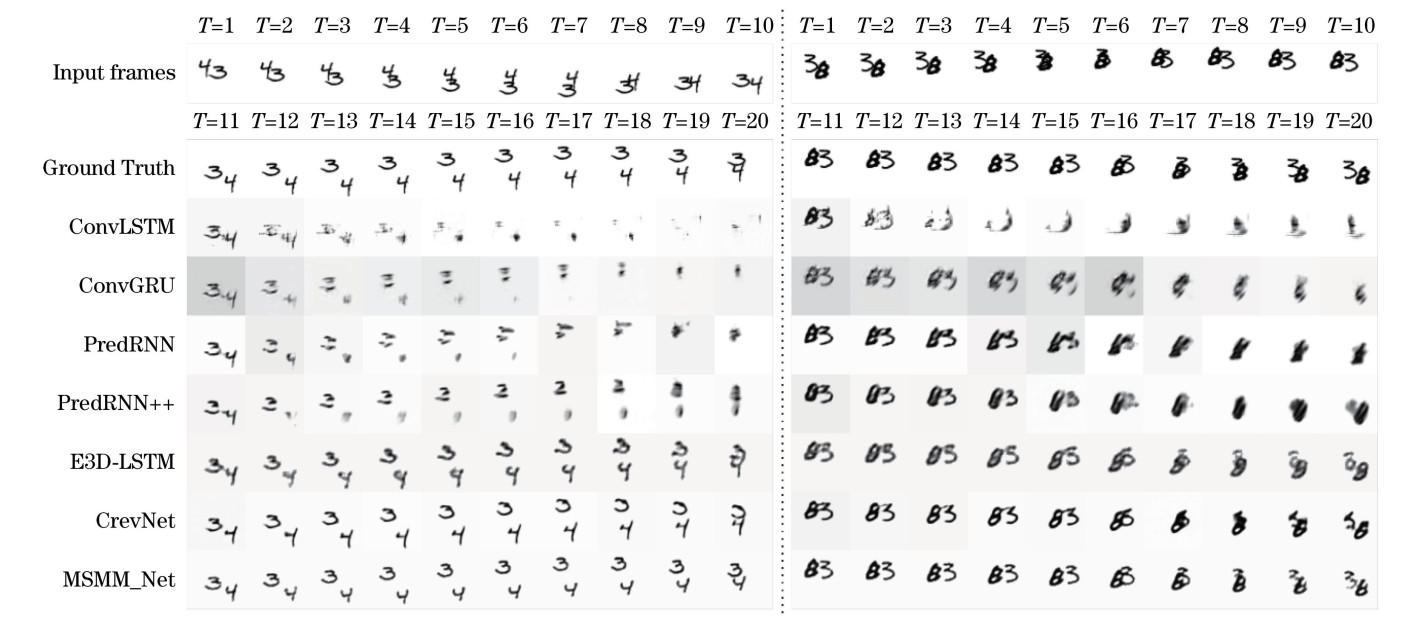

Fig.9 Comparison of prediction effect on the Moving MNIST dataset

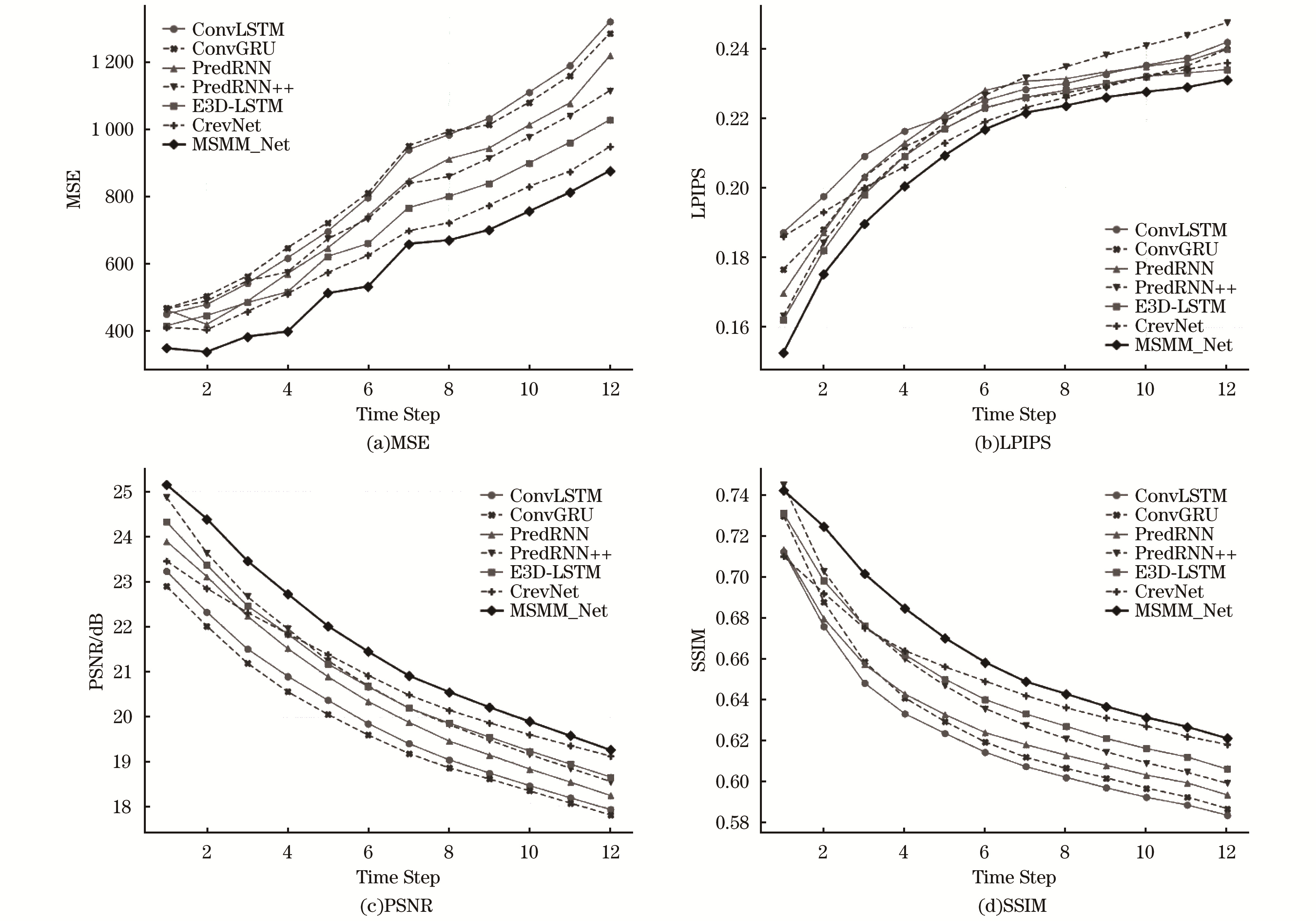

Fig.10 Trend of evaluation indicators on the GOES-16 dataset

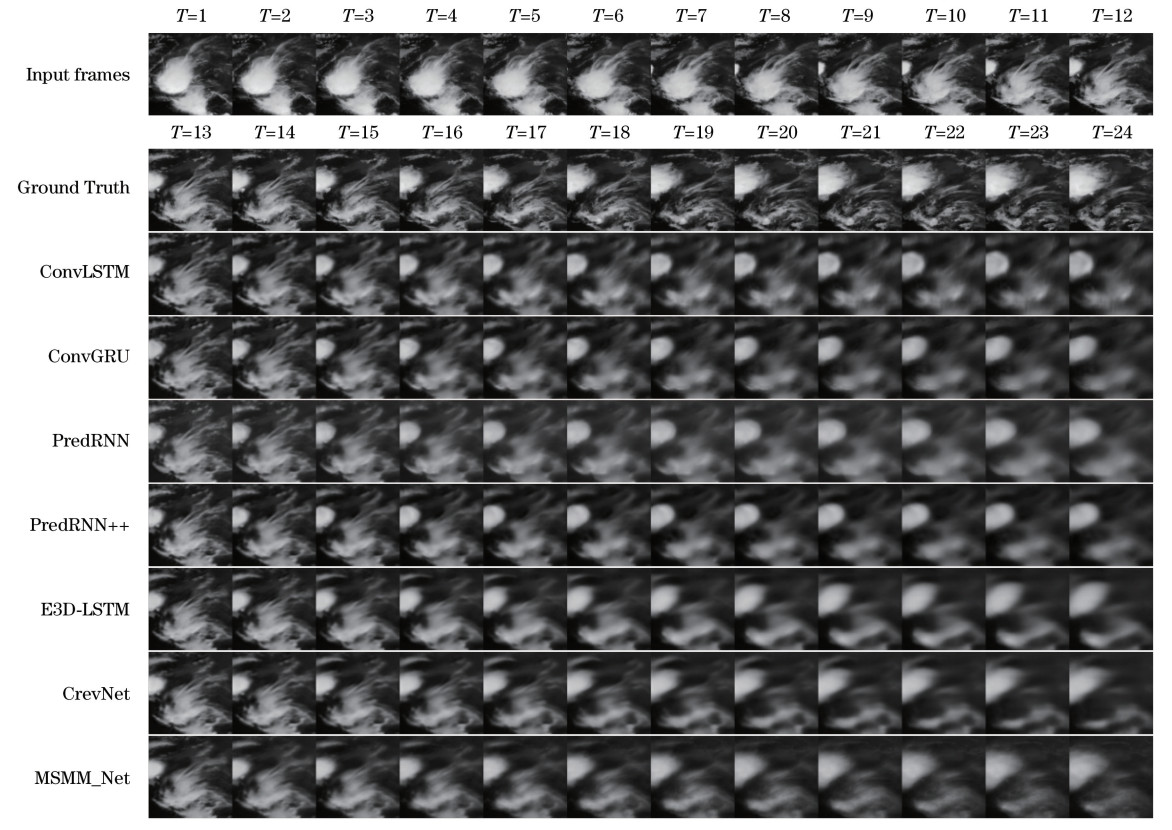

Fig.11 Comparison 1 of prediction effect of GOES-16 dataset

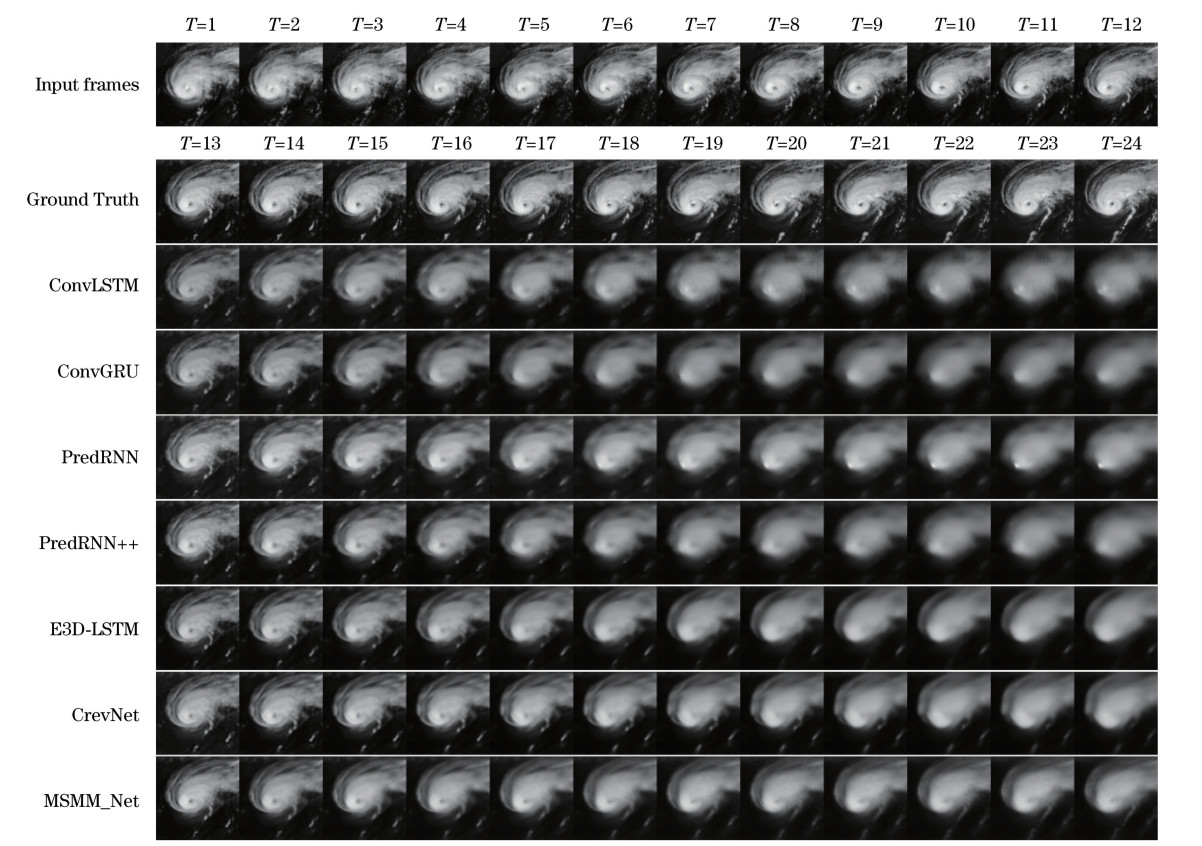

Fig.12 Comparison 2 of prediction effect of GOES-16 dataset
