3D Object Detection Algorithm Based on 4D Millimeter-Wave Radar and Vision Fusion

doi:10.19678/j.issn.1000-3428.0070113

Abstract

Abstract:

This study proposes a Common and Differential Cross-Attention Module-Bird's-Eye View (CDCAM-BEV) algorithm that combines 4D millimeter-wave radar and vision fusion to improve target detection accuracy for pedestrian and vehicle target recognition and localization in autonomous driving scenarios. First, a radar cylinder network is designed to encode the 4D radar point cloud into a pseudo image and convert the monocular image into a Bird's-Eye View (BEV) feature through Orthogonal Feature Transformation (OFT). Second, based on the cross-attention mechanism, a Common Information Extraction Module (CICAM) and a Differential Information Extraction Module (DICAM) are used to fully explore the common and differential information between radar and images. Finally, a BEV feature fusion module is designed based on CICAM and DICAM to achieve feature-level fusion of image and radar information in the BEV space. Experiments are conducted on the VOD dataset, and the CDCAM-BEV algorithm is compared with five other 3D object detection algorithms. The experimental results show that CDCAM-BEV achieves better detection performance in multiple modes. In the 3D mode, the average detection accuracy of CDCAM-BEV is 3.65 percentage points higher than that of the second ranked Part-A²; in the BEV mode, it is 5.04 percentage points higher than that of the second ranked PointPillars; in the Average Directional Similarity (AOS) mode, it is 2.62 percentage points higher than that of the second ranked Part-A². These results show that CDCAM-BEV exhibits excellent performance in all modes, effectively fusing images and 4D radar point cloud features, which significantly improves the accuracy and reliability of object detection.

Key words: 4D millimeter-wave radar, Bird's-Eye View (BEV), autonomous driving, cross attention mechanism, 3D object detection

摘要：

针对自动驾驶场景中行人和车辆的目标识别与定位问题, 提出一种四维(4D)毫米波雷达与视觉融合的CDCAM-BEV算法, 以提高目标检测的精度。首先, 设计雷达柱体网络, 将4D雷达点云编码为伪图像, 并通过正交特征变换(OFT)将单目图像转换为鸟瞰图(BEV)特征; 其次, 基于交叉注意力机制, 设计共同信息提取模块(CICAM)和差异信息提取模块(DICAM), 充分挖掘雷达和图像的公共信息和差异信息; 最后, 基于CICAM和DICAM设计BEV特征融合模块, 实现图像信息和雷达信息在BEV空间的特征级融合。在VOD数据集上进行实验, 将CDCAM-BEV算法与其他5种三维(3D)目标检测算法进行对比。实验结果表明, CDCAM-BEV在多个模式下检测性能均优于其他算法。在3D模式下, CDCAM-BEV的平均检测精度比排名第二的Part-A²高出3.65百分点; 在BEV模式下, 比排名第二的PointPillars高出5.04百分点; 在平均方向相似度(AOS)模式下, 比排名第二的Part-A²高出2.62百分点。结果显示, CDCAM-BEV在各模式下均表现出卓越性能, 能够有效融合图像和4D雷达点云特征, 显著提高目标检测的精度和可靠性。

关键词: 四维毫米波雷达, 鸟瞰图, 自动驾驶, 交叉注意力机制, 三维目标检测

LI Jianlang, WU Xindian, CHEN Ling, YANG Bo, TANG Wensheng. 3D Object Detection Algorithm Based on 4D Millimeter-Wave Radar and Vision Fusion[J]. Computer Engineering, 2026, 52(2): 299-310.

李健浪, 吴新电, 陈灵, 阳波, 唐文胜. 基于4D毫米波雷达与视觉融合的三维目标检测算法[J]. 计算机工程, 2026, 52(2): 299-310.

/ Recommend / Download Citations

URL: https://www.ecice06.com/EN/10.19678/j.issn.1000-3428.0070113

https://www.ecice06.com/EN/Y2026/V52/I2/299

Figures/Tables 15

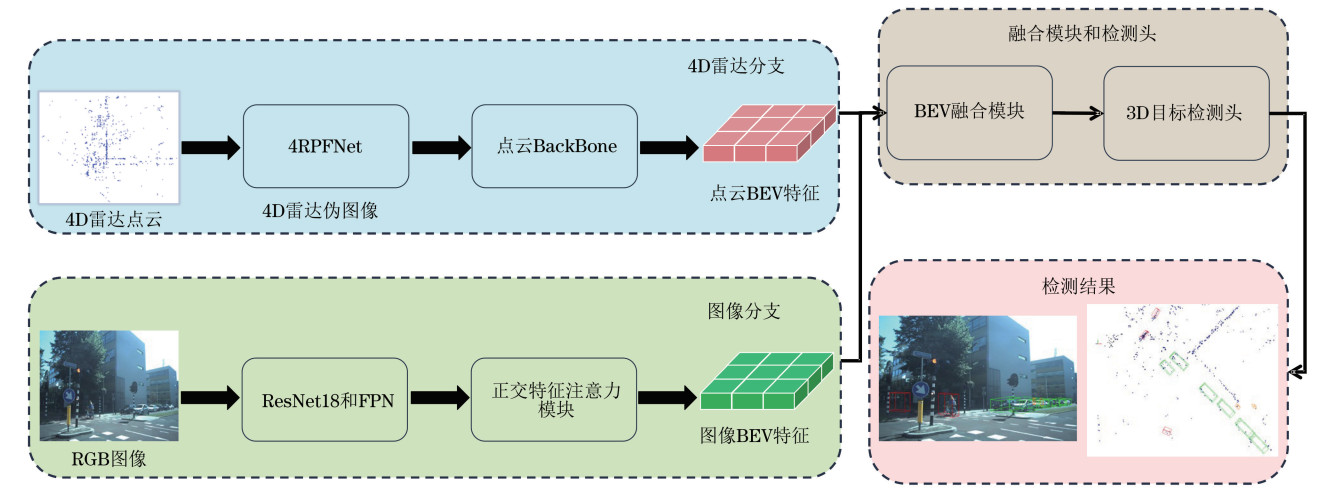

Fig.1 Overall structure of CDCAM-BEV

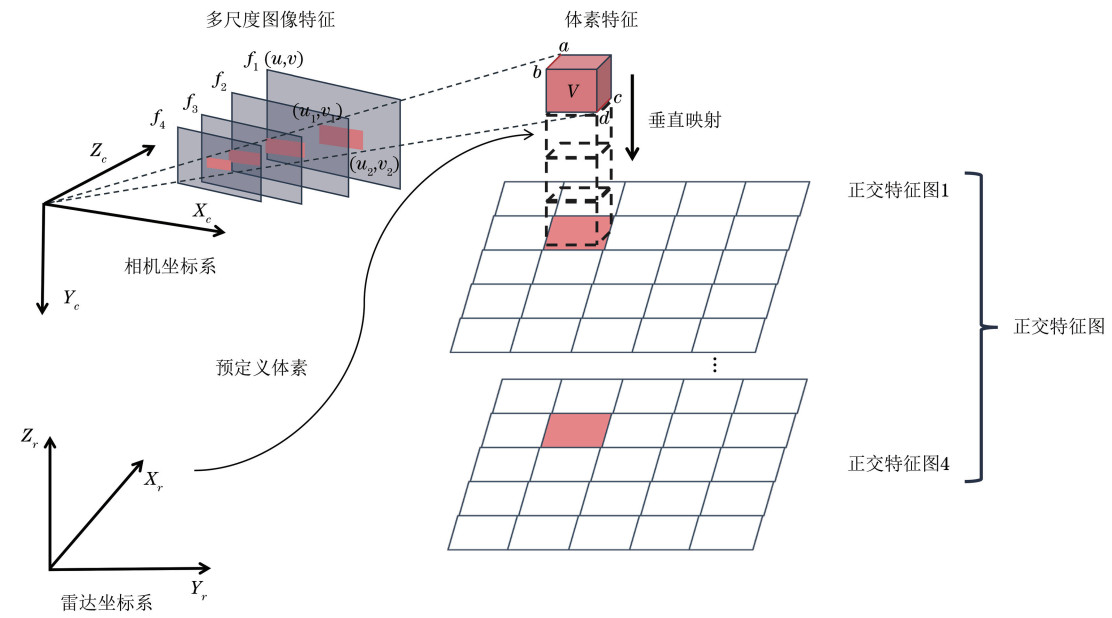

Fig.2 The process of generating orthogonal feature maps based on OFT

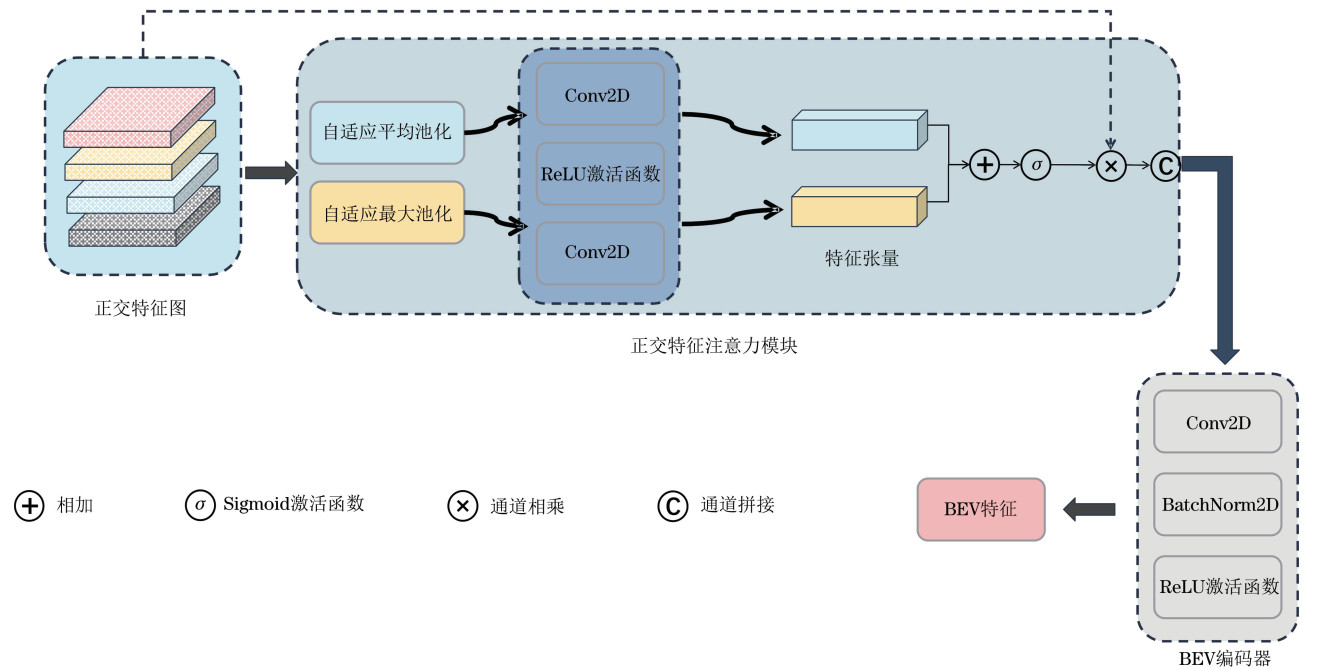

Fig.3 Image BEV feature coding module

Fig.4 4RPFNet structure

Fig.5 The structure of BEV feature fusion module

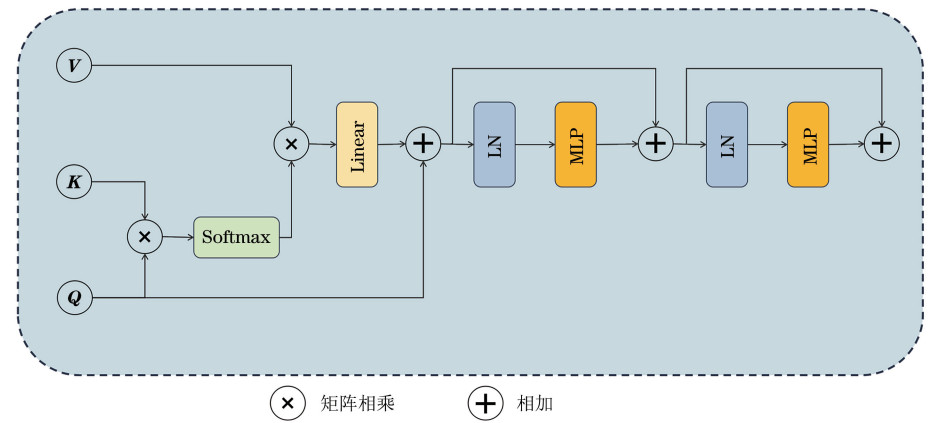

Fig.6 The structure of CICAM

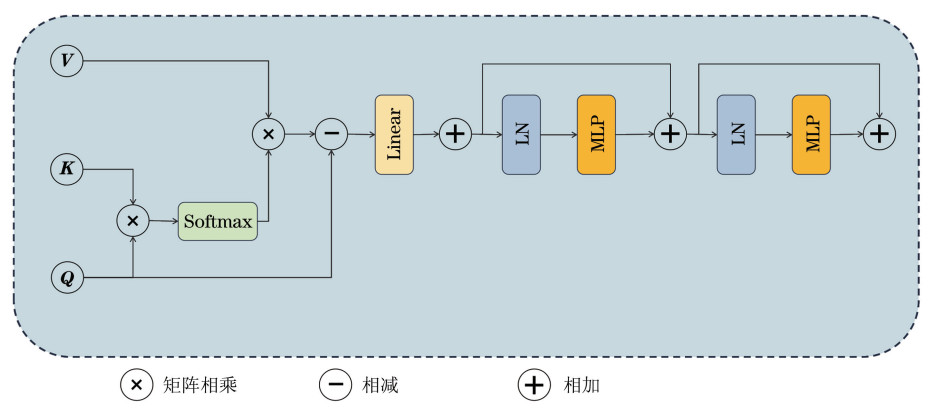

Fig.7 The structure of DICAM

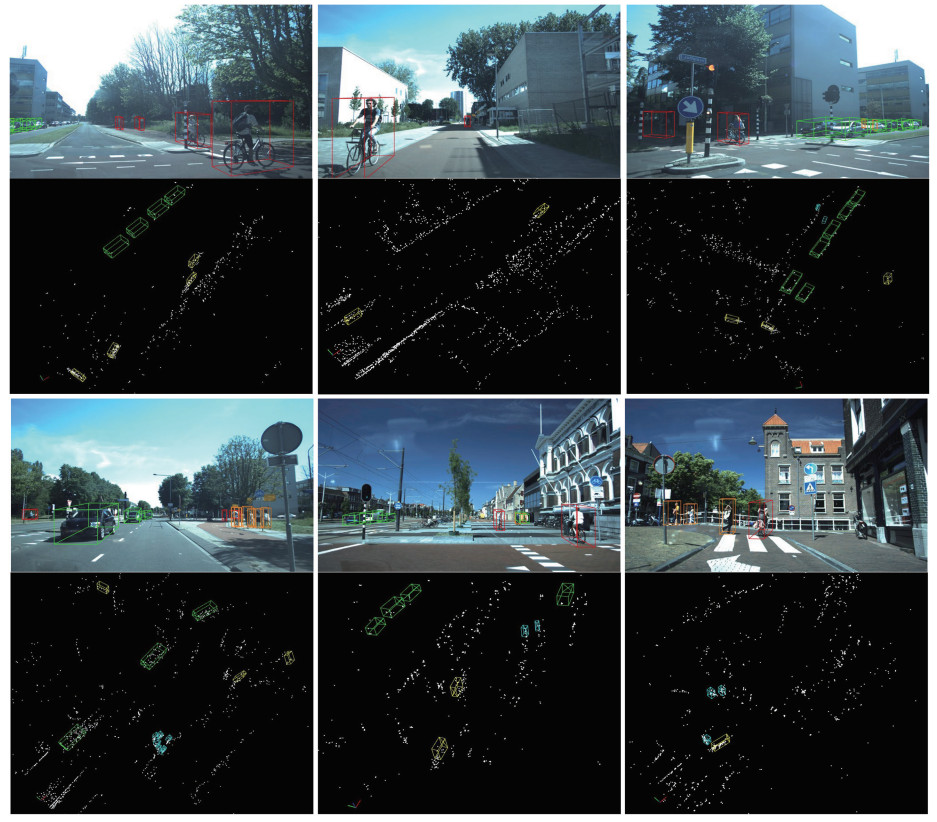

Fig.8 Experimental results of CDCAM-BEV on VOD dataset

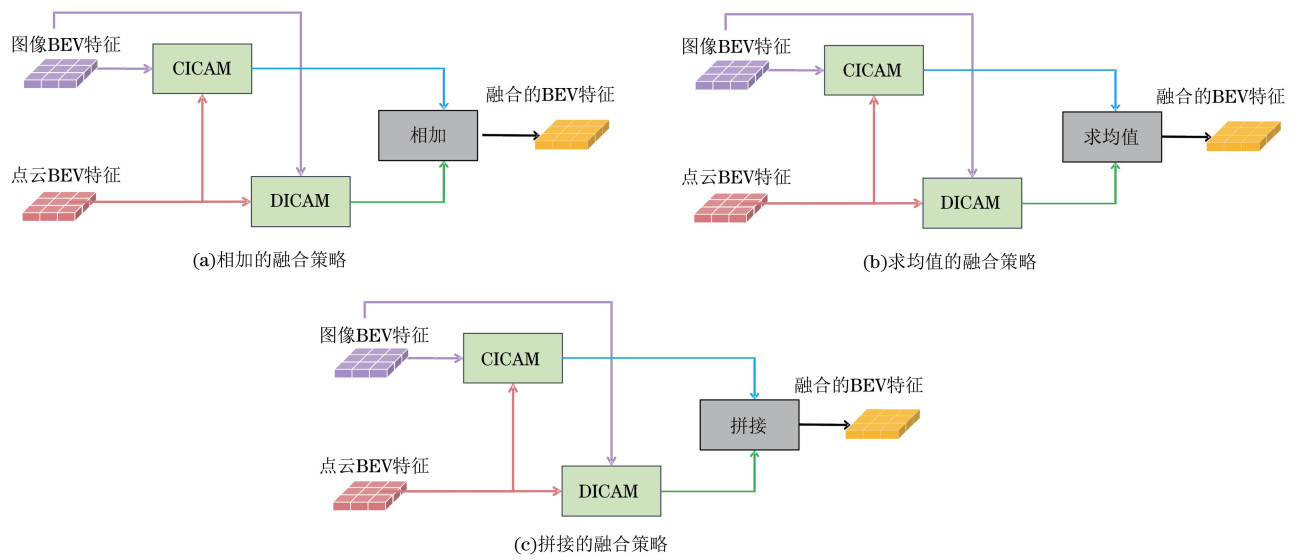

Fig.9 Comparison of different fusion strategies

References 32
