Diversity-induced Multi-view Subspace Clustering Algorithm with Grouping Effect

doi:10.19678/j.issn.1000-3428.0070348

Abstract

Abstract:

The multi-view subspace clustering algorithm, a type of multi-view clustering algorithm, emphasizes discovering potential subspaces in multi-view data and clustering based on these subspaces. The Multi-view Subspace Clustering algorithm with Grouping Effects (MvSCGE) is also a type of multi-view subspace clustering algorithm. The basic principle is to learn the subspace representation of each view through smooth regularization, while ensuring cross view consistency, and ultimately learning a consistent clustering index matrix. The clustering results are obtained after processing. However, this algorithm only considers the local structure of a single view and has certain limitations. To further explore the diversity between views, this paper proposes a Diversity-induced Multi-view Subspace Clustering algorithm with Grouping Effect (DiMvSCGE). It preserves the local structure of each view while using the Hilbert-Schmidt Independence Criterion (HSIC) to measure the diversity between views, and iteratively uses alternating direction minimization on this basis. Based on the clustering index matrix obtained after the iterations, k-means clustering is performed to obtain the final result. Comparative experiments with several advanced algorithms on four public datasets show that this algorithm offers advantages, such as low parameter sensitivity and fast convergence speed, and demonstrates good performance on different datasets.

Key words: multiple views, view grouping effect, subspace clustering, diversity induction, principle of complementarity

摘要：

多视图子空间聚类算法作为多视图聚类算法的一种, 强调在多视图数据中发现潜在的子空间, 从而基于子空间进行聚类。具有分组效应的多视图子空间聚类算法(MvSCGE)是一种多视图子空间聚类算法, 主要思想为通过光滑正则化来学习每个视图的子空间表示, 同时保证跨视图一致性, 并最终学习到一致的聚类指标矩阵, 处理后得出聚类结果。但是, 该算法只考虑到单个视图的局部结构, 仍存在一定局限性。为进一步挖掘视图间的多样性, 提出一种具有分组效应的多样性诱导多视图子空间聚类算法(DiMvSCGE)。该算法在保留每个视图局部结构的同时, 利用希尔伯特-施密特独立准则(HSIC)来衡量视图间的多样性, 并在此基础上使用交替方向最小化进行迭代, 在迭代后获得的聚类指标矩阵基础上, 进行k均值聚类, 得到最终的结果。在4个公共数据集上与几种先进算法的对比实验证明, 该算法拥有参数敏感度低、收敛速度快等优势, 且在不同数据集上都表现出了良好的性能。

关键词: 多视图, 视图分组效应, 子空间聚类, 多样性诱导, 互补性原则

ZHANG Yuechen, GE Hongwei, LI Ting. Diversity-induced Multi-view Subspace Clustering Algorithm with Grouping Effect[J]. Computer Engineering, 2026, 52(6): 96-108.

张悦辰, 葛洪伟, 李婷. 具有分组效应的多样性诱导多视图子空间聚类算法[J]. 计算机工程, 2026, 52(6): 96-108.

/ Recommend / Download Citations

URL: https://www.ecice06.com/EN/10.19678/j.issn.1000-3428.0070348

https://www.ecice06.com/EN/Y2026/V52/I6/96

Figures/Tables 11

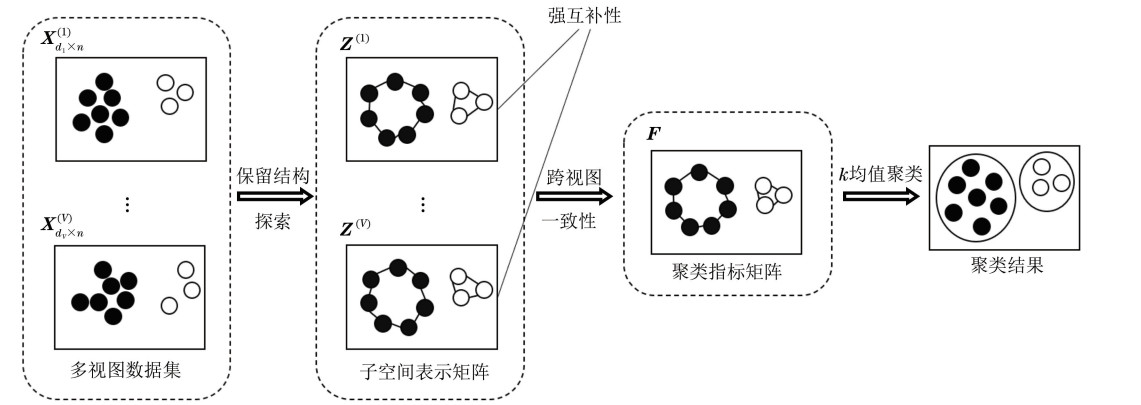

Fig.1 Structure diagram of DiMvSCGE algorithm

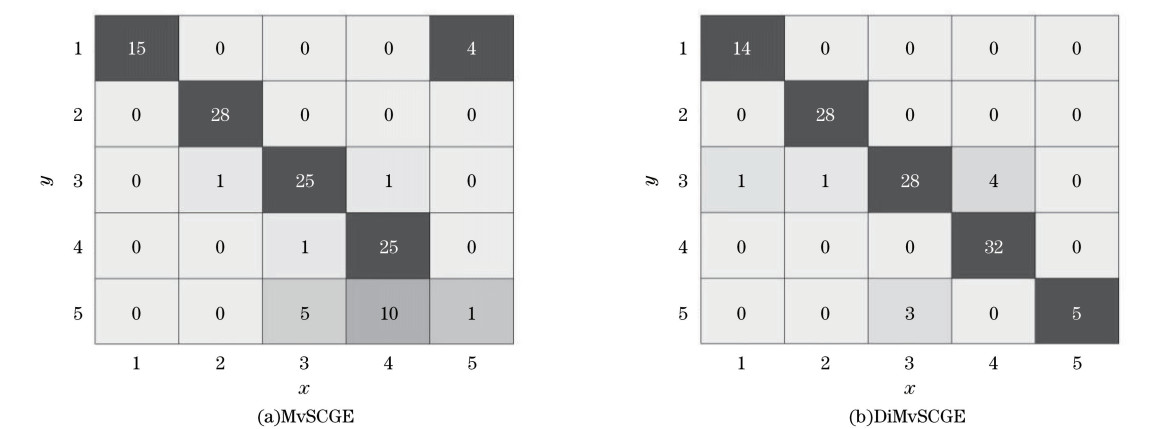

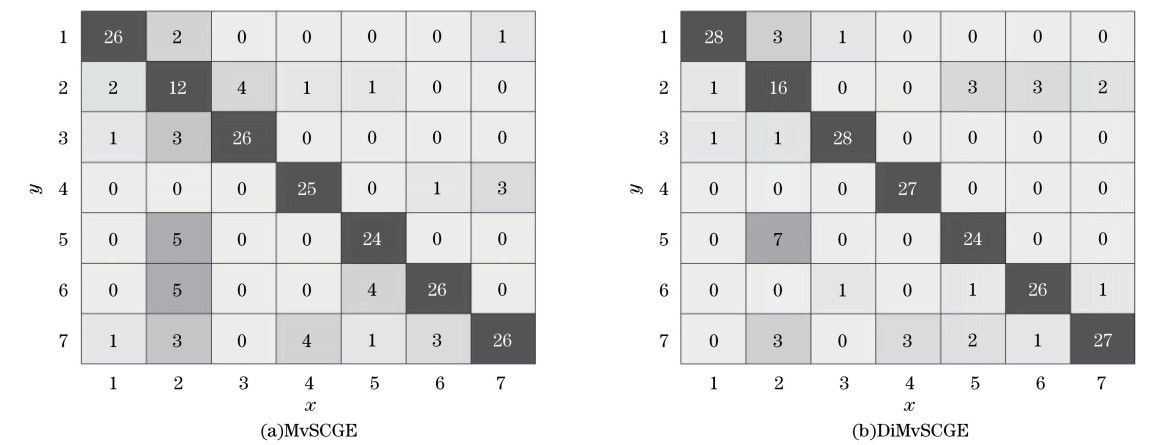

Fig.2 Comparison of adjacency matrix visualization graphs on MSRC-v5 dataset

Fig.3 Comparison of adjacency matrix visualization graphs on BBCSport dataset

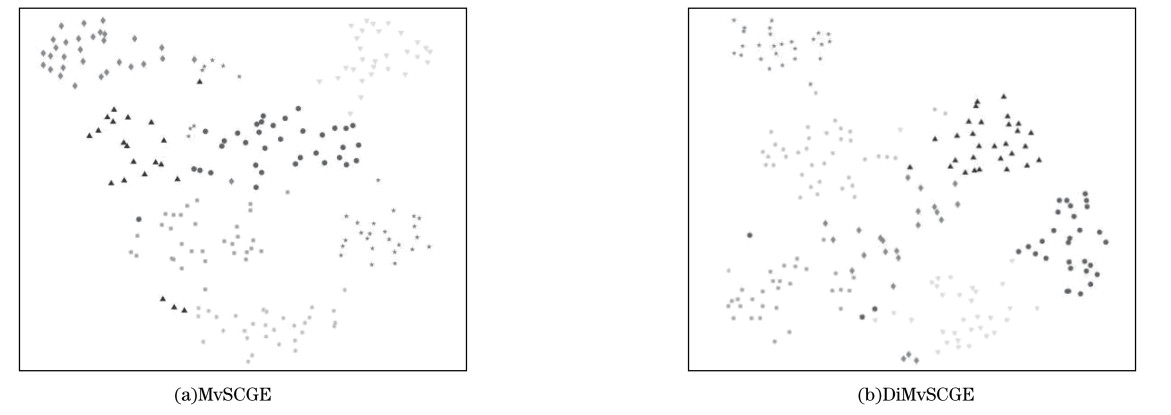

Fig.4 Scatter plot comparison of clustering results on MSRC-v5 dataset

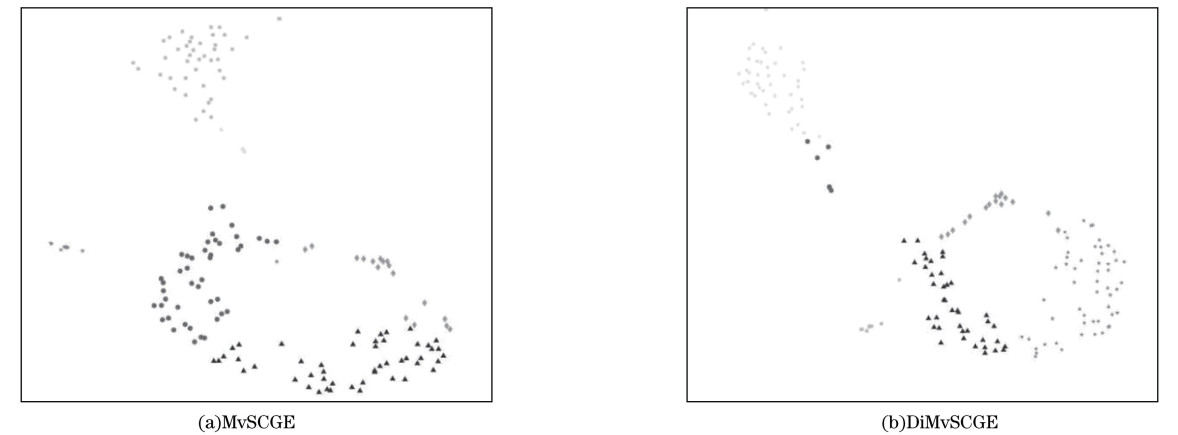

Fig.5 Scatter plot comparison of clustering results on 3Sources dataset

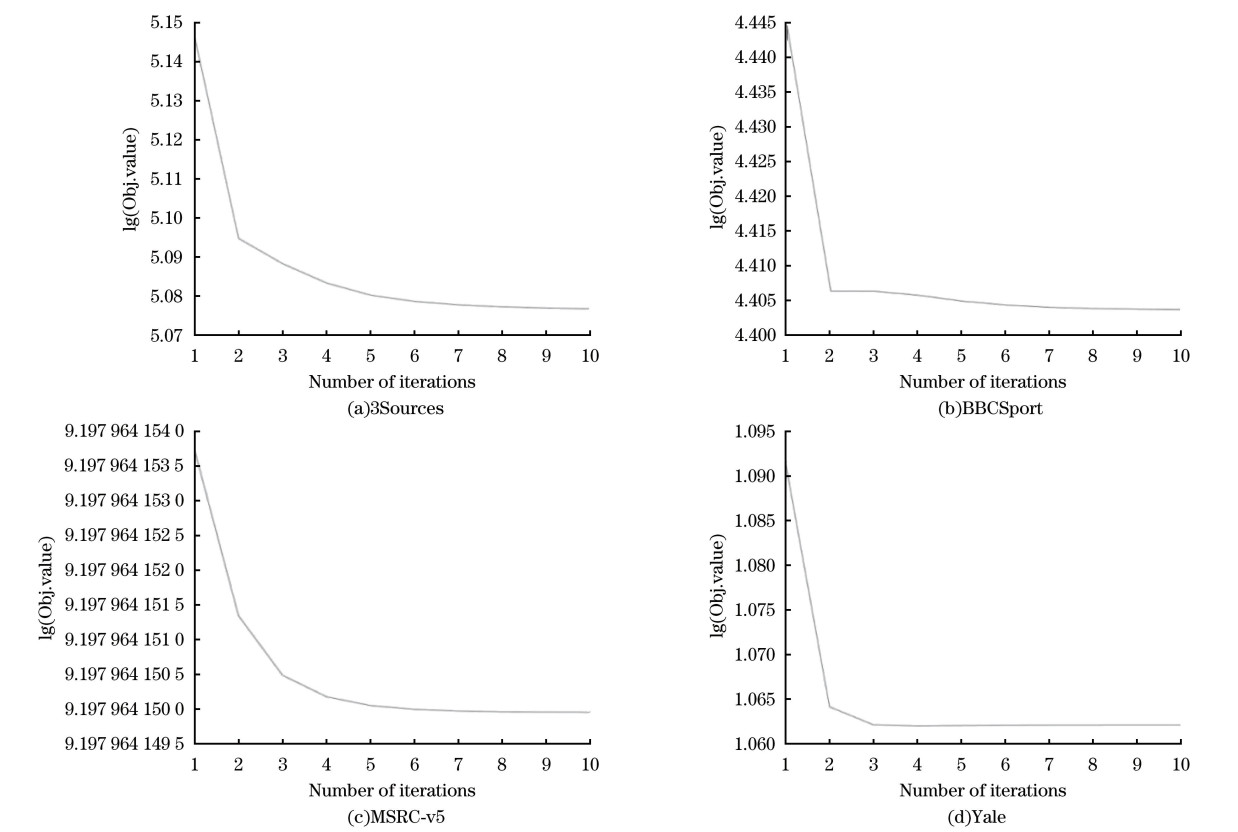

Fig.6 Convergence curves of DiMvSCGE on four benchmark datasets

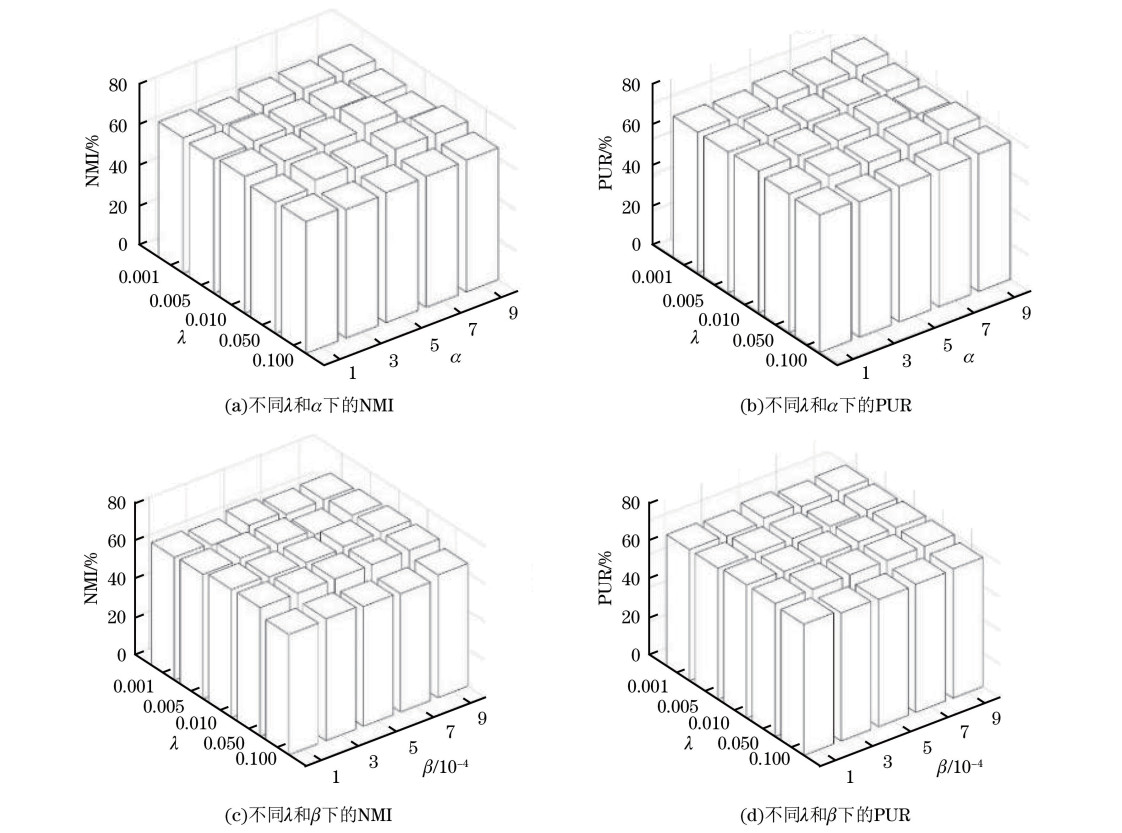

Fig.7 Clustering results of different parameter values on 3Sources dataset

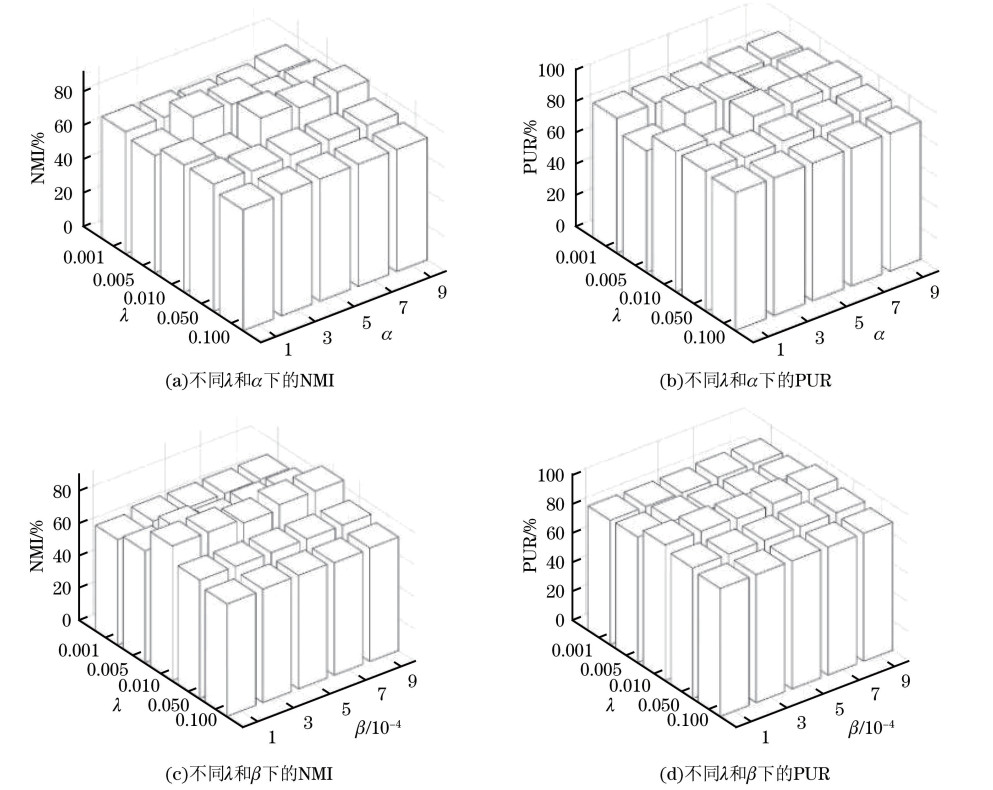

Fig.8 Clustering results of different parameter values on BBCSport dataset

References 32

1	张茹倩, 承楠, 陈文, 等. 6G业务场景的不完全多视图聚类分析. 西安电子科技大学学报, 2024, 51 (3): 76- 87.
	ZHANG R Q , CHENG N , CHEN W , et al. Incomplete multi-view clustering analysis of 6G business scenarios. Journal of Xidian University, 2024, 51 (3): 76- 87.
2	黄智濒, 傅广涛, 曹凌婧, 等. 基于多视图聚类算法的三维流场关键点附近的流线筛选. 计算机辅助设计与图形学学报, 2022, 34 (12): 1930- 1942.
	HUANG Z B , FU G T , CAO L J , et al. Streamline selection around critical points of 3D flow fields by the multi-view clustering. Journal of Computer-Aided Design & Computer Graphics, 2022, 34 (12): 1930- 1942.
3	胡素婷, 沈宗鑫, 黄倩倩, 等. 基于概念分解的显隐空间协同多视图聚类算法. 模式识别与人工智能, 2023, 36 (2): 160- 173.
	HU S T , SHEN Z X , HUANG Q Q , et al. Concept factorization-based collaborative multi-view clustering algorithm in visible and latent spaces. Pattern Recognition and Artificial Intelligence, 2023, 36 (2): 160- 173.
4	YE Y K, LIU X W, YIN J P, et al. Co-regularized kernel k-means for multi-view clustering[C]//Proceedings of the 23rd International Conference on Pattern Recognition. Cancun, Mexico: IEEE Press, 2016: 1583-1588.
5	CAI W L , ZHOU H H , XU L . A multi-view co-training clustering algorithm based on global and local structure preserving. IEEE Access, 2021, 9, 29293- 29302. doi: 10.1109/ACCESS.2021.3056677
6	LIU X W . Incomplete multiple kernel alignment maximization for clustering. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2024, 46 (3): 1412- 1424. doi: 10.1109/TPAMI.2021.3116948
7	LIU X W . SimpleMKKM: simple multiple kernel k-means. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2023, 45 (4): 5174- 5186. doi: 10.1109/TPAMI.2022.3198638
8	LI M M , LIANG W X , LIU X W . Multi-view clustering with learned bipartite graph. IEEE Access, 2021, 9, 87952- 87961. doi: 10.1109/ACCESS.2021.3060135
9	SHI S J , NIE F P , WANG R , et al. Multi-view clustering via nonnegative and orthogonal graph reconstruction. IEEE Transactions on Neural Networks and Learning Systems, 2023, 34 (1): 201- 214. doi: 10.1109/TNNLS.2021.3093297
10	曹付元, 陈晓惠. 共享和特定表示的多视图属性图聚类. 软件学报, 2025, 36 (3): 1254- 1267.
	CAO F Y , CHEN X H . Multi-view attributed graph clustering based on shared and specific representation. Journal of Software, 2025, 36 (3): 1254- 1267.
11	WANG Q Q , CHENG J F , GAO Q X , et al. Deep multi-view subspace clustering with unified and discriminative learning. IEEE Transactions on Multimedia, 2021, 23, 3483- 3493. doi: 10.1109/TMM.2020.3025666
12	HUANG Z Y, ZHOU J T, PENG X, et al. Multi-view spectral clustering network[C]//Proceedings of the 28th International Joint Conference on Artificial Intelligence. Macao, China: AAAI Press, 2019: 2563-2569.
13	HUANG S D , LIU Y X , TSANG I W , et al. Multi-view subspace clustering by joint measuring of consistency and diversity. IEEE Transactions on Knowledge and Data Engineering, 2023, 35 (8): 8270- 8281. doi: 10.1109/TKDE.2022.3199587
14	KANG Z , ZHAO X J , PENG C , et al. Partition level multiview subspace clustering. Neural Networks, 2020, 122, 279- 288. doi: 10.1016/j.neunet.2019.10.010
15	XIA W , ZHANG X D , GAO Q X , et al. Multiview subspace clustering by an enhanced tensor nuclear norm. IEEE Transactions on Cybernetics, 2022, 52 (9): 8962- 8975. doi: 10.1109/TCYB.2021.3052352
16	CHEN M S , LIN J Q , LI X L , et al. Representation learning in multi-view clustering: a literature review. Data Science and Engineering, 2022, 7 (3): 225- 241. doi: 10.1007/s41019-022-00190-8
17	CHEN M S , HUANG L , WANG C D , et al. Multiview subspace clustering with grouping effect. IEEE Transactions on Cybernetics, 2022, 52 (8): 7655- 7668. doi: 10.1109/TCYB.2020.3035043
18	CAO X C, ZHANG C Q, FU H Z, et al. Diversity-induced multi-view subspace clustering[C]//Proceedings of 2015 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway, USA: IEEE Press, 2015: 586-594.
19	MIKHAIL B, PARTHA N. Laplacian eigenmaps and spectral techniques for embedding and clustering[C]//Proceedings of the 14th International Conference on Neural Information Processing Systems: Natural and Synthetic. Cambridge, USA: MIT Press, 2001: 585-591.
20	BARTELS R H , STEWART G W . Algorithm 432: solution of the matrix equation {AX+XB=C}. Communications of the ACM, 1972, 15 (9): 820- 826. doi: 10.1145/361573.361582
21	NEWMAN M W , LIBRATY N , ON O , et al. The Laplacian spectrum of graphs. Graph Theory, Combinatorics, and Applications, 1991, 18 (7): 871- 898.
22	CAI X S , HUANG D , ZHANG G Y , et al. Seeking commonness and inconsistencies: a jointly smoothed approach to multi-view subspace clustering. Information Fusion, 2023, 91, 364- 375. doi: 10.1016/j.inffus.2022.10.020
23	XIA R K, PAN Y, DU L, et al. Robust multi-view spectral clustering via low-rank and sparse decomposition[C]//Proceedings of the 28th AAAI Conference on Artificial Intelligence. Quebec, Canada: AAAI Press, 2014: 2149-2155.
24	LONG Z , ZHU C , CHEN J , et al. Multi-view MERA subspace clustering. IEEE Transactions on Multimedia, 2024, 26, 3102- 3112. doi: 10.1109/TMM.2023.3307239
25	NG A Y, JORDAN M I, WEISS Y. On spectral clustering: analysis and an algorithm[C]//Proceedings of the 14th International Conference on Neural Information Processing Systems: Natural and Synthetic. Vancouver, Canada: MIT Press, 2002: 849-856.
26	ZHAN K , NIE F P , WANG J , et al. Multiview consensus graph clustering. IEEE Transactions on Image Processing, 2019, 28 (3): 1261- 1270. doi: 10.1109/TIP.2018.2877335
27	CHEN M S, HUANG L, WANG C D, et al. Multi-view clustering in latent embedding space[C]//Proceedings of the 34th AAAI Conference on Artificial Intelligence. New York, USA: AAAI Press, 2020: 3513-3520.
28	ZHANG C Q, HU Q H, FU H Z, et al. Latent multi-view subspace clustering[C]//Proceedings of IEEE Conference on Computer Vision and Pattern Recognition. Honolulu, USA: IEEE, 2017: 4279-4287.
29	WANG X B , LEI Z , GUO X J , et al. Multi-view subspace clustering with intactness-aware similarity. Pattern Recognition, 2019, 88, 50- 63.
30	ZHANG P , LIU X W , XIONG J , et al. Consensus one-step multi-view subspace clustering. IEEE Transactions on Knowledge and Data Engineering, 2022, 34 (10): 4676- 4689. doi: 10.1109/TKDE.2020.3045770
31	FANG Y , YANG G P , CHEN X , et al. Landmark-based k-factorization multi-view subspace clustering. Information Sciences, 2024, 667, 1- 20.
32	FANG S G , HUANG D , CAI X S , et al. Efficient multi-view clustering via unified and discrete bipartite graph learning. IEEE Transactions on Neural Networks and Learning Systems, 2024, 35 (8): 11436- 11447.
