ComHA: 融合几何变换与层次结构的知识图谱嵌入模型

doi:10.19678/j.issn.1000-3428.0069747

摘要/Abstract

摘要：

知识图谱嵌入技术旨在将复杂的语义信息转换为易于计算的低维向量形式，这一过程不仅有助于揭示实体和关系之间的潜在相似性，还能够促进计算机对知识图谱内容的理解和处理。当前，在知识图谱嵌入领域，现有的知识图谱嵌入模型仍然难以建模复杂的关系模式，在对称性、反对称性、反演性以及层次结构等方面仍存在局限性。层次感知模型HAKE通过将实体映射到极坐标系统中，并利用极坐标系中的同心圆来反映不同层次结构，同时捕捉同一层级内实体间的关系，但对于其他复杂关系的建模仍有局限。为了解决这一问题，提出一种新的知识图谱嵌入模型ComHA。ComHA在HAKE的基础上融合了几何变换的思想，通过平移、旋转和缩放操作来增强实体和关系的向量空间表示。在公开数据集WN18、WN18RR、FB15k、FB15k-237和YAGO3-10上的链接预测实验结果表明，ComHA实现了性能提升。这验证了ComHA在捕捉知识图谱中复杂关系和层次结构方面的有效性，为未来的知识图谱嵌入模型设计提供了新的研究方向和研究思路。

关键词: 知识图谱, 知识图谱嵌入, 几何变换, 层次结构感知, 链接预测

Abstract:

Knowledge graph embedding technologies aim to convert complex semantic information into computationally efficient, low-dimensional vector representations. This process not only reveals potential similarities between entities and relationships but also helps a computer understand the content of knowledge graphs and promotes further processing. However, current knowledge graph embedding models face challenges in effectively capturing complex relationship patterns and exhibit limitations in handling aspects such as symmetry, antisymmetry, composition, and hierarchical structures. The hierarchical-aware model, HAKE, addresses this by mapping entities to a polar coordinate system and utilizing concentric circles, thereby capturing relationships between entities at the same level. Nevertheless, constraints remain in modeling other intricate relationships. To overcome these challenges, this study proposes a knowledge graph embedding model called ComHA. Building on the principles of HAKE, ComHA integrates geometric transformation techniques to enhance the vector space representations of entities and relationships by using translation, rotation, and scaling operations. Subsequently, link prediction experiments are conducted on publicly available datasets, including WN18, WN18RR, FB15k, FB15k-237, and YAGO3-10. The results demonstrate significant performance improvements achieved by ComHA. This underscores the effectiveness of ComHA in capturing complex relationships and hierarchical structures within knowledge graphs while providing new research directions and methodological insights for future research in knowledge graph embedding model design.

Key words: knowledge graph, knowledge graph embedding, geometric transformation, hierarchical structure perception, link prediction

李文浩, 张东, 李冠宇. ComHA: 融合几何变换与层次结构的知识图谱嵌入模型[J]. 计算机工程, 2025, 51(11): 123-132.

LI Wenhao, ZHANG Dong, LI Guanyu. ComHA: Knowledge Graph Embedding Model Integrating Geometric Transformations and Hierarchical Structures[J]. Computer Engineering, 2025, 51(11): 123-132.

https://www.ecice06.com/CN/Y2025/V51/I11/123

图/表 11

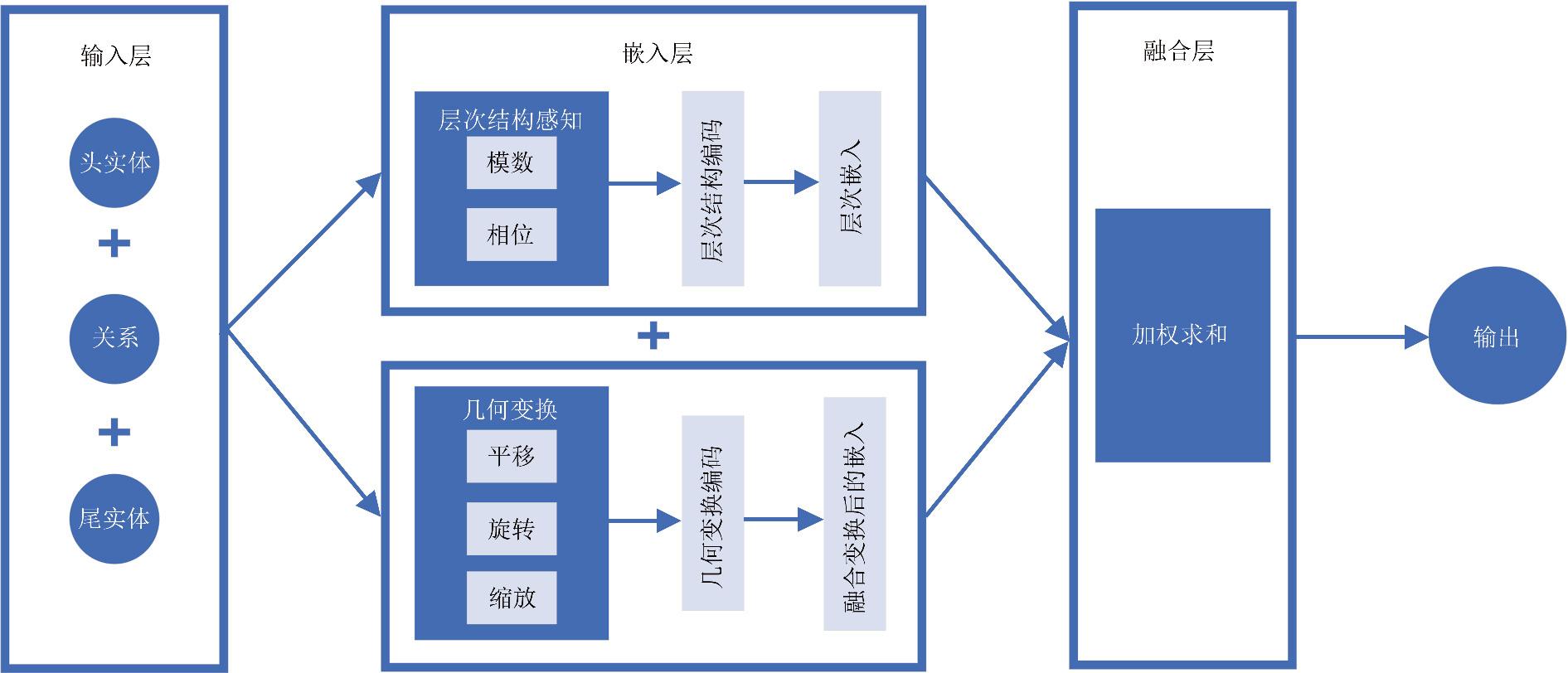

图1 ComHA模型架构

Fig.1 Architecture of ComHA model

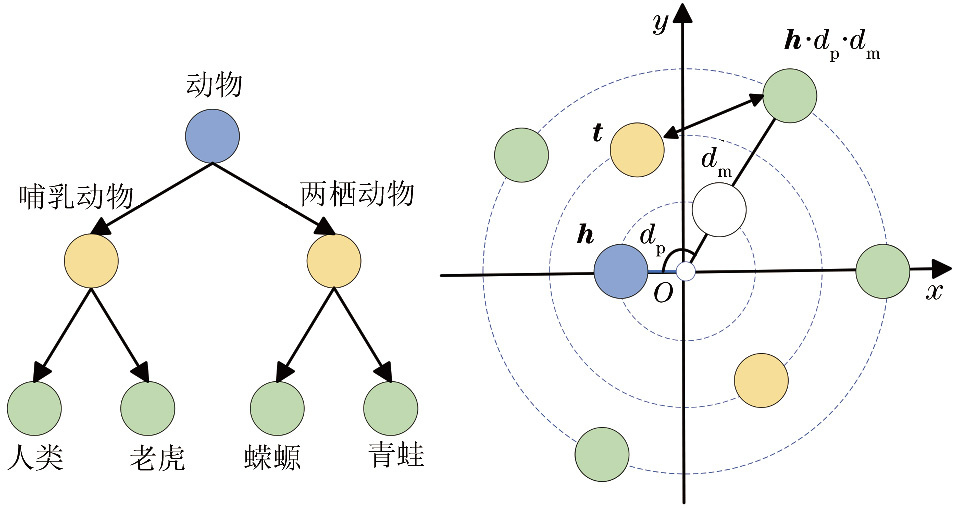

图2 层次感知结构示意图

Fig.2 Schematic diagram of hierarchical perception structure

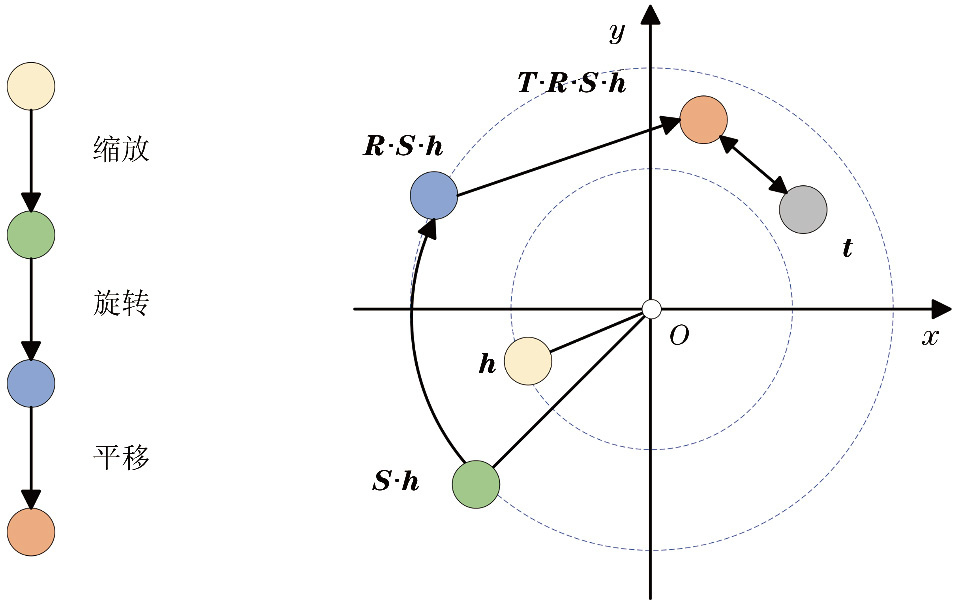

图3 几何变换结构示意图

Fig.3 Schematic diagram of geometric transformation structure

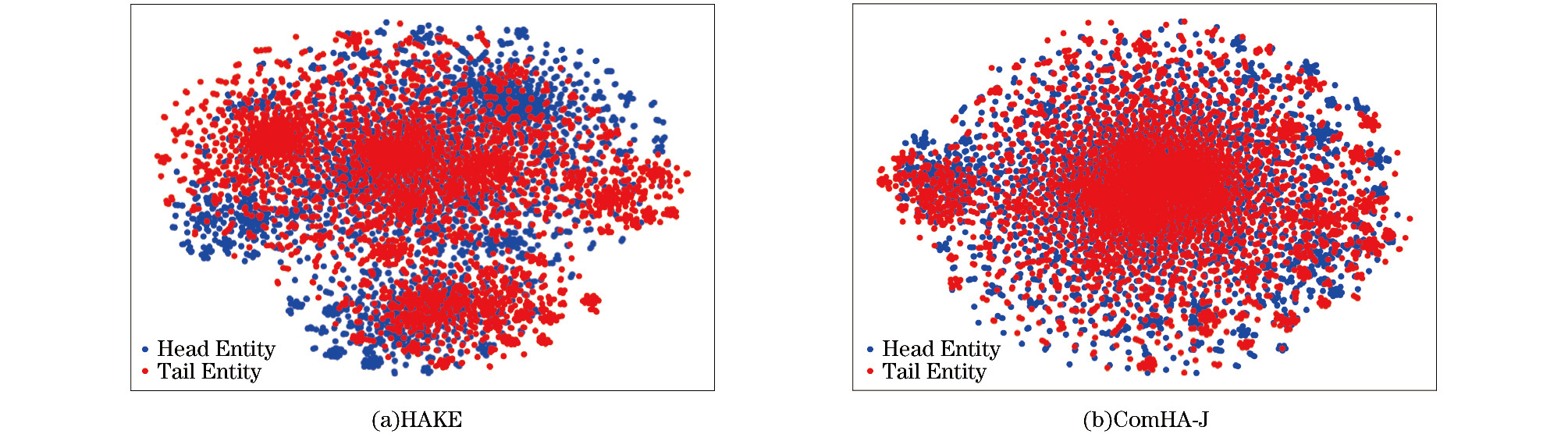

图4 HAKE和ComHA-J训练的实体嵌入向量可视化效果

Fig.4 Visualization effect of entity embedding vectors trained by HAKE and ComHA-J

参考文献 26

1	张文豪, 徐贞顺, 刘纳, 等. 知识图谱补全方法研究综述. 计算机工程与应用, 2024, 60 (12): 61- 73.
	ZHANG W H , XU Z S , LIU N , et al. Overview of knowledge graph completion methods. Computer Engineering and Applications, 2024, 60 (12): 61- 73.
2	BOLLACKER K, EVANS C, PARITOSH P, et al. Freebase: a collaboratively created graph database for structuring human knowledge[C]//Proceedings of the 2008 ACM SIGMOD International Conference on Management of Data. New York, USA: ACM Press, 2008: 1247-1250.
3	SUCHANEK F M, KASNECI G, WEIKUM G. YAGO: a core of semantic knowledge[C]//Proceedings of the 16th International Conference on World Wide Web. New York, USA: ACM Press, 2007: 697-706.
4	MILLER G A . WordNet. Communications of the ACM, 1995, 38 (11): 39- 41. doi: 10.1145/219717.219748
5	XIONG C Y, POWER R, CALLAN J. Explicit semantic ranking for academic search via knowledge graph embedding[C]//Proceedings of the 26th International Conference on World Wide Web. Perth, Australia: International World Wide Web Conferences Steering Committee, 2017: 1271-1279.
6	ZHANG F Z, YUAN N J, LIAN D F, et al. Collaborative knowledge base embedding for recommender systems[C]//Proceedings of the 22nd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining. New York, USA: ACM Press, 2016: 353-362.
7	王智悦, 于清, 王楠, 等. 基于知识图谱的智能问答研究综述. 计算机工程与应用, 2020, 56 (23): 1- 11.
	WANG Z Y , YU Q , WANG N , et al. Survey of intelligent question answering research based on knowledge graph. Computer Engineering and Applications, 2020, 56 (23): 1- 11.
8	BORDES A, USUNIER N, GARCIA-DURAN A, et al. Translating embeddings for modeling multi-relational data[C]//Proceedings of the 27th International Conference on Neural Information Processing Systems. New York, USA: ACM Press, 2013: 2787-2795.
9	YANG B S, YIH W T, HE X D, et al. Embedding entities and relations for learning and inference in knowledge bases[EB/OL]. [2024-03-11]. https://arxiv.org/abs/1412.6575v4
10	SUN Z Q, DENG Z H, NIE J Y, et al. RotatE: knowledge graph embedding by relational rotation in complex space[EB/OL]. [2024-03-11]. https://arxiv.org/abs/1902.10197v1.
11	ZHANG Z Q, CAI J Y, ZHANG Y D, et al. Learning hierarchy-aware knowledge graph embeddings for link prediction[C]//Proceedings of the AAAI Conference on Artificial Intelligence. Palo Alto, USA: AAAI Press, 2020: 3065-3072.
12	杜雪盈, 刘名威, 沈立炜, 等. 面向链接预测的知识图谱表示学习方法综述. 软件学报, 2024, 35 (1): 87- 117.
	DU X Y , LIU M W , SHEN L W , et al. Survey on representation learning methods of knowledge graph for link prediction. Journal of Software, 2024, 35 (1): 87- 117.
13	WANG Z, ZHANG J W, FENG J L, et al. Knowledge graph embedding by translating on hyperplanes[C]//Proceedings of the AAAI Conference on Artificial Intelligence. Palo Alto, USA: AAAI Press, 2014: 1112-1119.
14	LIN Y K, LIU Z Y, SUN M S, et al. Learning entity and relation embeddings for knowledge graph completion[C]//Proceedings of the AAAI Conference on Artificial Intelligence. Palo Alto, USA: AAAI Press, 2015: 2181-2187.
15	NICKEL M, TRESP V, KRIEGEL H P. Factorizing YAGO: scalable machine learning for linked data[C]//Proceedings of the 21st International Conference on World Wide Web. New York, USA: ACM Press, 2012: 271-280.
16	TROUILLON T, WELBL J, RIEDEL S, et al. Complex embeddings for simple link prediction[C]//Proceedings of the International Conference on Machine Learning. [S. l. ]: PMLR, 2016: 2071-2080.
17	翟社平, 张宇航, 柏晓夏. 融合实体邻域信息的知识图谱嵌入负采样方法. 计算机工程, 2023, 49 (3): 95- 104. doi: 10.19678/j.issn.1000-3428.0064167
	ZHAI S P , ZHANG Y H , BAI X X . Knowledge graph embedding negative sampling method fused with entity neighborhood information. Computer Engineering, 2023, 49 (3): 95- 104. doi: 10.19678/j.issn.1000-3428.0064167
18	DONG X, GABRILOVICH E, HEITZ G, et al. Knowledge vault: a Web-scale approach to probabilistic knowledge fusion[C]//Proceedings of the 20th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining. New York, USA: ACM Press, 2014: 601-610.
19	DETTMERS T, MINERVINI P, STENETORP P, et al. Convolutional 2D knowledge graph embeddings[C]//Proceedings of the AAAI Conference on Artificial Intelligence. Palo Alto, USA: AAAI Press, 2018: 1811-1818.
20	张天成, 田雪, 孙相会, 等. 知识图谱嵌入技术研究综述. 软件学报, 2023, 34 (1): 277- 311.
	ZHANG T C , TIAN X , SUN X H , et al. Overview on knowledge graph embedding technology research. Journal of Software, 2023, 34 (1): 277- 311.
21	胡旭阳, 王治政, 孙媛媛, 等. 融合语义解析的知识图谱表示方法. 计算机研究与发展, 2022, 59 (12): 2878- 2888.
	HU X Y , WANG Z Z , SUN Y Y , et al. Knowledge graph representation method combined with semantic parsing. Journal of Computer Research and Development, 2022, 59 (12): 2878- 2888.
22	JURDJEVIC V . Affine-quadratic problems on lie groups: tops and integrable systems. Journal of Lie Theory, 2020, 30 (2): 425- 444.
23	TOUTANOVA K, CHEN D Q. Observed versus latent features for knowledge base and text inference[C]//Proceedings of the 3rd Workshop on Continuous Vector Space Models and Their Compositionality. Stroudsburg, USA: ACL Press, 2015: 57-66.
24	段立, 封皓君, 张碧莹, 等. 融合语义路径与语言模型的元学习知识推理框架. 电子与信息学报, 2022, 44 (12): 4376- 4383.
	DUAN L , FENG H J , ZHANG B Y , et al. A meta-learning knowledge reasoning framework combining semantic path and language model. Journal of Electronics & Information Technology, 2022, 44 (12): 4376- 4383.
25	GUAN S P, JIN X L, GUO J F, et al. NeuInfer: knowledge inference on N-ary facts[C]//Proceedings of the 58th Annual Meeting of the Association for Computational Linguistics. Stroudsburg, USA: ACL Press, 2020: 6141-6151.
26	ROSSI A , BARBOSA D , FIRMANI D , et al. Knowledge graph embedding for link prediction. ACM Transactions on Knowledge Discovery from Data, 2021, 15 (2): 1- 49.
