Space-Time Distance Calculation Method of Tram Obstacle Based on Instance Segmentation and Monocular Vision

doi:10.19678/j.issn.1000-3428.0068996

Abstract

Abstract:

Trams, owing to their operation in a shared right-of-way and reliance on driver visual observation, are more prone to collisions with intruding obstacles than urban rail transit systems, such as subways and maglev trains. Therefore, to ensure the operational safety of trams, a method for calculating the space-time distance of obstacles based on instance segmentation and monocular vision is proposed. First, the contour points of the obstacles and track area are extracted using an instance segmentation model. Subsequently, a monocular vision ranging model is established based on the principles of monocular vision. By incorporating a standard gauge length of 1.435 m as prior knowledge, the longitudinal distance between the obstacles and tram is calculated without camera calibration. Finally, the lateral distance between the obstacle and track area is calculated based on the point on the obstacle closest to the track area and the corresponding track endpoint. This method fills a research gap in the field of rail transit by calculating the space-time distance of obstacles using the standard gauge length of trams as prior knowledge. Additionally, by introducing an instance segmentation model, the key points for obstacle distance measurement are determined with pixel-level accuracy, enabling the precise calculation of the space-time distance of obstacles. The feasibility of the proposed method is verified using experimental data captured in real-world scenarios. The results show that the maximum positive and negative errors of longitudinal distance calculation are 1.60 m and 1.05 m, respectively, indicating a high level of accuracy in the distance calculation results.

Key words: tram, instance segmentation, monocular vision, ranging model, obstacle

摘要：

有轨电车因采用共享路权和司机目视行车的方式运行, 与地铁、磁悬浮等城市轨道交通相比, 更容易和入侵障碍物发生碰撞。因此, 为了保障有轨电车的运行安全, 提出一种基于实例分割和单目视觉的有轨电车障碍物时空距离计算方法。首先基于实例分割模型提取出障碍物和轨行区的轮廓点; 然后基于单目视觉原理建立单目视觉测距模型, 在引入有轨电车轨道标准轨距长度1.435 m作为先验知识后, 实现在相机无标定情况下障碍物与列车的纵向距离计算; 最后根据障碍物距离轨行区最近的点及对应的轨道端点计算障碍物与轨行区的横向距离。该方法通过引入有轨电车标准轨距长度作为先验知识计算障碍物的时空距离, 填补了轨道交通领域障碍物时空距离计算研究的空白, 并且通过引入实例分割模型, 以像素级精度确定障碍物测距关键点, 实现了障碍物时空距离的精准计算。通过从现实场景中拍摄的实验数据来验证所提方法的可行性, 实验结果表明, 该方法的纵向距离计算结果的最大正误差为1.60 m, 最大负误差为1.05 m, 距离计算结果具有较高的准确度。

关键词: 有轨电车, 实例分割, 单目视觉, 测距模型, 障碍物

HUANG Shize, QIN Jinzhe, TAO Ting, DONG Decun, SHEN Tuo. Space-Time Distance Calculation Method of Tram Obstacle Based on Instance Segmentation and Monocular Vision[J]. Computer Engineering, 2025, 51(4): 239-248.

黄世泽, 秦晋哲, 陶婷, 董德存, 沈拓. 基于实例分割和单目视觉的有轨电车障碍物时空距离计算方法[J]. 计算机工程, 2025, 51(4): 239-248.

/ Recommend / Download Citations

URL: https://www.ecice06.com/EN/10.19678/j.issn.1000-3428.0068996

https://www.ecice06.com/EN/Y2025/V51/I4/239

Figures/Tables 16

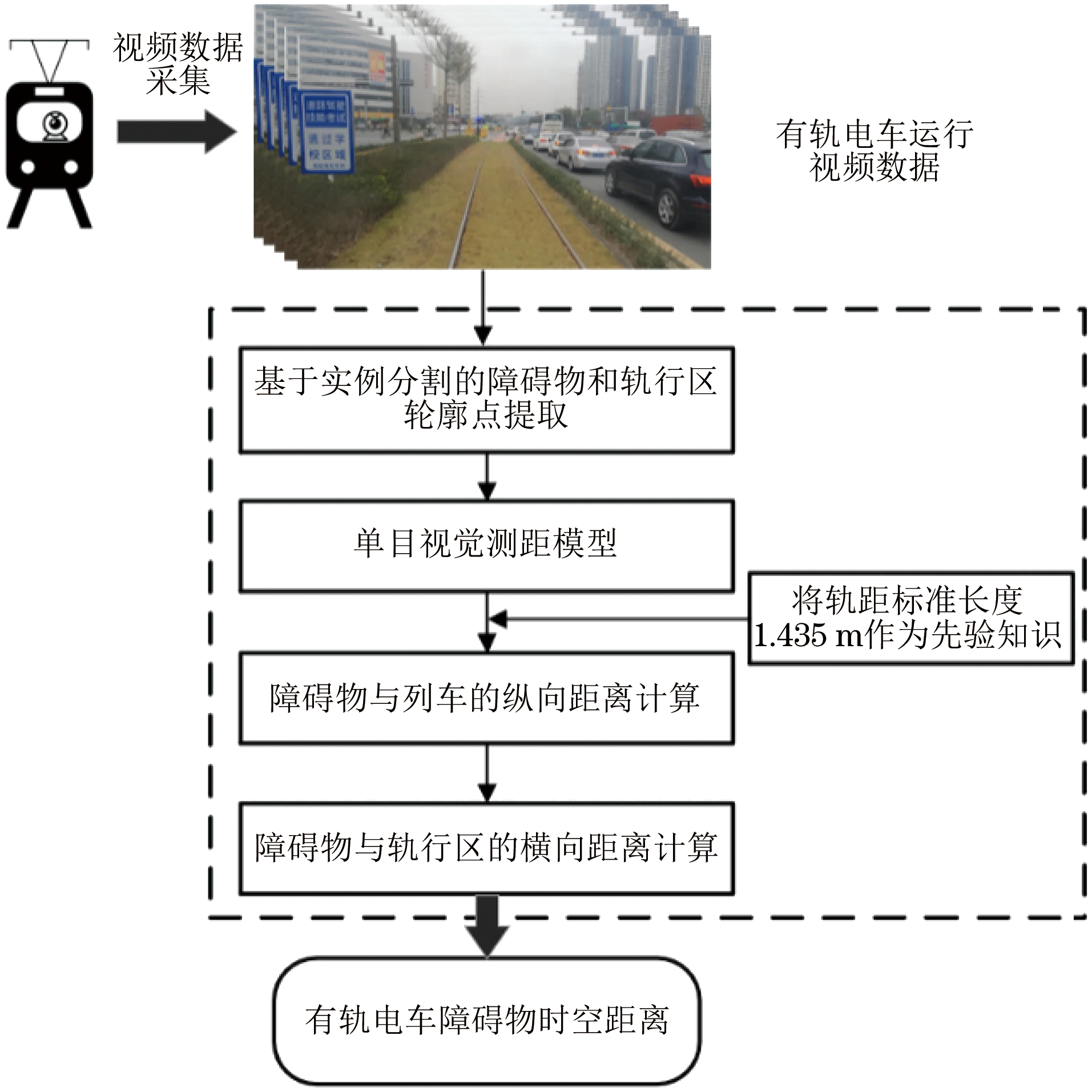

Fig.1 Overall technical roadmap of tram obstacle space-time distance calculation method based on instance segmentation and monocular vision

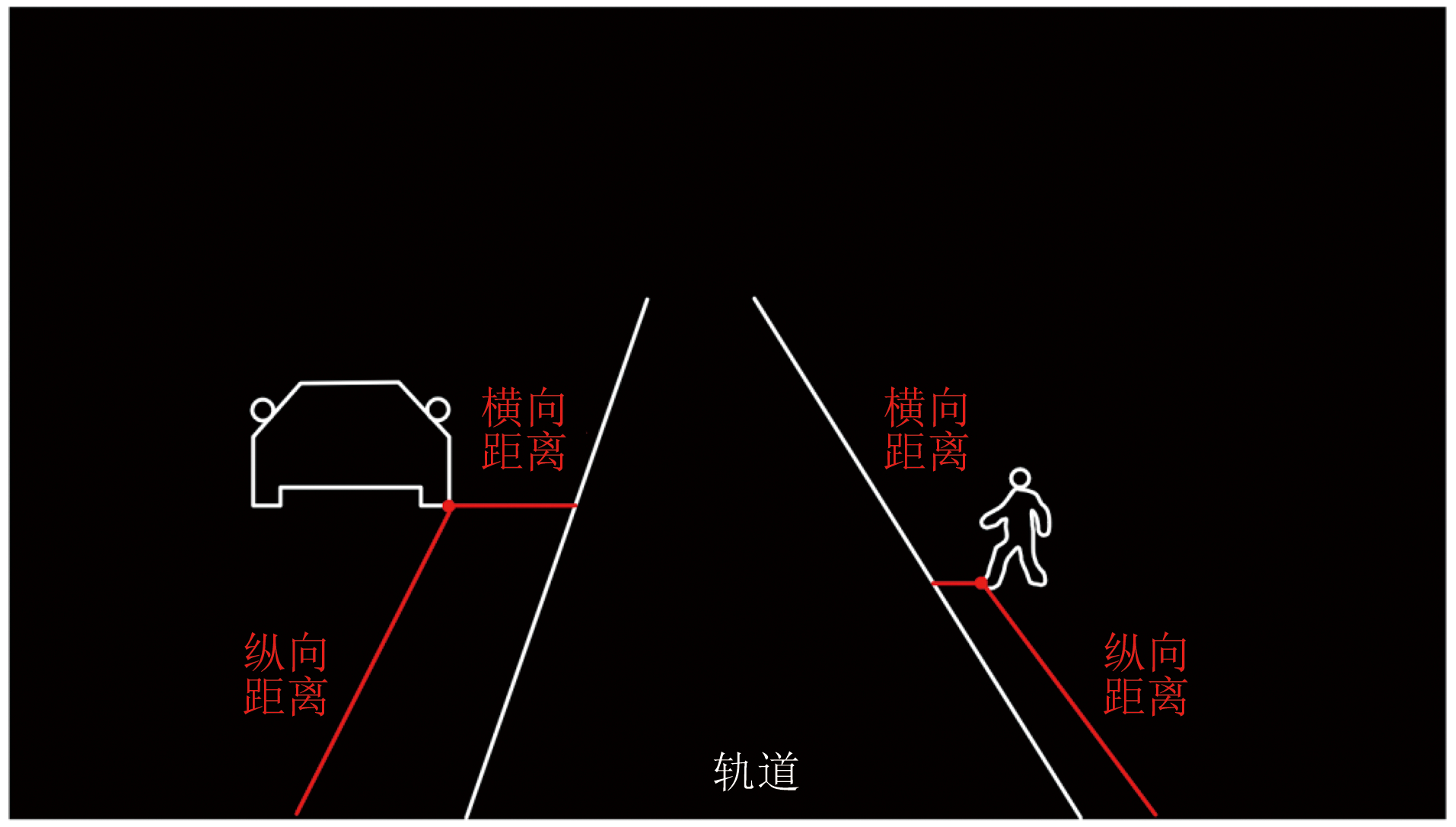

Fig.2 Schematic diagram of longitudinal distance and transverse distance

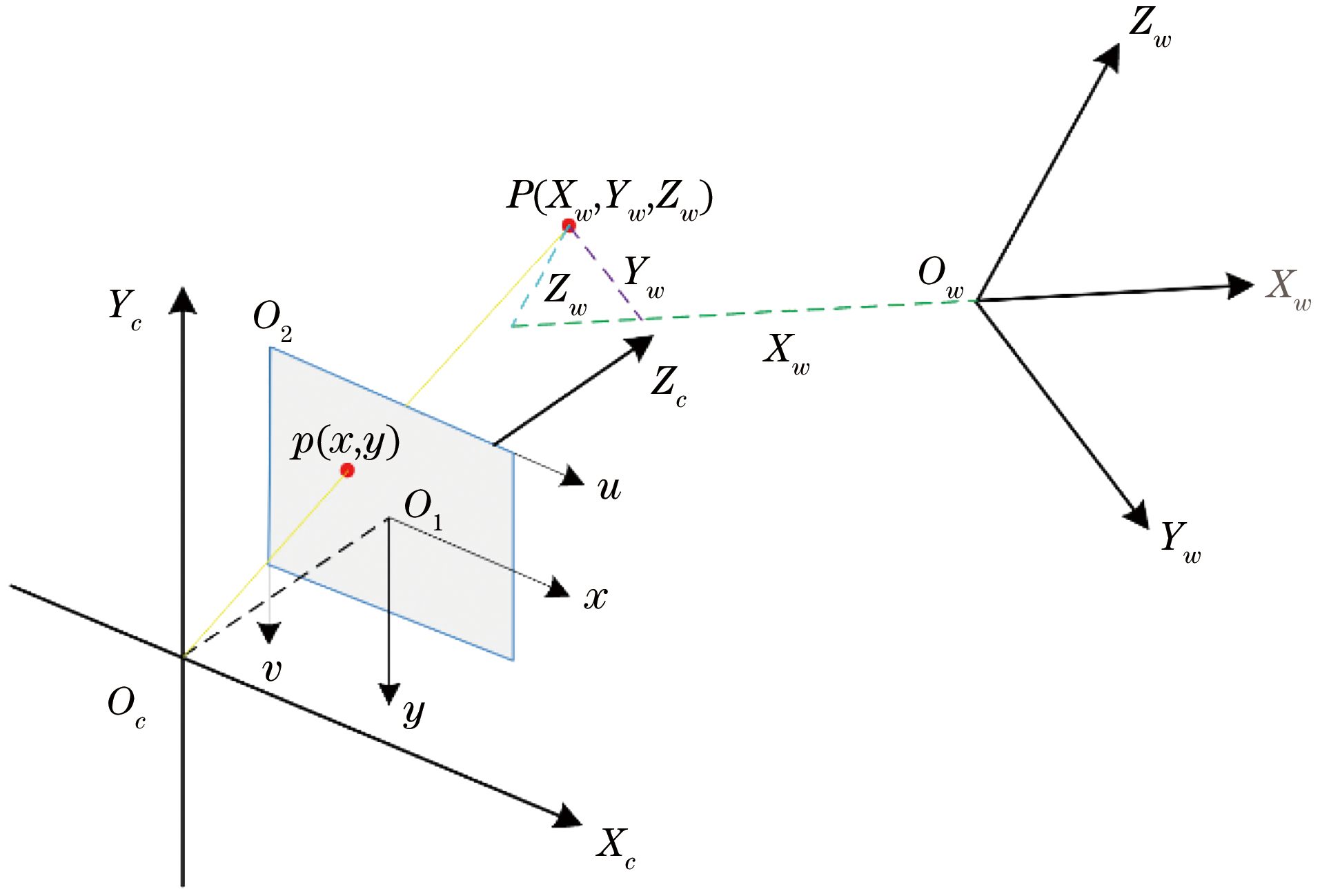

Fig.3 Schematic diagram of world coordinate system, camera coordinate system, image coordinate system, and pixel coordinate system

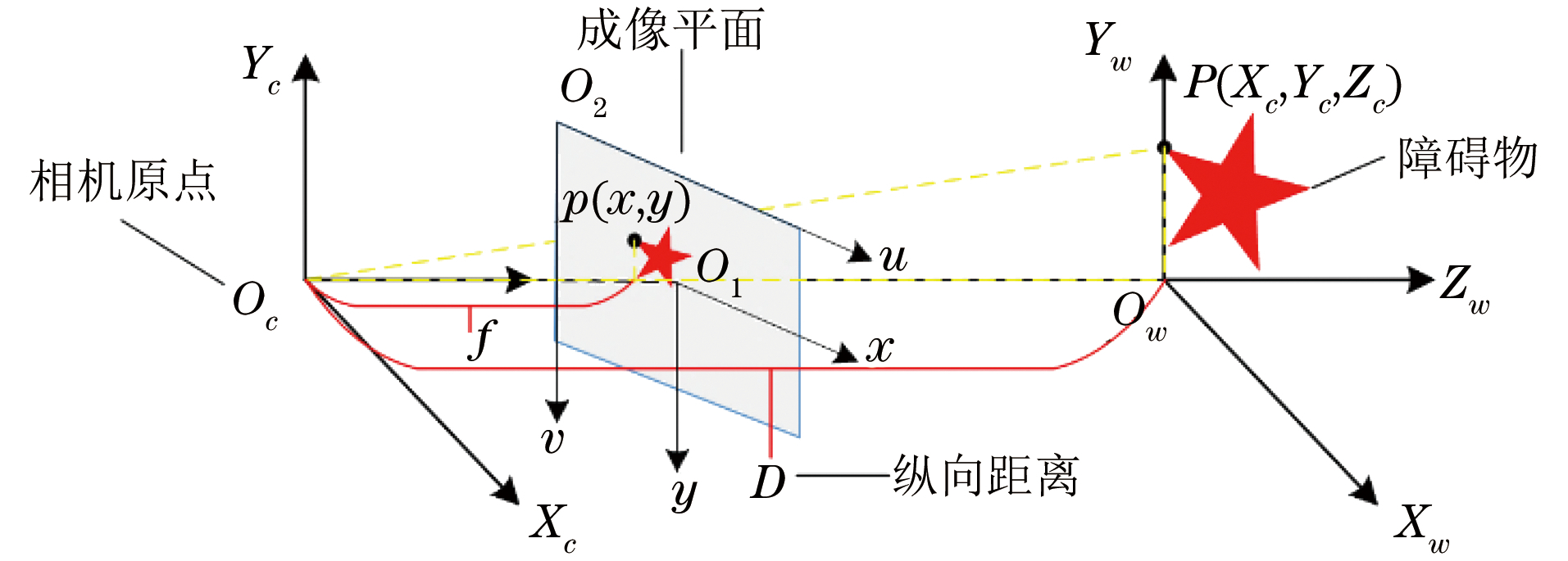

Fig.4 Schematic diagram of transformation from camera coordinate system to image coordinate system

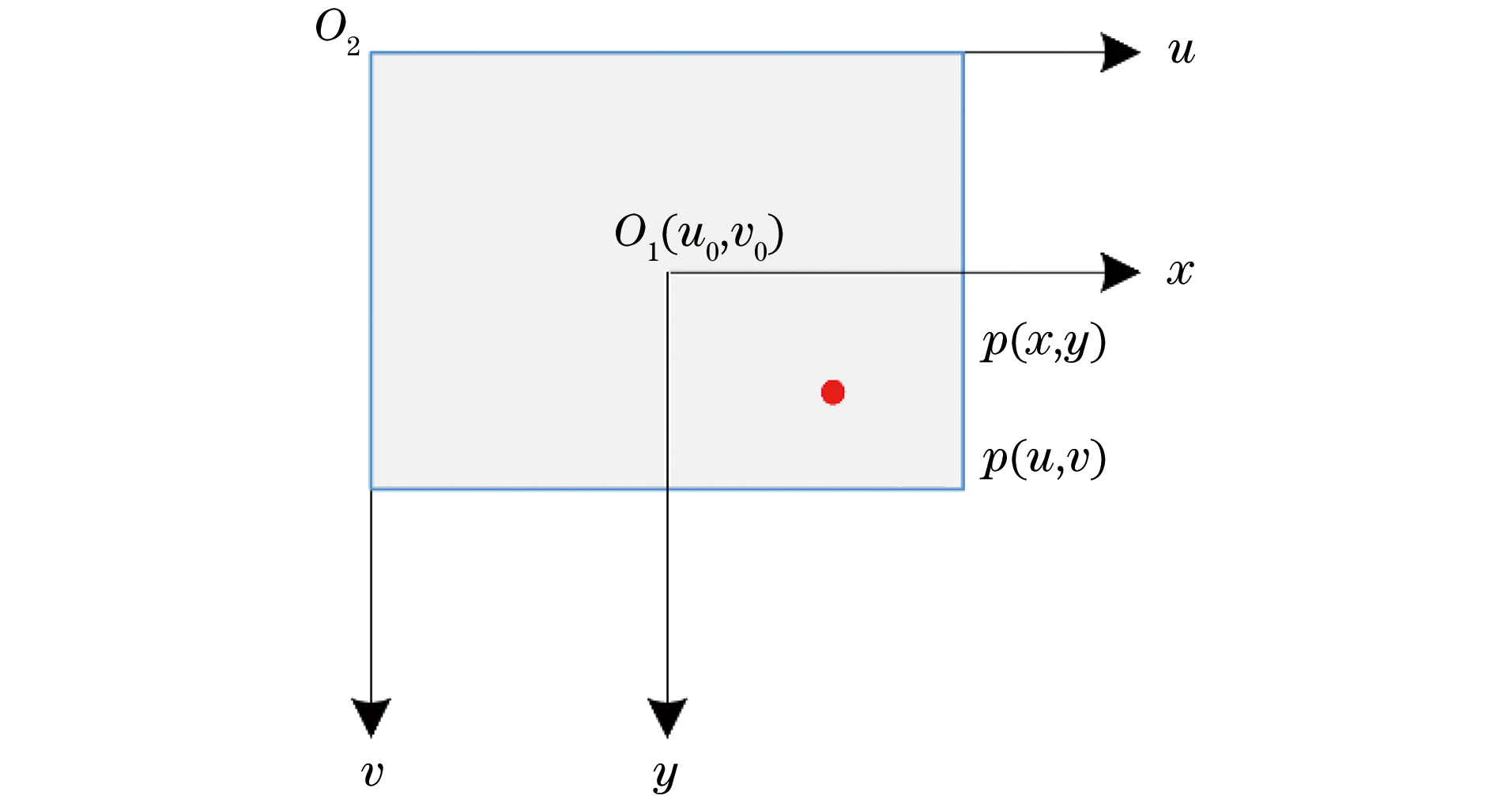

Fig.5 Schematic diagram of transformation from image coordinate system to pixel coordinate system

Fig.6 Schematic diagram of world coordinate system transformation

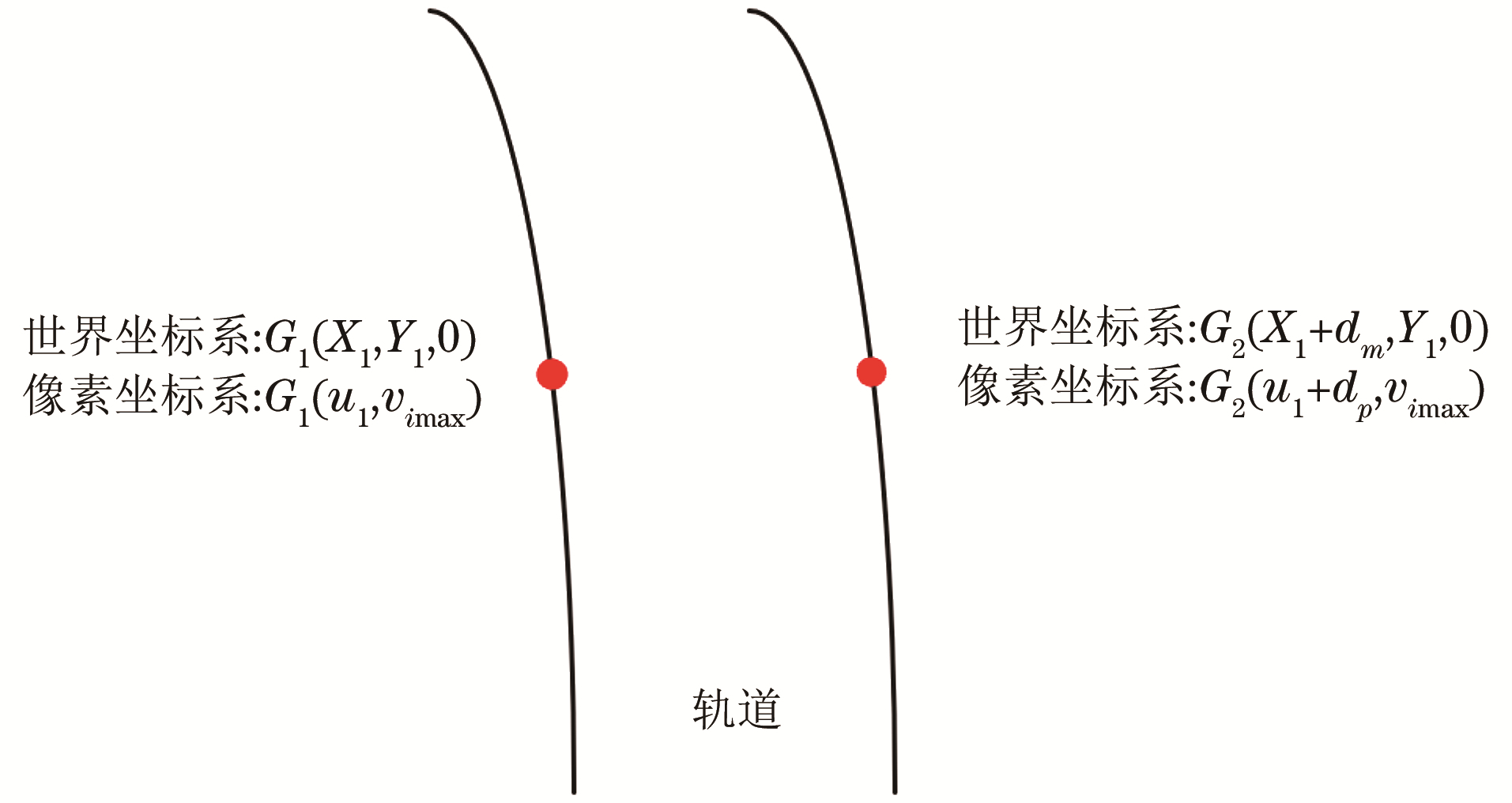

Fig.7 Coordinate correspondence of rail endpoints

Fig.8 Longitudinal distance solving process

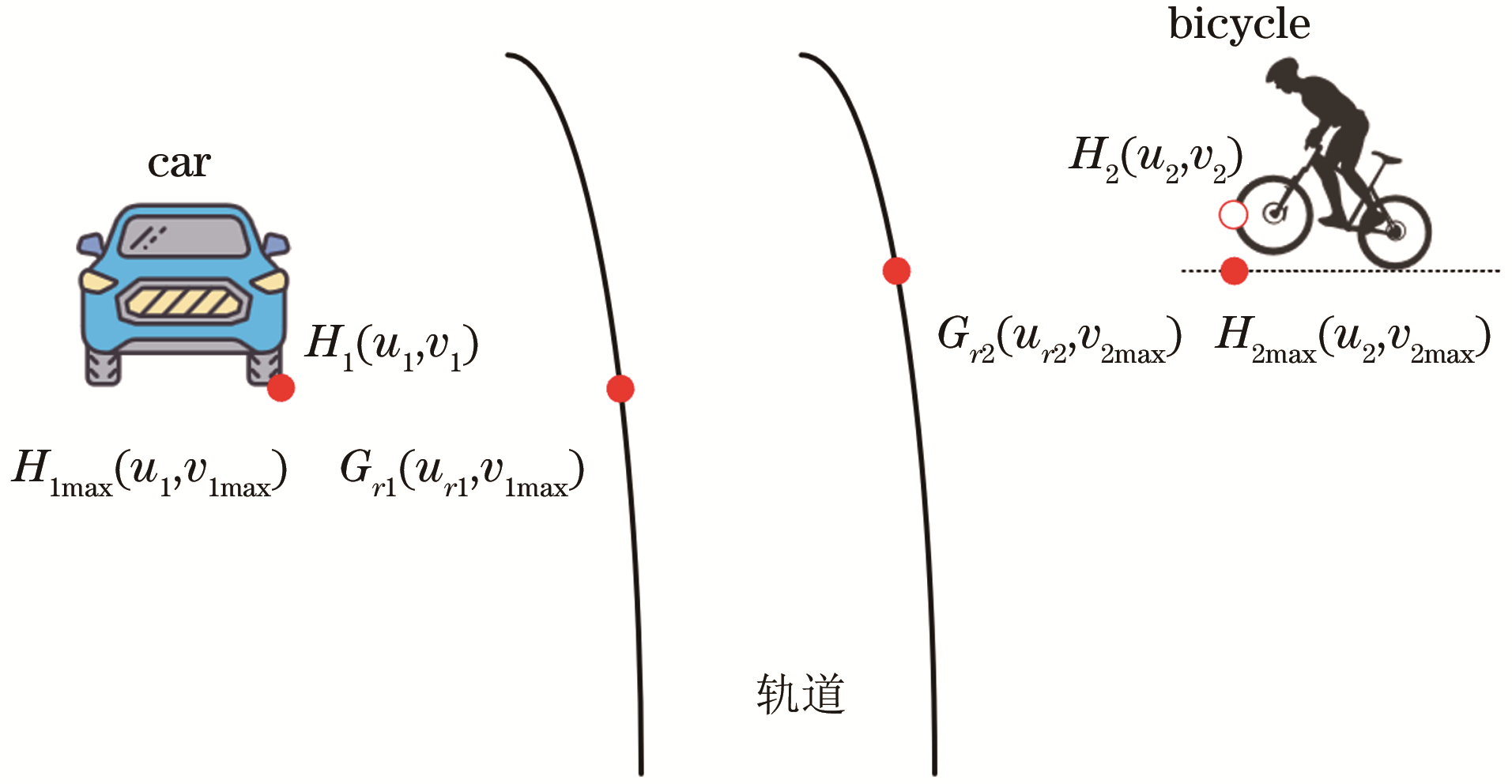

Fig.9 Coordinate correspondence between obstacle contour points and track contour points

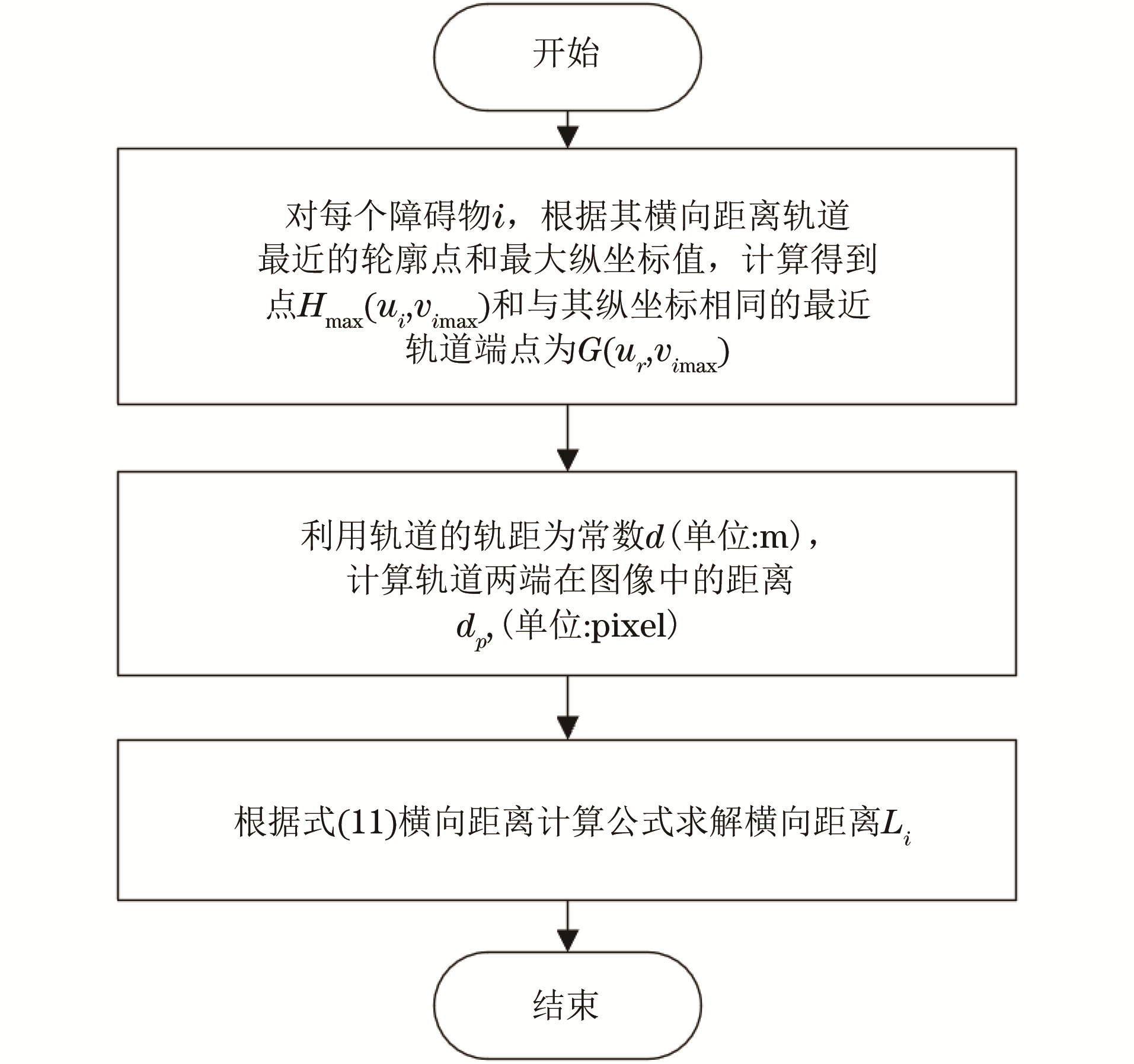

Fig.10 Calculation process of lateral distance between obstacle and rail area

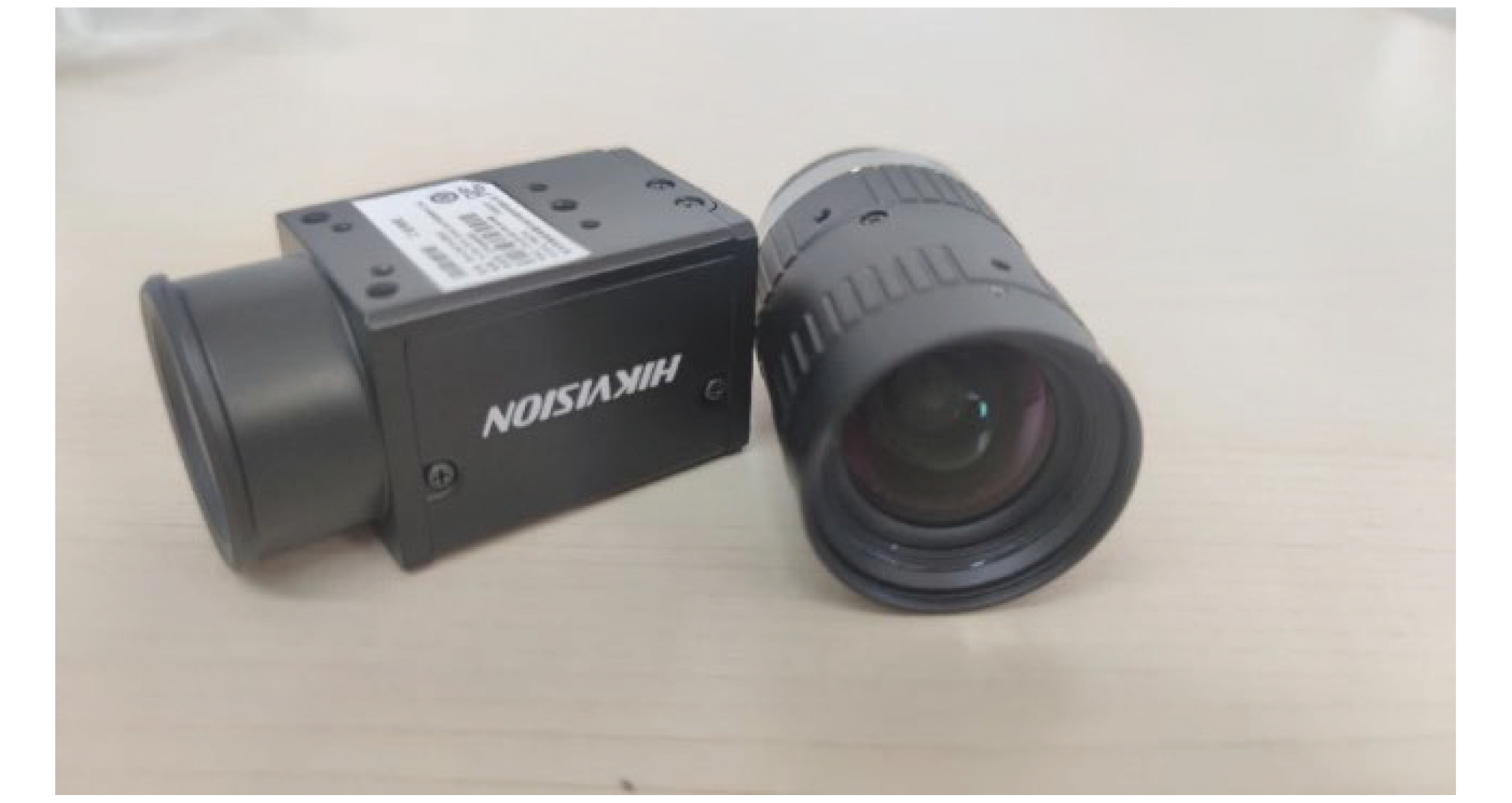

Fig.11 Industrial camera and lens

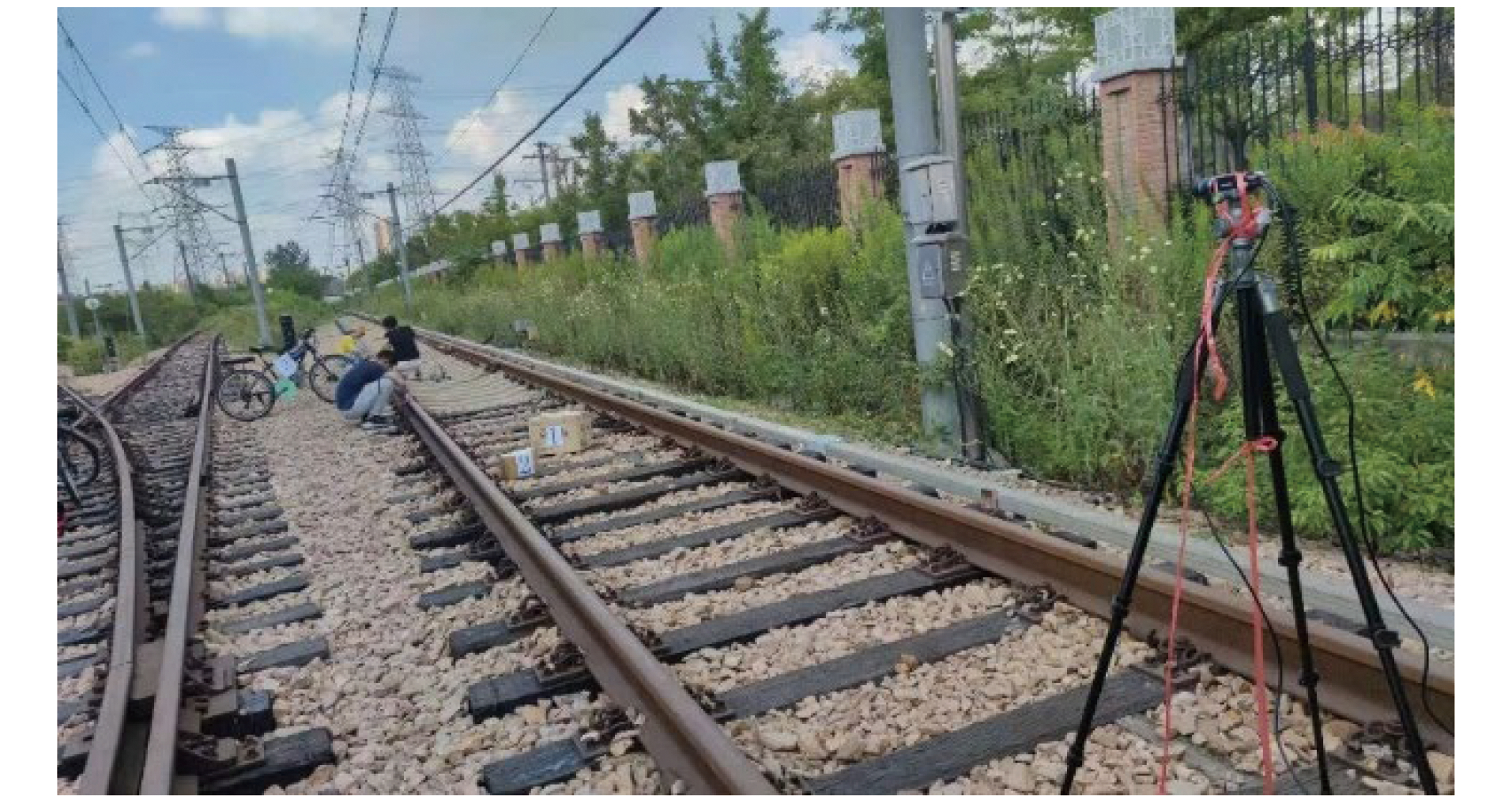

Fig.12 Experimental scene

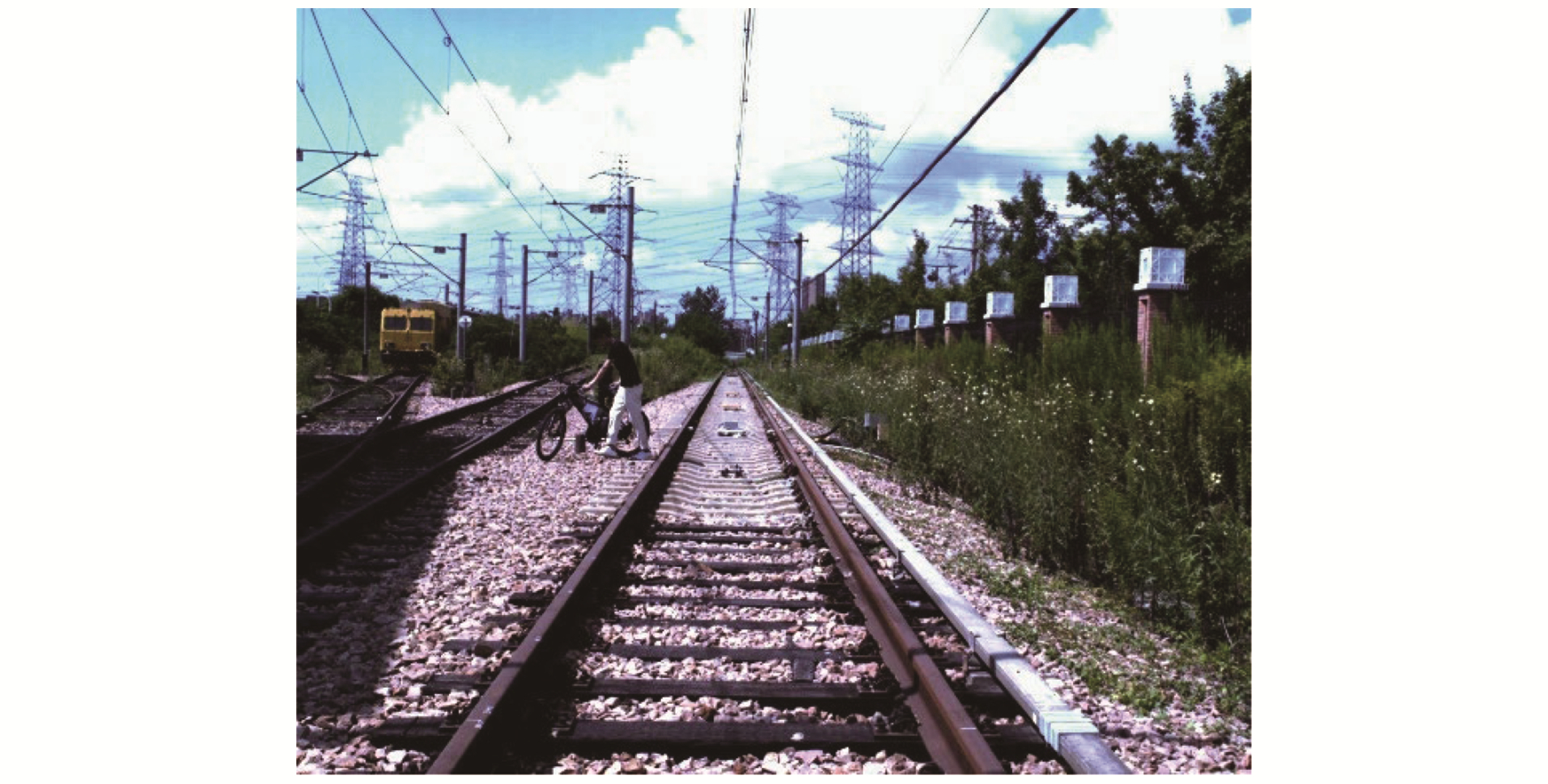

Fig.13 Pedestrian and bicycle turn back on the left side of the rail area
