面向车窗状态检测的轻量化目标检测模型

doi:10.19678/j.issn.1000-3428.0069393

摘要/Abstract

摘要：

针对当前智慧化城市建设中安防检测技术对检测精度和检测速度的要求, 提出了一种基于改进YOLOv5s的轻量化车窗目标检测模型。该模型在保证精度的同时降低了计算复杂度, 能够部署在边缘计算平台中, 实现对车窗开闭状态的检测。首先, 在主干网络中引入FasterNet, 以减少模型的计算量和模型参数; 其次, 在特征融合阶段, 使用GSConv降低模型的复杂度, 并使用双向特征金字塔网络(BiFPN)连接特征融合网络, 以融合更多的特征信息; 最后, 使用结构化交并比(SIoU)损失函数加快收敛。实验结果表明, 改进后的算法性能在车窗数据集上相较于原算法明显得到提升, 交并比(IoU)阈值在0.5以及0.5~0.95范围内时模型的平均精度mAP@0.5和mAP@0.5:0.95分别提高了0.001和0.005, 模型的参数量大幅减少且浮点运算数(FLOPs)大幅降低, 仅为原模型的18.74%和17.09%, 推理速度提升了260%。改进后的模型部署在NVIDIA Jetson Nano平台上时有着良好的表现。

关键词: FasterNet, GSConv, 双向特征金字塔网络, 轻量化, 车窗状态检测

Abstract:

To improve the security detection technology in smart cities in terms of detection accuracy and speed, a lightweight car window target detection model based on improved YOLOv5s is proposed. The proposed model reduces computational complexity while ensuring accuracy and can be deployed in edge computing platforms to detect the open and closed states of car windows. First, FasterNet is introduced into the backbone network to reduce the computational complexity and number of model parameters. Second, in the feature fusion stage, GSConv is used to reduce the complexity of the model and a Bidirectional Feature Pyramid Network (BiFPN) is used to connect the feature fusion network and fuse more feature information. Finally, the Structured Intersection over Union (SIoU) loss function is employed to accelerate convergence. The experimental results show that the improved algorithm exhibits significant differences compared with the original algorithm on the car window dataset. The mean Average Precision (mAP@0.5) for the Intersection over Union (IoU) threshold of 0.5 and mean average precision (mAP@0.5:0.95) for IoU in the range of 0.5 to 0.95 increase by 0.001 and 0.005, respectively. The number of parameters and Floating Point Operations Per Second (FLOPs) of the model are significantly reduced to 18.74% and 17.09% of those of the original model, respectively, and the inference speed is increased by 260%. The proposed model exhibits good performance when deployed on an NVIDIA Jetson Nano.

Key words: FasterNet, GSConv, Bidirectional Feature Pyramid Network (BiFPN), lightweight, car window status detection

梅华威, 王泽洋, 苏攀, 尚虹霖, 方毅. 面向车窗状态检测的轻量化目标检测模型[J]. 计算机工程, 2025, 51(12): 285-293.

MEI Huawei, WANG Zeyang, SU Pan, SHANG Honglin, FANG Yi. Lightweight Object Detection Model for Car Window Status Detection[J]. Computer Engineering, 2025, 51(12): 285-293.

https://www.ecice06.com/CN/Y2025/V51/I12/285

图/表 14

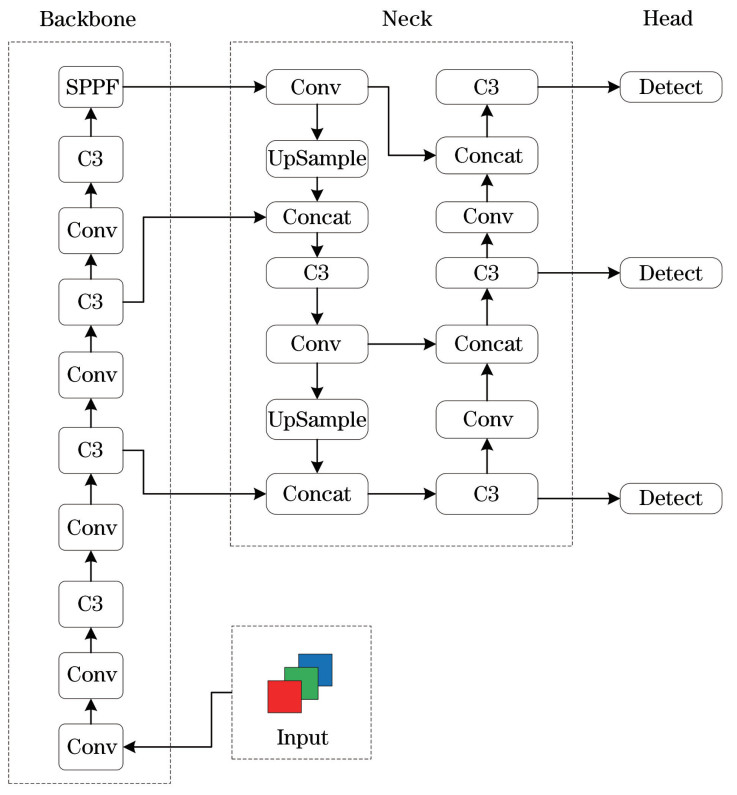

图1 YOLOv5网络结构

Fig.1 YOLOv5 network structure

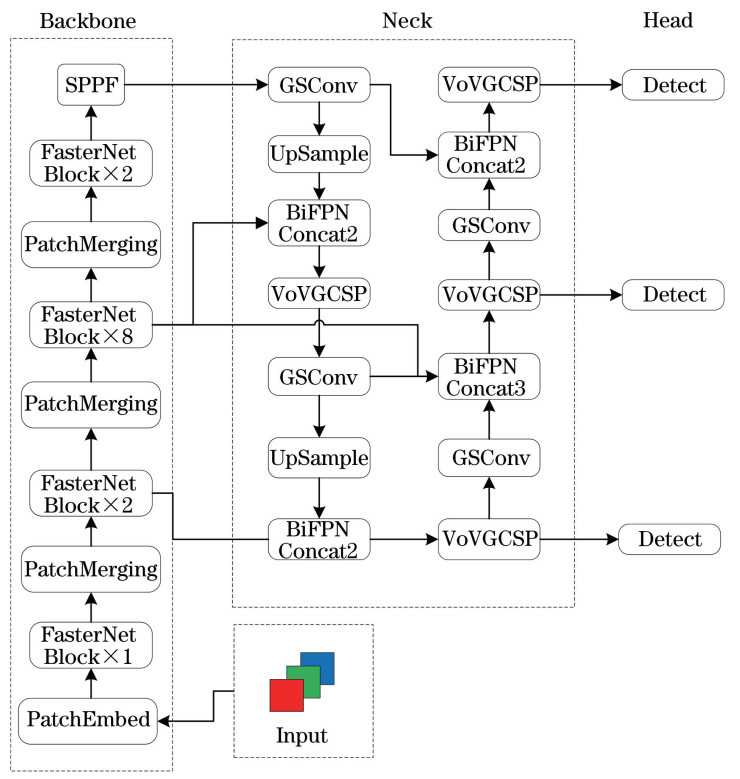

图2 改进的YOLOv5网络结构

Fig.2 Improved YOLOv5 network structure

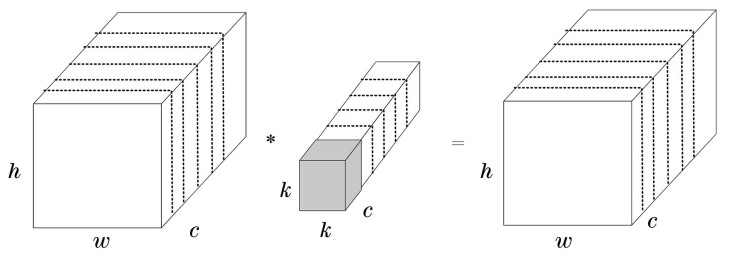

图3 深度可分离卷积

Fig.3 Depthwise separable convolution

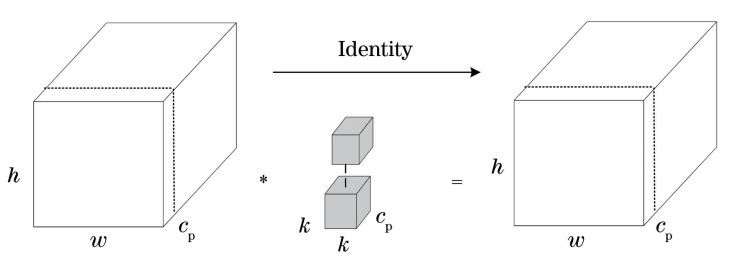

图4 PConv结构

Fig.4 PConv structure

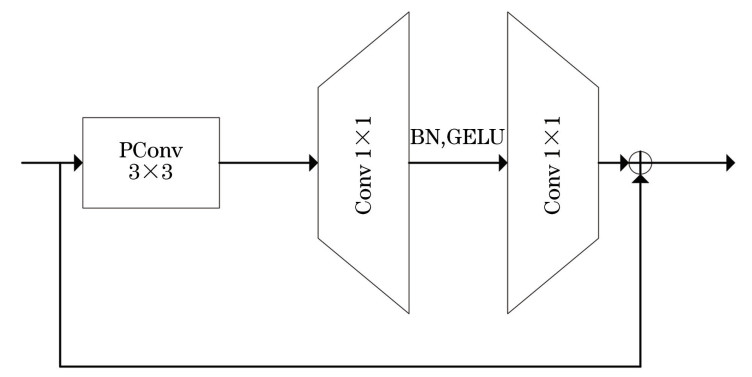

图5 FasterNet块

Fig.5 FasterNet block

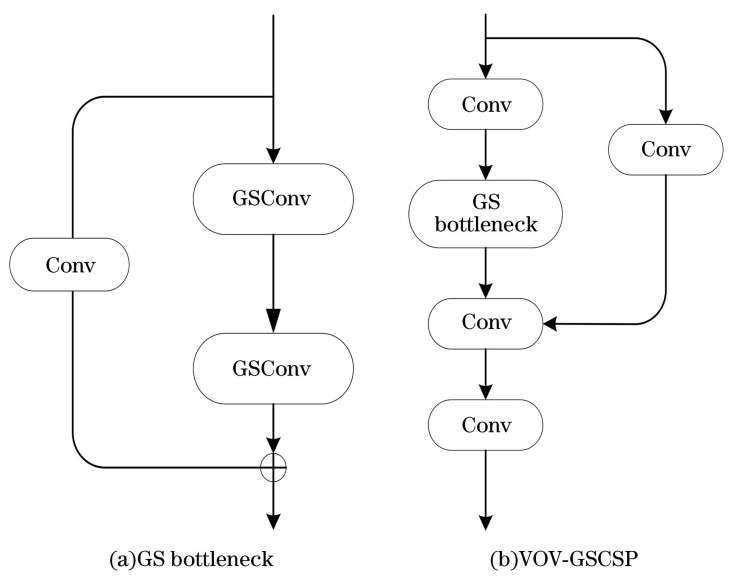

图6 GS bottleneck和VOV-GSCSP

Fig.6 GS bottleneck and VOV-GSCSP

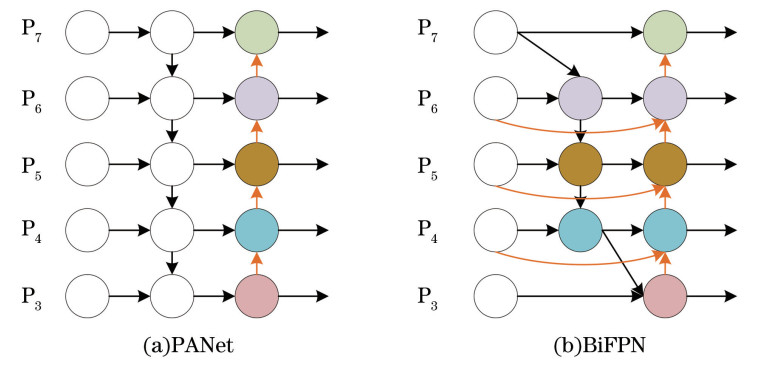

图7 PANet和BiFPN

Fig.7 PANet and BiFPN

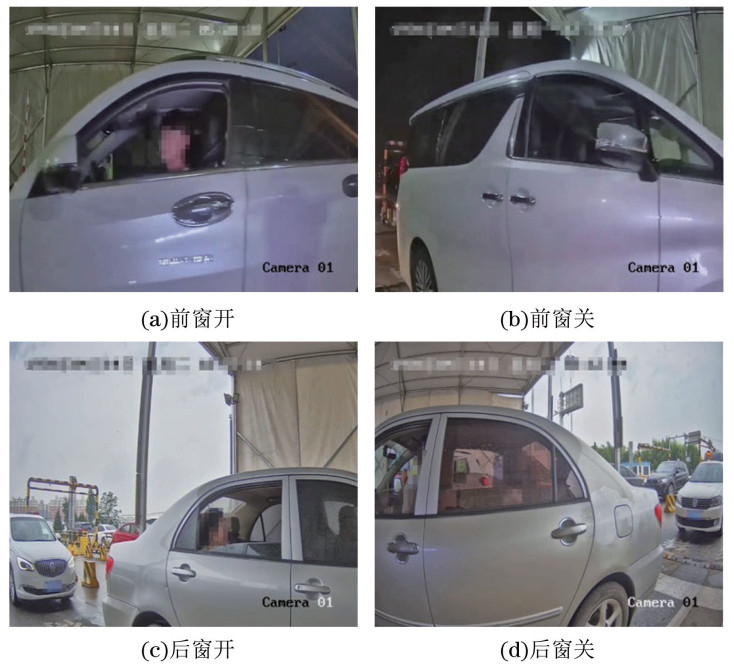

图8 数据集中4种类别图像示例

Fig.8 Examples of 4 categories of images in dataset

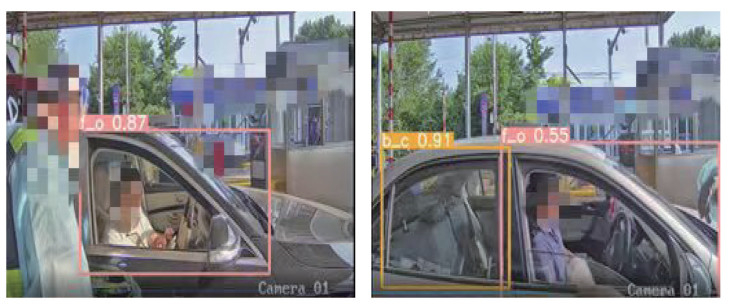

图9 Jetson Nano上运行结果

Fig.9 Running results on Jetson Nano
