基于DeepLab v3+的多任务图像拼接篡改检测算法

doi:10.19678/j.issn.1000-3428.0060026

摘要/Abstract

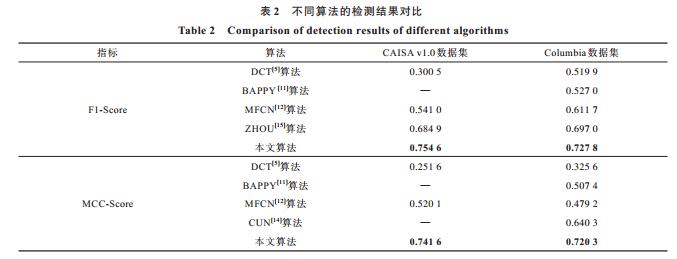

摘要： 在图像拼接篡改检测任务中，受篡改区域尺度多样性及模糊操作的影响，传统分类算法难以提取图像篡改特征。提出一种基于DeepLab v3+的图像拼接篡改检测算法，使用浅层图像特征预测图像的篡改区域边界，提高模型对篡改边界的敏感性。在此基础上，通过多尺度融合特征对图像篡改区域进行分割，并在原空洞空间金字塔模块中融合空间和通道注意力机制，从而提高模型对多尺度篡改区域的适应性。实验结果表明，所提算法能有效检测图像的篡改区域，在CASIA v1.0和Columbia数据集中的分割精度分别为0.754 6和0.727 8，优于DCT、BAPPY、MFCN等算法。

关键词: 图像拼接篡改检测, DeepLab v3+网络, 多任务检测, 注意力机制, 空洞卷积

Abstract: In the detection of image splicing forgery, it is difficult for the traditional classification algorithms to extract the tampering features of the image due to the scale diversity of the tampered area and the interference of the fuzzy operation.In order to solve this problem, a multi-task algorithm based on Deeplab v3+ is proposed for detecting image splicing forgery.The algorithm uses the shallow image features to predict the boundary of the tampered area, so the sensitivity of the model to the tampered area boundary is improved.On this basis, multi-scale fused features are used to segment the tampered area in the image.The spatial and channel attention mechanisms are integrated in the dilated spatial pyramid module to improve the adaptability of the model to multi-scale tampered areas.The experimental results show that the improved algorithm displays a segmentation accuracy of 0.754 6 on the CASIA v1.0 dataset and 0.727 8 on the Columbia dataset, outperforming DCT, BAPPY, MFCN and other advanced algorithms.

Key words: image spliced forgery detection, DeepLab v3+ network, multi-task detection, attention mechanism, arous convolution

中图分类号:

TP391.41

朱昊昱, 孙俊, 陈祺东. 基于DeepLab v3+的多任务图像拼接篡改检测算法[J]. 计算机工程, 2022, 48(1): 253-259.

ZHU Haoyu, SUN Jun, CHEN Qidong. Multi-task Algorithm for Image Splicing Forgery Detection Based on DeepLab v3+[J]. Computer Engineering, 2022, 48(1): 253-259.

https://www.ecice06.com/CN/Y2022/V48/I1/253

图/表 11

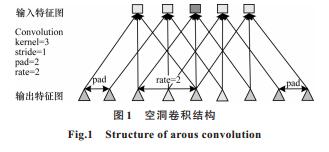

20220108123650

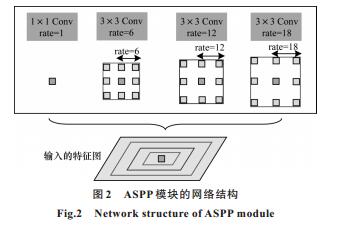

20220108123653

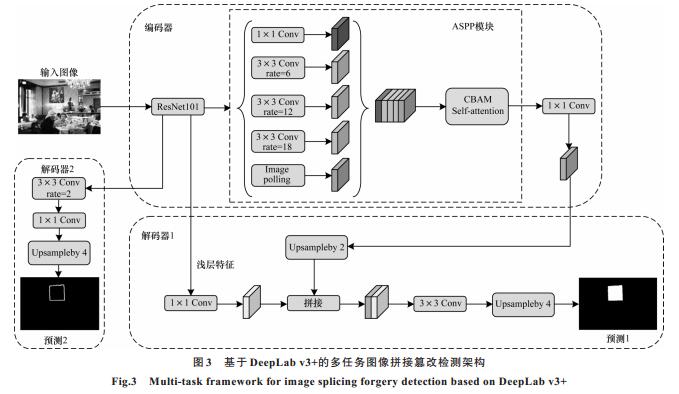

20220108123656

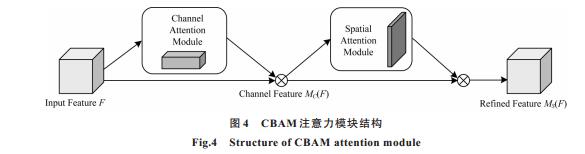

20220108123700

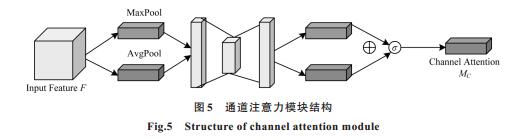

20220108123703

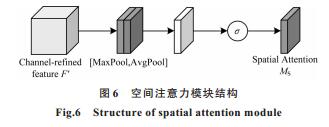

20220108123707

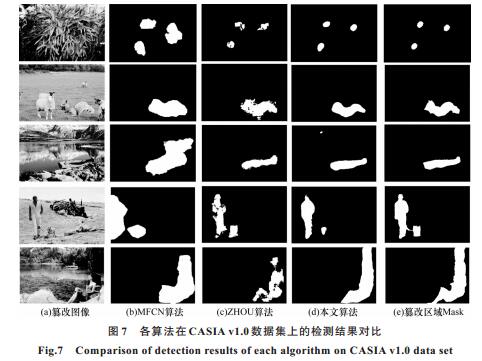

20220108123710

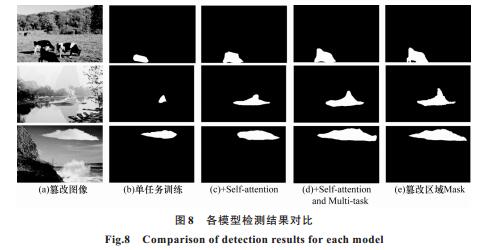

20220108123714

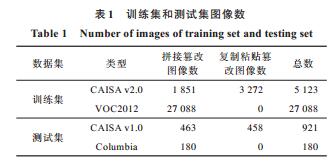

20220108123717

20220108123721

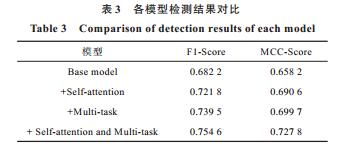

20220108123724

参考文献

[1] 曹刚.数字图像操作取证技术研究[D].北京:北京交通大学, 2013.(in Chinese) CAO G.Research on digital image manipulation forensics[D].Beijing:Beijing Jiaotong University, 2013.
[2] 张韩钰, 吴志昊, 徐勇, 等.增强卷积神经网络的人脸篡改检测方法[J].计算机工程与应用, 2021, 57(8):220-224. ZHANG H Y, WU Z H, XU Y, et al.Face forensics detection method based on enhanced convolutional neural networks[J].Computer Engineering and Applications, 2021, 57(8):220-224.(in Chinese)
[3] PAN X, ZHANG X, YU S.Exposing image splicing with inconsistent local noise variances[C]//Proceedings of 2012 IEEE International Conference on Computational Photography.Washington D.C., USA:IEEE Press, 2012:1-10.
[4] FERRARA P, BIANCHI T, DE ROSA A, et al.Image forgery localization via fine-grained analysis of CFA artifacts[J].IEEE Transactions on Information Forensics and Security, 2012, 7(5):1566-1577.
[5] YE S, SUN Q, CHANG E C.Detecting digital image forgeries by measuring inconsistencies of blocking artifact[C]//Proceedings of 2007 IEEE International Conference on Multimedia and Expo.Washington D.C., USA:IEEE Press, 2007:12-15.
[6] 周治平, 胡成燕, 黄浩.基于色彩一致性的图像模糊篡改检测[J].计算机工程, 2016, 42(1):237-242. ZHOU Z P, HU C Y, HUANG H.Image blur forgery detection based on color consistency[J].Computer Engineering, 2016, 42(1):237-242.(in Chinese)
[7] BAYAR B, STAMM M C.A deep learning approach to universal image manipulation detection using a new convolutional layer[C]//Proceedings of the 4th ACM Workshop on Information Hiding and Multimedia Security.New York, USA:ACM Press, 2016:5-10.
[8] MAYER O, STAMM M C.Forensic similarity for digital images[J].IEEE Transactions on Information Forensics and Security, 2019, 15(4):1331-1346.
[9] PHAN X H, LE T T, NGUYEN C T, et al.Preserving spatial information to enhance performance of image forgery classification[C]//Proceedings of 2019 International Conference on Advanced Technologies For Communications.Washington D.C., USA:IEEE Press, 2019:50-55.
[10] ZHANG Y, GOH J, WIN L L, et al.Image region forgery detection:a deep learning approach[EB/OL].[2020-10-10].https://oar.a-star.edu.sg/.
[11] BAPPY J H, ROY-CHOWDHURY A K, BUNK J, et al.Exploiting spatial structure for localizing manipulated image regions[C]//Proceedings of IEEE International Conference on Computer Vision.Washington D.C., USA:IEEE Press, 2017:4970-4979.
[12] SALLOUM R, REN Y, KUO C.Image splicing localization using a multi-task fully convolutional network[J].Journal of Visual Communication and Image Representation, 2018, 51:201-209.
[13] SIMON Y K, ZISSERMAN A.Very deep convolutional networks for large-scale image recognition[EB/OL].[2020-10-10].https://ui.adsabs.harvard.edu/abs/2014arXiv1409.1556S/.
[14] CUN X, PUN C M.Image splicing localization via semi-global network and fully connected conditional random fields[C]//Proceedings of European Conference on Computer Vision.The Netherlands:Springer, 2018:10-20.
[15] ZHOU P, HAN X, MORARIU V I, et al.Learning rich features for image manipulation detection[C]//Proceedings of IEEE Conference on Computer Vision and Pattern Recognition.Washington D.C., USA:IEEE Press, 2018:1053-1061.
[16] REN S, HE K, GIRSHICK R, et al.Faster R-CNN:towards real-time object detection with region proposal networks[C]//Proceedings of Advances in Neural Information Processing Systems.Washington D.C., USA:IEEE Press, 2015:91-99.
[17] FRIDRICH J, KODOVSKY J.Rich models for steganalysis of digital images[J].IEEE Transactions on Information Forensics and Security, 2012, 7(3):868-882.
[18] HAMMAD R.Image forgery detection using image similarity[J].Multimedia Tools and Applications, 2020, 79(39):28643-28659.
[19] JINDAL N.Copy move and splicing forgery detection using deep convolution neural network, and semantic segmentation[J].Multimedia Tools and Applications, 2020, 80(4):1-29.
[20] CHEN L C, ZHU Y, PAPANDREOU G, et al.Encoder-decoder with atrous separable convolution for semantic image segmentation[EB/OL].[2020-10-10].http://export.arxiv.org/abs/1802.02611.
[21] WOO S, PARK J, LEE J Y, et al.CBAM:convolutional block attention module[EB/OL].[2020-10-10].https://www.researchgate.net/publication/326459473_CBAM_Convolutional_Block_Attention_Module.
[22] HE K, ZHANG X, REN S, et al.Deep residual learning for image recognition[C]//Proceedings of IEEE Conference on Computer VIsion and Pattern Recognition.Washington D.C., USA:IEEE Press, 2016:770-778.
[23] CHEN L C, PAPANDREOU G, KOKKINOS I, et al.Semantic image segmentation with deep convolutional nets and fully connected CRFs[EB/OL].[2020-10-10].https://www.researchgate.net/publication/269932975_Semantic_Image_Segmentation_with_Deep_Convolutional_Nets_and_Fully_Connected_CRFs.
[24] CHEN L C, PAPANDREOU G, KOKKINOS I, et al.Deeplab:semantic image segmentation with deep convolutional nets, atrous convolution, and fully connected CRFs[J].IEEE Transactions on Pattern Analysis and Machine Intelligence, 2017, 40(4):834-848.
[25] DONG J, WANG W.CASIA tampered image detection evaluation (TIDE) database, v1.0 and v2.0CRFs[EB/OL].[2020-10-10].http://forensics.idealtest.org/.
[26] EVERINGHAM M, ESLAMI S M A, VAN G L, et al.The pascal visual object classes challenge:a retrospective[J].International journal of computer vision, 2015, 111(1):98-136.
[27] HSU Y F, CHANG S F.Detecting image splicing using geometry invariants and camera characteristics consistency[C]//Proceedings of 2006 IEEE International Conference on Multimedia and Expo.Washington D.C., USA:IEEE Press, 2006:549-552.
