基于双阶段Conv-Transformer的时频域语音增强算法

doi:10.19678/j.issn.1000-3428.0064966

摘要/Abstract

摘要： 频域语音增强算法通常存在相位失配问题，而相位信息对于语音增强任务非常重要。时域语音增强算法可以有效解决相位失配问题，但是噪声和语音在频域中更易分离。为了实现时域和频域语音增强算法的优势互补，提出一种基于双阶段Conv-Transformer的时频域语音增强算法。采用编解码结构，将带噪语音经过短时傅里叶变换得到的频域特征和一维卷积处理后得到的时域特征作为输入。考虑到Transformer擅长提取语音序列的全局依赖关系，卷积神经网络可以关注局部特征，为了更好地提取时域和频域中的局部信息和全局信息，设计一种Conv-Transformer模块。在此基础上，联合时域和频域损失函数对模型进行优化，使得模型可以同时学习语音在时域和频域中的分布规律。实验结果表明，与单一域的语音增强算法相比，该算法具有更好的降噪效果，增强后的语音感知质量、短时可懂度、信号失真测度、噪声失真测度、综合质量测度分别为3.04、0.953、4.34、3.55、3.69。

关键词: 语音增强, 时频域, 卷积神经网络, 局部信息, 全局信息

Abstract: Phase information is crucial for speech enhancement tasks.However，frequency-domain speech enhancement algorithms often have phase mismatch issues.Time-domain speech enhancement algorithms can effectively solve the problem of phase mismatch，but noise and speech are more easily separated in the frequency domain.To achieve complementary advantages between time-domain and frequency-domain speech enhancement algorithms，a dual-stage Conv-Transformer-based time-frequency domain speech enhancement algorithm is proposed.Adopting an encoding and decoding structure，the frequency domain features obtained from the Short Time Fourier Transform（STFT） of noisy speech and time domain features obtained from one-dimensional convolution processing are used as inputs.Considering that the Transformer is good at extracting global dependencies of speech sequences，Convolutional Neural Network（CNN） can focus on local features.To better extract local and global information in the time and frequency domains，a Conv-Transformer module was designed.On this basis，the model was optimized by combining the time- and frequency-domain loss functions so that the model can learn the distribution of speech in both domains simultaneously.Experimental results show that compared with the single-domain speech enhancement algorithm，this algorithm has better noise reduction effect. The Perceptual Evaluation of Speech Quality（PESQ），Short Time Objective Intelligibility（STOI），Composite Measure for Signal Distortion（CSIG），Composite Measure for Background Intrusiveness（CBAK），and Composite Measure for Overall Speech Quality（COVL） were 3.04，0.953，4.34，3.55，and 3.69，respectively.

Key words: speech enhancement, time-frequency domain, Convolutional Neural Network（CNN）, local information, global information

中图分类号:

TP18

沈学利, 田桂源, 姜彦吉, 马琳琳. 基于双阶段Conv-Transformer的时频域语音增强算法[J]. 计算机工程, 2023, 49(6): 123-130.

SHEN Xueli, TIAN Guiyuan, JIANG Yanji, MA Linlin. Time-Frequency Domain Speech Enhancement Algorithm Based on Dual-Stage Conv-Transformer[J]. Computer Engineering, 2023, 49(6): 123-130.

https://www.ecice06.com/CN/Y2023/V49/I6/123

图/表 11

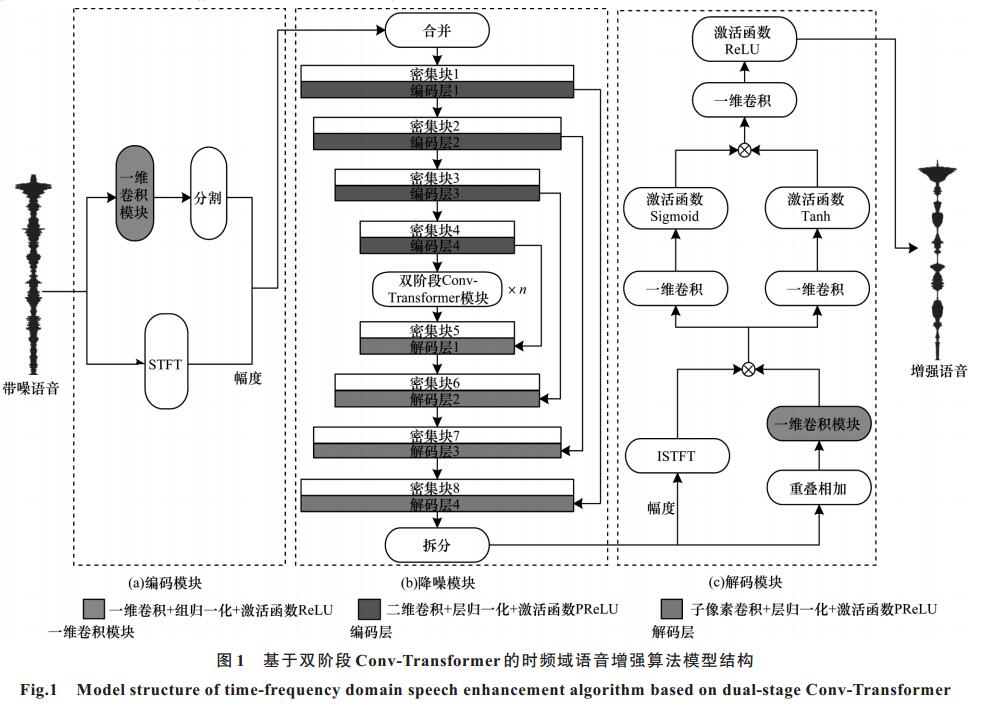

20230615165338

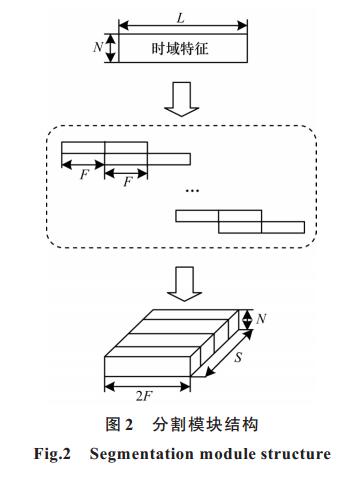

20230615165342

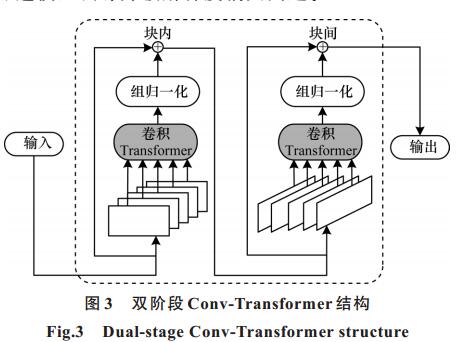

20230615165346

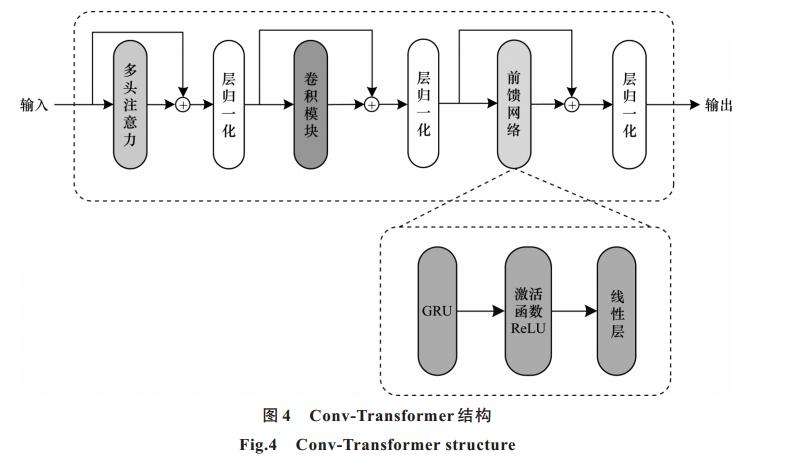

20230615165350

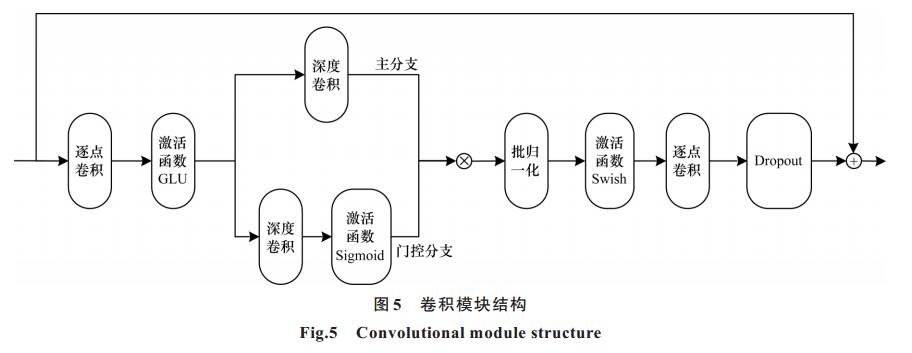

20230615165354

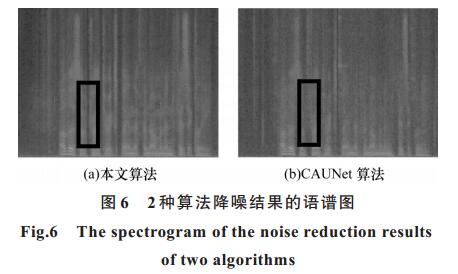

20230615165357

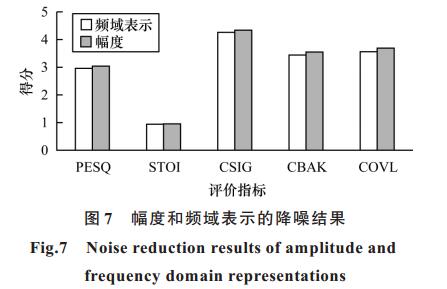

20230615165400

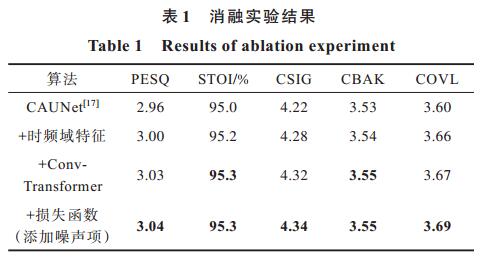

20230615165403

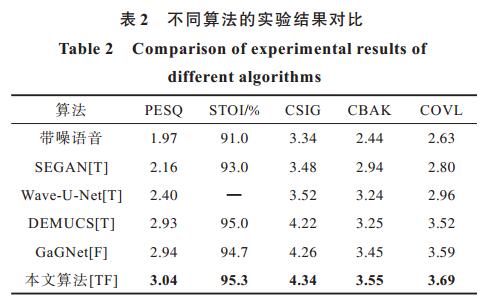

20230615165406

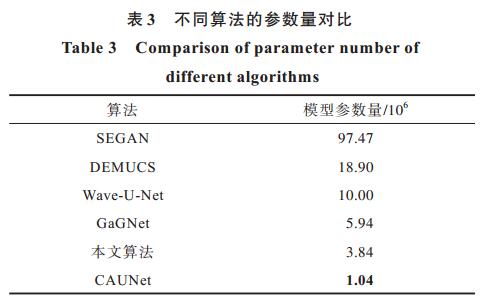

20230615165410

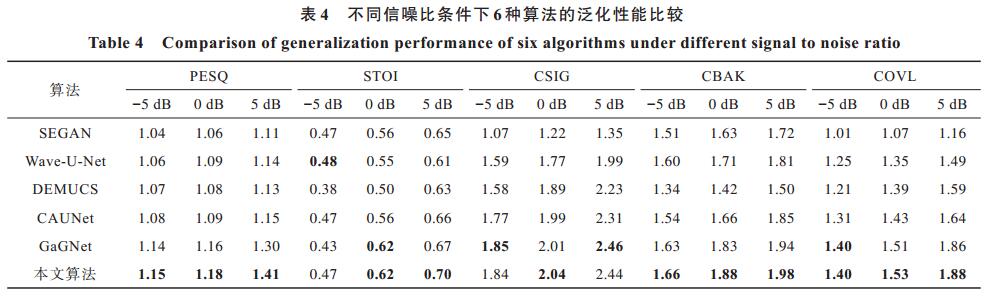

20230615165413

参考文献

[1] YONG K H,WON Y J,JUN C S,et al.A multi-resolution approach to GAN-based speech enhancement[J].Applied Sciences,2021,11(2):721.
[2] XU Y,DU J,DAI L R,et al.An experimental study on speech enhancement based on deep neural networks[J].IEEE Signal Processing Letters,2014,21(1):65-68.
[3] 王志杰,张学良.基于双路径循环神经网络的单通道语音增强[J].信号处理,2021,37(10):1872-1879.WANG Z J,ZHANG X L.Single channel speech enhancement based on dual-path recurrent neural network[J].Journal of Signal Processing,2021,37(10):1872-1879.(in Chinese)
[4] WANG D L,CHEN J T.Supervised speech separation based on deep learning:an overview[J].IEEE/ACM Transactions on Audio,Speech,and Language Processing,2018,26:1702-1726.
[5] TAN K,WANG D L.Learning complex spectral mapping with gated convolutional recurrent networks for monaural speech enhancement[J].IEEE/ACM Transactions on Audio,Speech,and Language Processing,2020,28:380-390.
[6] ZHANG K,HE S,LI H,et al.DBNet:a dual-branch network architecture processing on spectrum and waveform for single-channel speech enhancement[EB/OL].[2022-05-05].https://arxiv.org/abs/2105.02436.
[7] PANDEY A,WANG D.Self-attending RNN for speech enhancement to improve cross-corpus generalization[EB/OL].[2022-05-05].https://arxiv.org/abs/2105.12831.
[8] PALIWAL K,WOJCICKI K,SHANNON B.The importance of phase in speech enhancement[J].Speech Communication,2011,53(4):465-494.
[9] PASCUAL S,BONAFONTE A,SERRÀ J.SEGAN:speech enhancement generative adversarial network[EB/OL].[2022-05-05].https://arxiv.org/abs/1703.09452.
[10] RETHAGE D,PONS J,SERRA X.A wavenet for speech denoising[C]//Proceedings of IEEE International Conference on Acoustics,Speech and Signal Processing.Washington D.C.,USA:IEEE Press,2018:5069-5073.
[11] PANDEY A,WANG D L.Densely connected neural network with dilated convolutions for real-time speech enhancement in the time domain[C]//Proceedings of 2020 IEEE International Conference on Acoustics,Speech and Signal Processing.Washington D.C.,USA:IEEE Press,2020:6629-6633.
[12] KISHORE V,TIWARI N,PARAMASIVAM P.Improved speech enhancement using TCN with multiple encoder-decoder layers[EB/OL].[2022-05-05].http://www.interspeech2020.org/uploadfile/pdf/Thu-2-11-8.pdf.
[13] 袁文浩,孙文珠,夏斌,等.利用深度卷积神经网络提高未知噪声下的语音增强性能[J].自动化学报,2018,44(4):751-759.YUAN W H,SUN W Z,XIA B,et al.Improving speech enhancement in unseen noise using deep convolutional neural network[J].Acta Automatica Sinica,2018,44(4):751-759.(in Chinese)
[14] CHOI H S,PARK S,LEE J H,et al.Real-time denoising and dereverberation wtih tiny recurrent U-net[C]//Proceedings of 2021 IEEE International Conference on Acoustics,Speech and Signal Processing.Washington D.C.,USA:IEEE Press,2021:5789-5793.
[15] VASWANI A,SHAZEER N,PARMAR N,et al.Attention is all you need[EB/OL].[2022-05-05].https://arxiv.org/abs/1706.03762.
[16] KIM J,EL-KHAMY M,LEE J.T-GSA:Transformer with Gaussian-weighted self-attention for speech enhancement[C]//Proceedings of 2020 IEEE International Conference on Acoustics,Speech and Signal Processing.Washington D.C.,USA:IEEE Press,2020:6649-6653.
[17] WANG K,HE B B,ZHU W P.CAUNet:context-aware U-net for speech enhancement in time domain[C]//Proceedings of IEEE International Symposium on Circuits and Systems.Washington D.C.,USA:IEEE Press,2021:1-5.
[18] YU W,ZHOU J,WANG H,et al.SETransformer:speech enhancement Transformer[J].Cognitive Computation,2022,14(3):1152-1158.
[19] HU G,WANG K J,LIU L L.Underwater acoustic target recognition based on depthwise separable convolution neural networks[J].Sensors (Basel,Switzerland),2021,21(4):1429.
[20] REN X,ZHANG X,CHEN L,et al.A causal U-Net based neural beamforming network for real-time multi-channel speech enhancement[EB/OL].[2022-05-05].https://www.isca-speech.org/archive/pdfs/interspeech_2021/ren21_interspeech.pdf.
[21] VEAUX C,YAMAGISHI J,KING S.The voice bank corpus:design,collection and data analysis of a large regional accent speech database[EB/OL].[2022-05-05].https://www.researchgate.net/publication/261462711_The_voice_bank_corpus_Design_collection_and_data_analysis_of_a_large_regional_accent_speech_database.
[22] THIEMANN J,ITO N,VINCENT E.The Diverse Environments Multi-Channel Acoustic Noise Database (DEMAND):a database of multichannel environmental noise recordings[J].Proceedings of Meetings on Acoustics,2013,19:3591-3591.
[23] WEN S X,DU J,LEE C H.On generating mixing noise signals with basis functions for simulating noisy speech and learning DNN-based speech enhancement models[C]//Proceedings of the 27th IEEE International Workshop on Machine Learning for Signal Processing.Washington D.C.,USA:IEEE Press,2017:1-6.
[24] RIX A W,BEERENDS J G,HOLLIER M P,et al.Perceptual Evaluation of Speech Quality(PESQ)-a new method for speech quality assessment of telephone networks and codecs[C]//Proceedings of IEEE International Conference on Acoustics,Speech,and Signal Processing.Washington D.C.,USA:IEEE Press,2001:749-752.
[25] TAAL C H,HENDRIKS R C,HEUSDENS R,et al.An algorithm for intelligibility prediction of time-frequency weighted noisy speech[J].IEEE Transactions on Audio,Speech,and Language Processing,2011,19(7):2125-2136.
[26] HU Y,LOIZOU P C.Evaluation of objective quality measures for speech enhancement[J].IEEE Transactions on Audio,Speech,and Language Processing,2008,16(1):229-238.
[27] MACARTNEY C,WEYDE T.Improved speech enhancement with the Wave-U-Net[EB/OL].[2022-05-05].https://arxiv.org/abs/1811.11307.
[28] DEFOSSEZ A,SYNNAEVE G,ADI Y.Real time speech enhancement in the waveform domain[EB/OL].[2022-05-05].https://arxiv.org/abs/2006.12847.
[29] LI A,ZHENG C,ZHANG L,et al.Glance and gaze:a collaborative learning framework for single-channel speech enhancement[J].Applied Acoustics,2022,187:108499.
[30] PANAYOTOV V,CHEN G G,POVEY D,et al.Librispeech:an ASR corpus based on public domain audio books[C]//Proceedings of IEEE International Conference on Acoustics,Speech and Signal Processing.Washington D.C.,USA:IEEE Press,2015:5206-5210.
[31] VARGA A,STEENEKEN H J M.Assessment for automatic speech recognition II:NOISEX-92:a database and an experiment to study the effect of additive noise on speech recognition systems[J].Speech Communication,1993,12(3):247-251.
