Research on Traffic Classification Method for Satellite Networks

doi:10.19678/j.issn.1000-3428.0069654

Abstract

Abstract:

Satellite networks have wide coverage, strong mobility, and ultralow power consumption, which allow them to act as an extension to ground communication networks, thereby promoting the construction of integrated space-ground networks. However, the opening and popularization of satellite services have increased network traffic and made it more complex, making their management and service scheduling challenging. Thus, designing an efficient network traffic classification method and allocating reasonable computing resources to different types of satellite network traffic have become critical to alleviating the pressure on satellite networks. Traditional network traffic classification methods based on ports, payloads, statistics, and behavior have issues concerning effectiveness and privacy, making them inadequate for complex network services. Various technologies are widely applied in the development of large models. Therefore, to enhance the operational efficiency of satellite networks and optimize their computing power, this study proposes a network traffic classification method based on the Global Perception Module (GPM) and ViT (Vision Transformer) model. This method transforms network traffic data into grayscale images and extracts features to fully capture global and local information. The processed data are then input into the ViT model, which leverages its multihead attention mechanism to extract data correlation information and enhance classification capability. Experimental results indicate that the accuracy of the GPM-ViT model reaches 97.86%, which is a significant improvement over that of baseline models.

Key words: network traffic, classification, satellite network, feature, ViT network

摘要：

卫星网络具有覆盖范围广、机动性强及功耗超低等优势, 可作为地面通信网络的重要补充和延伸, 推动构建空天地一体化网络。然而, 随着卫星业务的开放普及, 卫星网络流量激增且日益复杂, 给卫星网络的管理及业务调度带来了严峻挑战。显然, 设计一种高效的网络流量分类方法, 给不同类型的卫星网络流量分配合理的计算资源, 成为缓解卫星网络压力的关键。基于端口、载荷、统计以及行为的传统网络流量分类方法存在有效性、隐私性等问题, 已经不再满足复杂网络业务的需求。随着大模型的发展, 各种大模型技术得到广泛应用。因此, 为提升卫星网络的业务调度效率并优化卫星网络算力, 提出一种基于全局感知模块(GPM)-ViT(Vision Transformer)模型的网络流量分类方法。基于网络流量数据, 将流量会话数据转化为灰度图片, 经过特征提取模块, 充分提取图片全局和局部信息。将处理后的数据输入ViT, 利用其多头注意力机制提取数据关联信息, 增强分类能力。实验结果表明, GPM-ViT模型的分类准确率达到97.86%, 相比基准模型有所提升。

关键词: 网络流量, 分类, 卫星网络, 特征, ViT网络

MO Dingtao, JU Ying, LI Wenjin, ZHANG Yasheng, HE Ci, DONG Feihu. Research on Traffic Classification Method for Satellite Networks[J]. Computer Engineering, 2025, 51(5): 9-19.

莫定涛, 俱莹, 李文进, 张亚生, 何辞, 董飞虎. 面向卫星网络的流量分类方法研究[J]. 计算机工程, 2025, 51(5): 9-19.

/ Recommend / Download Citations

URL: https://www.ecice06.com/EN/10.19678/j.issn.1000-3428.0069654

https://www.ecice06.com/EN/Y2025/V51/I5/9

Figures/Tables 17

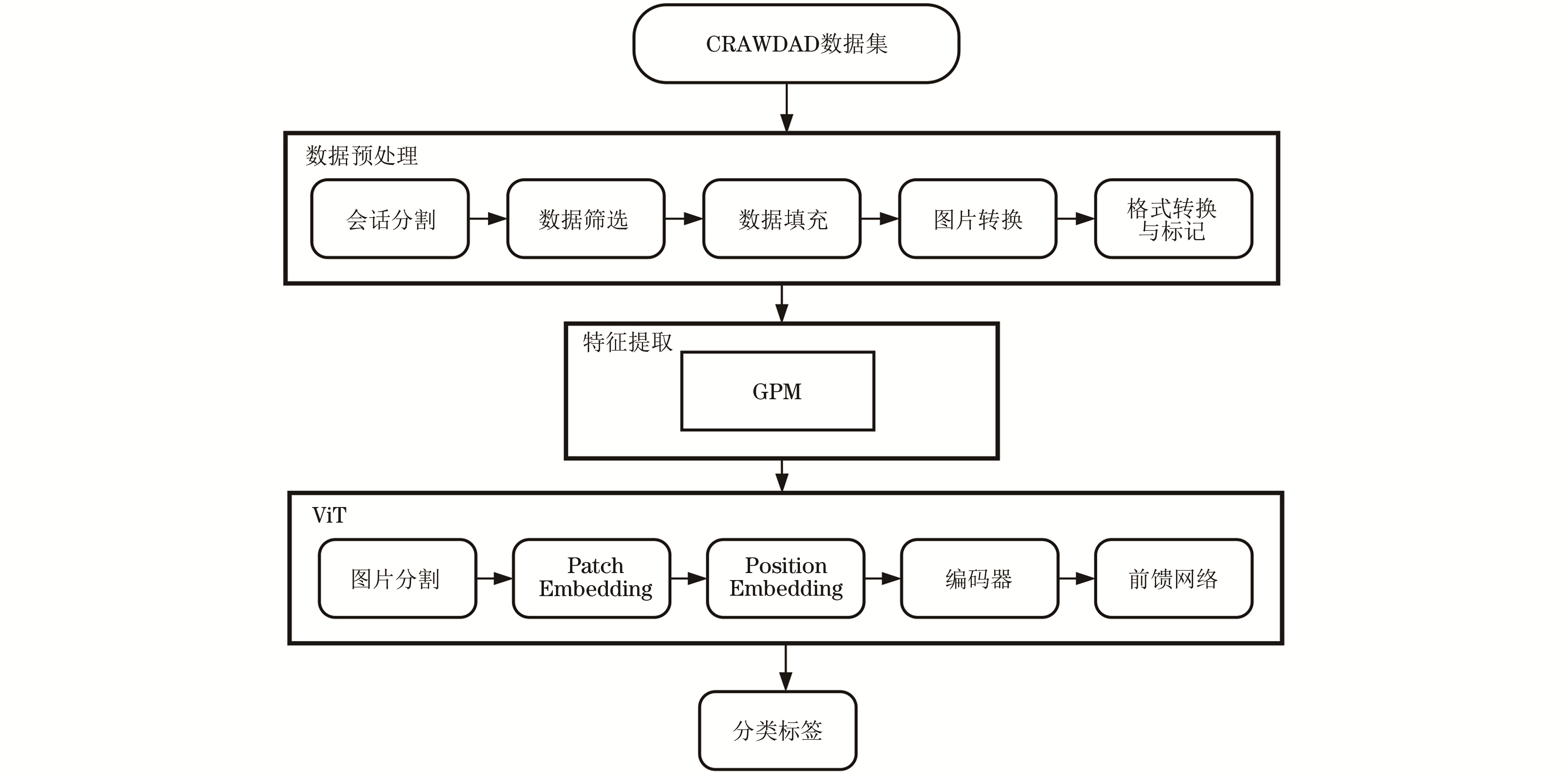

Fig.1 Overall architecture of network traffic classification method based on GPM-ViT

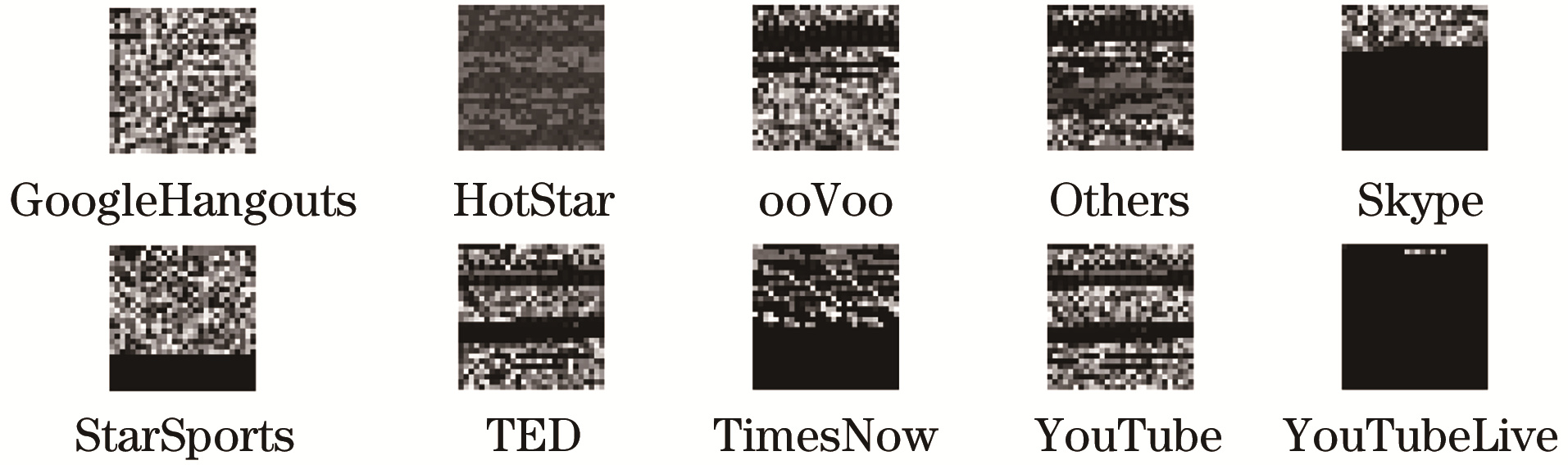

Fig.2 Network traffic display chart

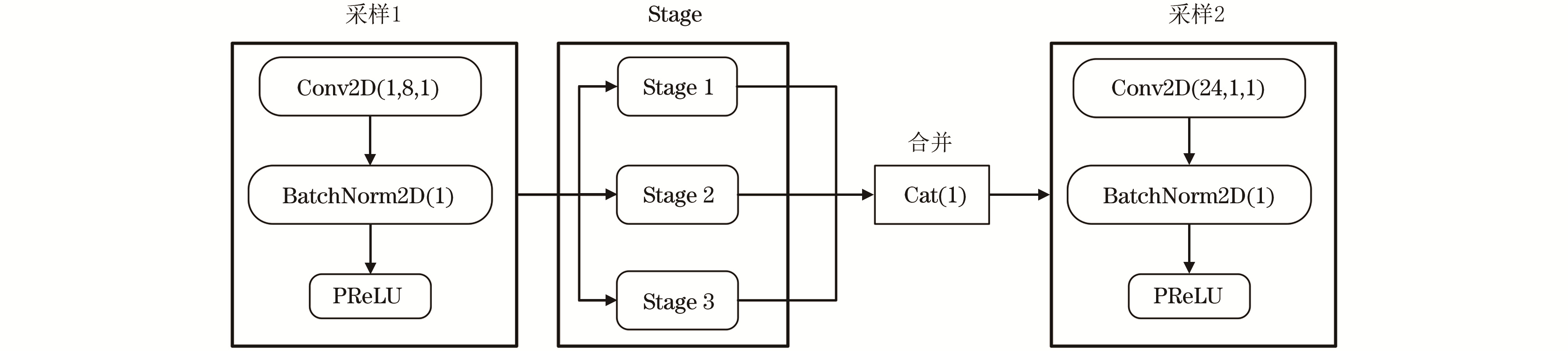

Fig.3 GPM structure

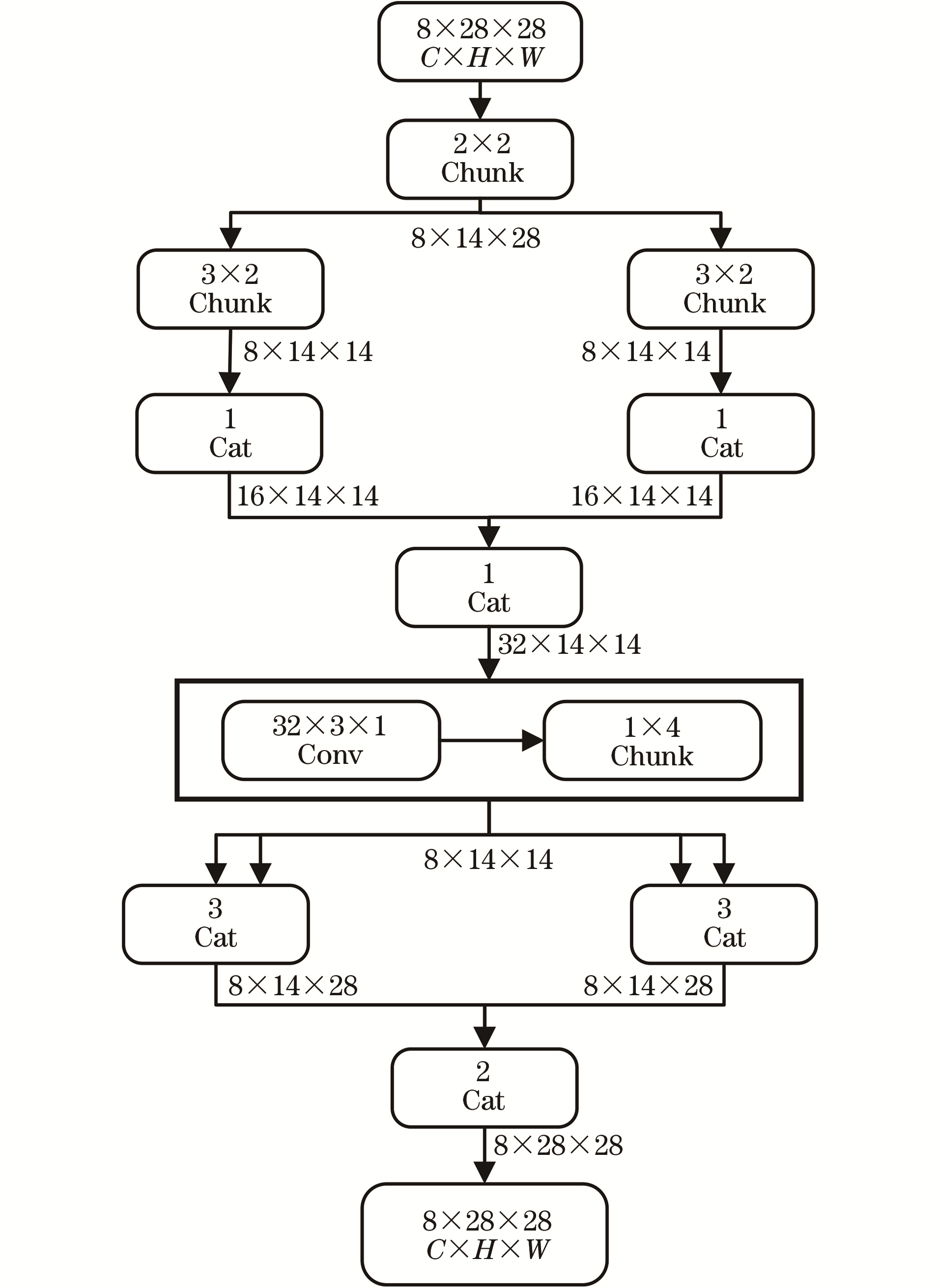

Fig.4 Stage 1 network structure

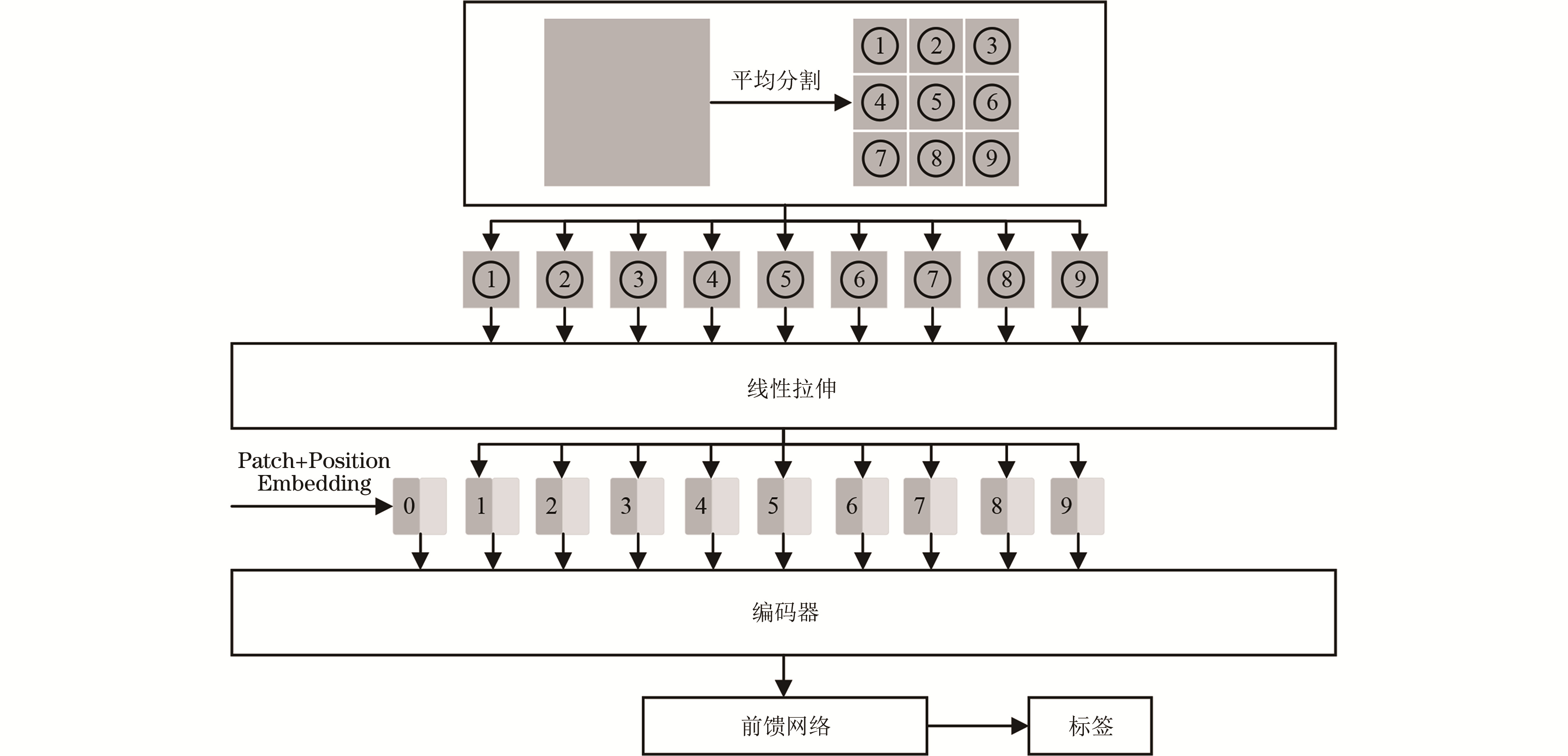

Fig.5 ViT network structure

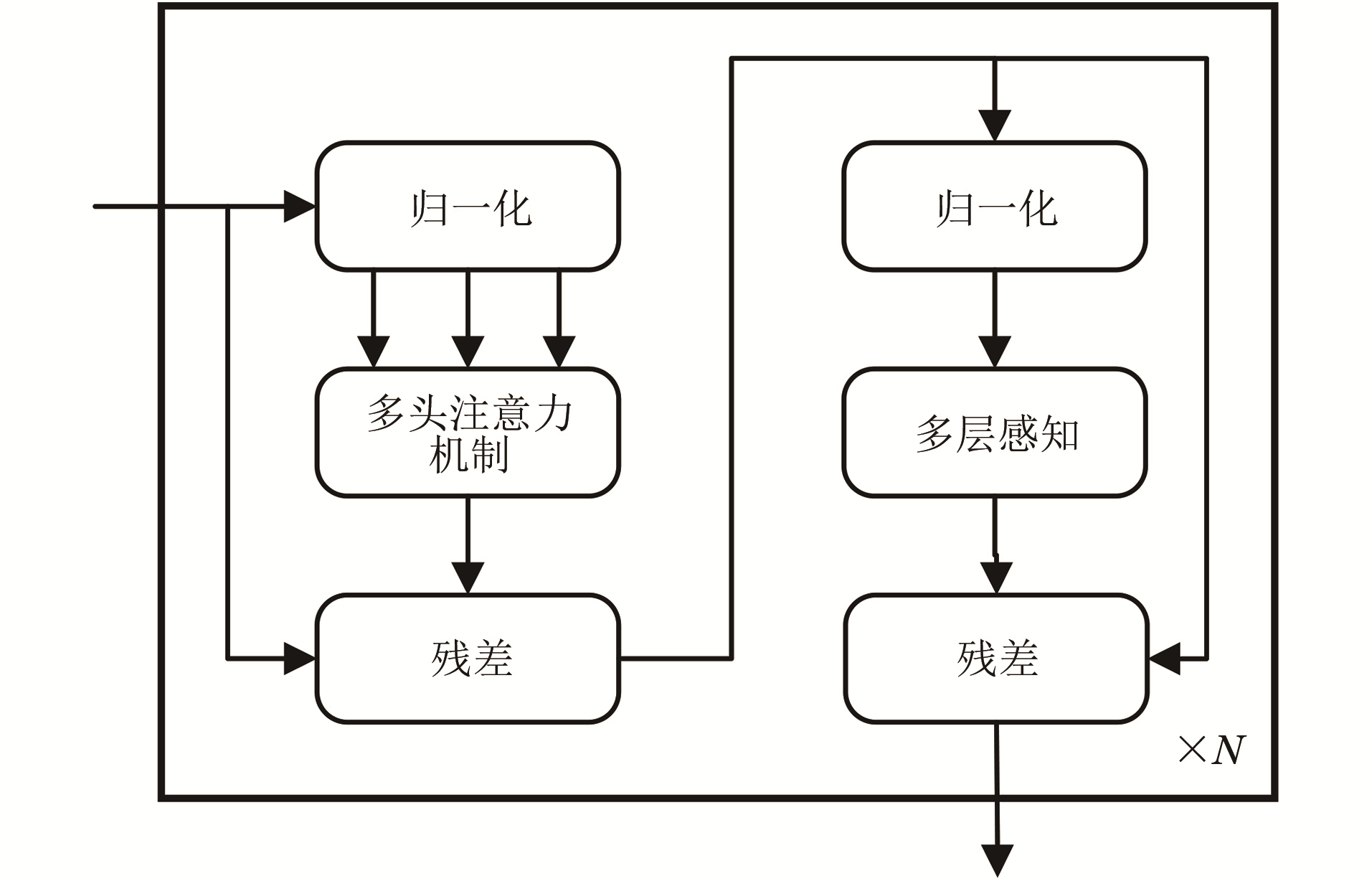

Fig.6 Encoder structure

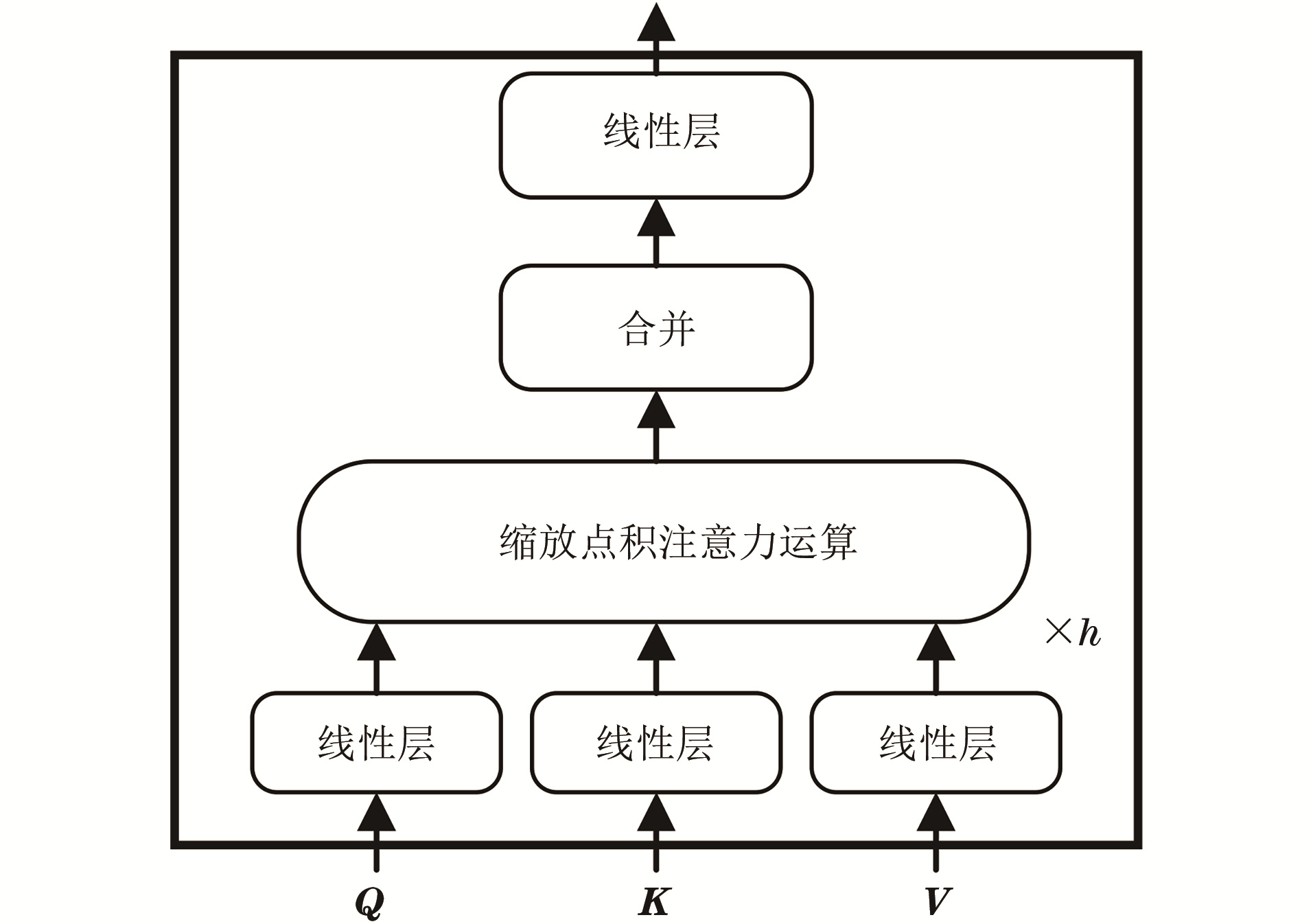

Fig.7 Multi-head attention structure

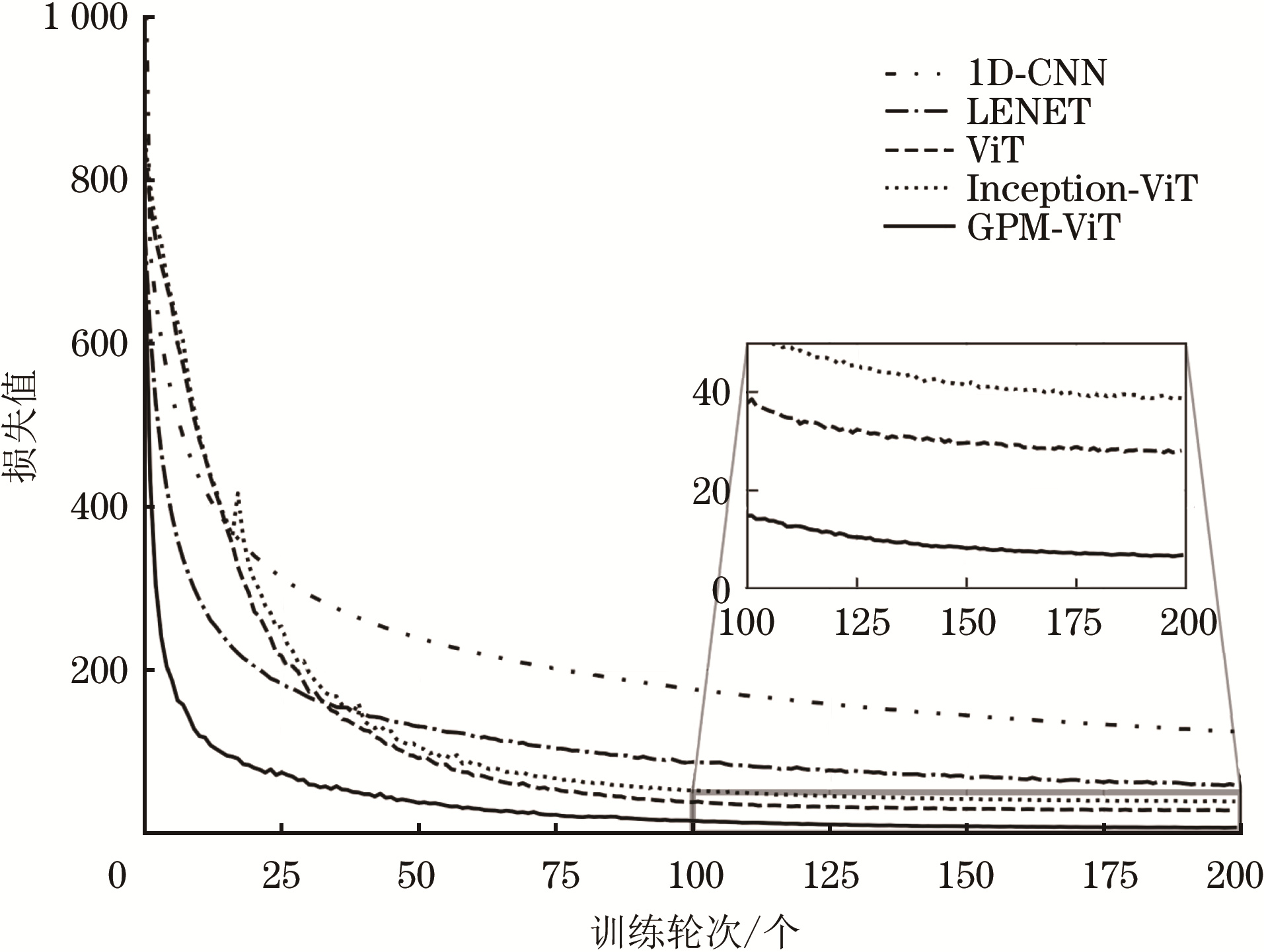

Fig.8 Training performance display chart

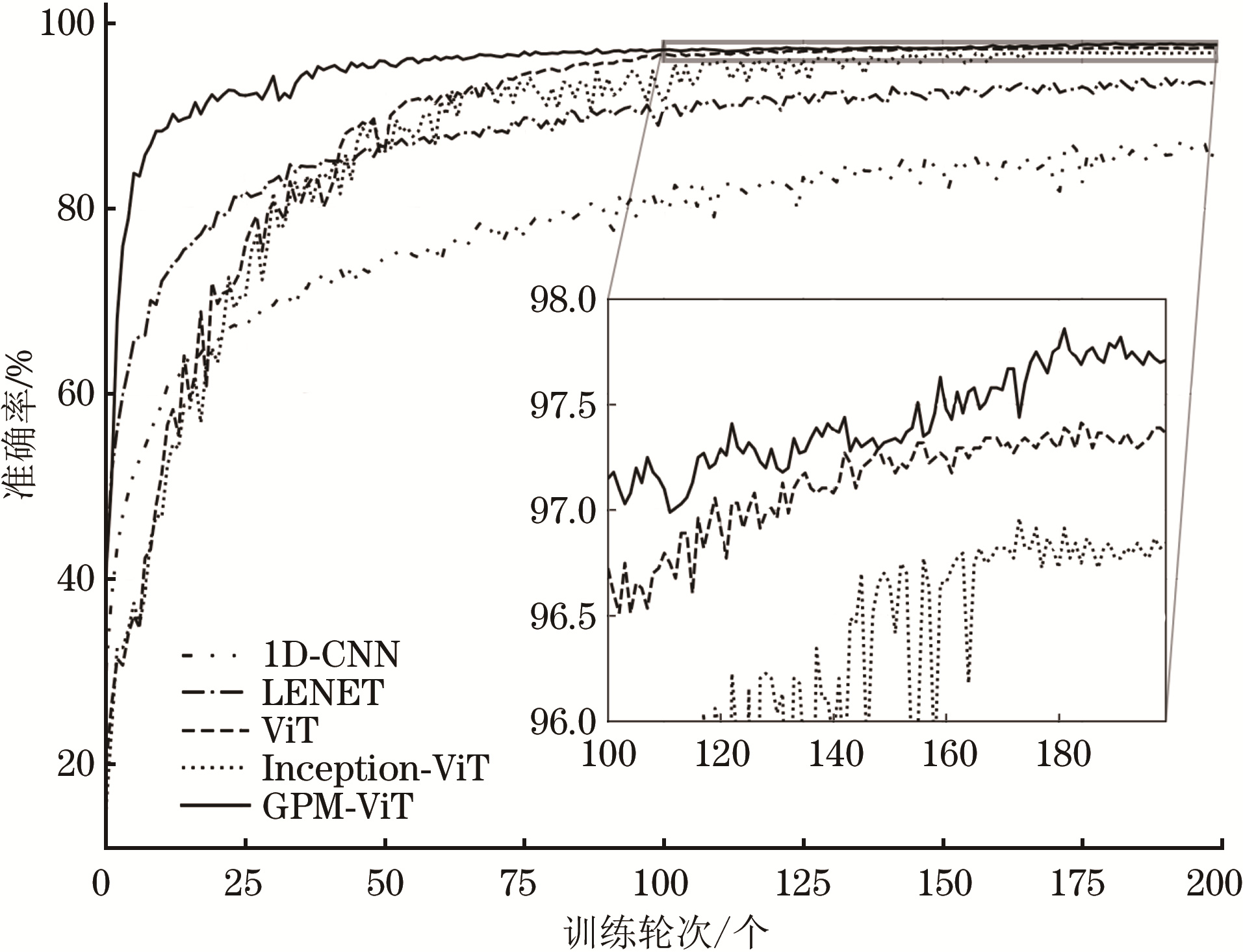

Fig.9 Classification performance display chart

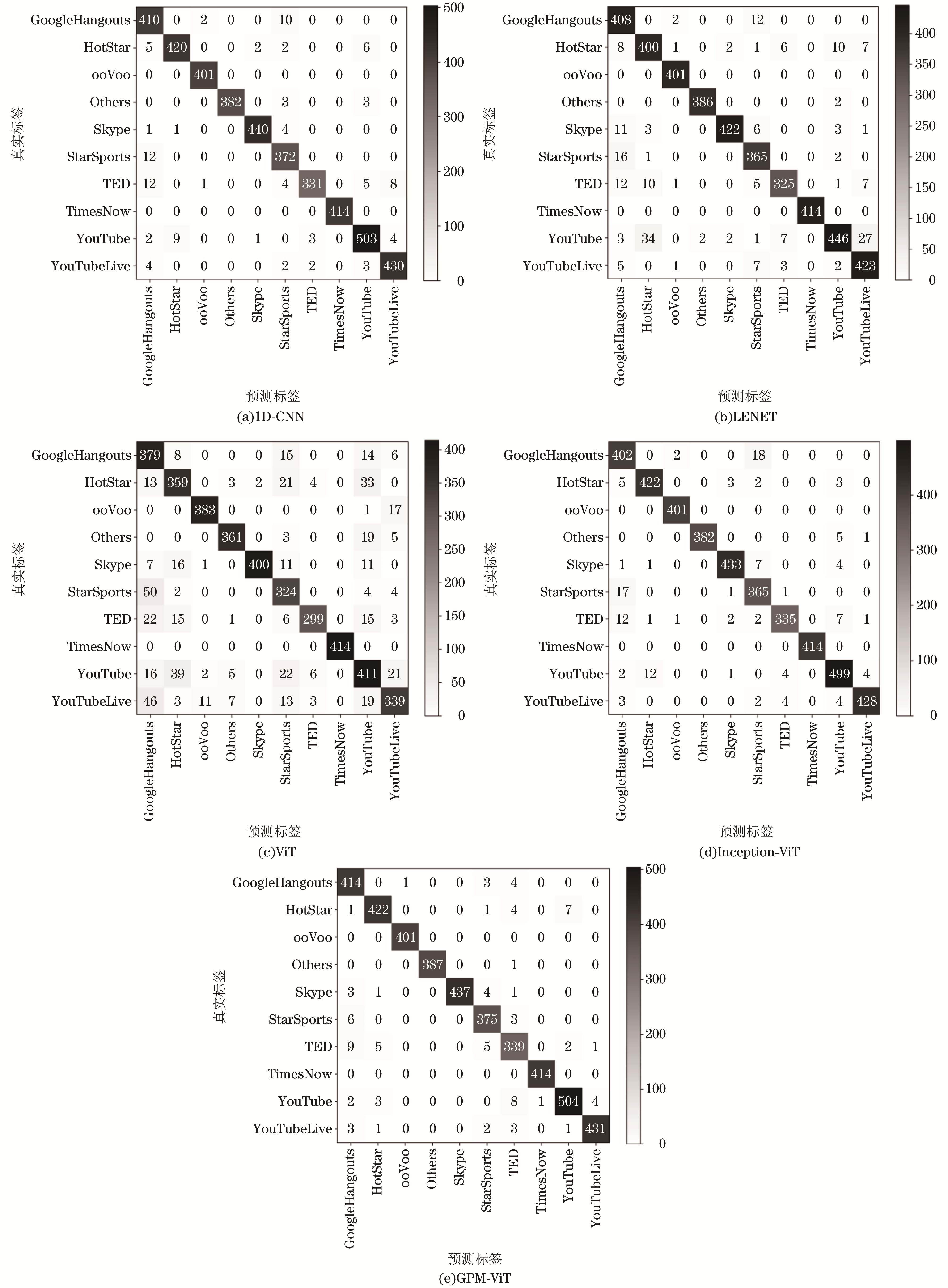

Fig.10 Confusion matrix display chart

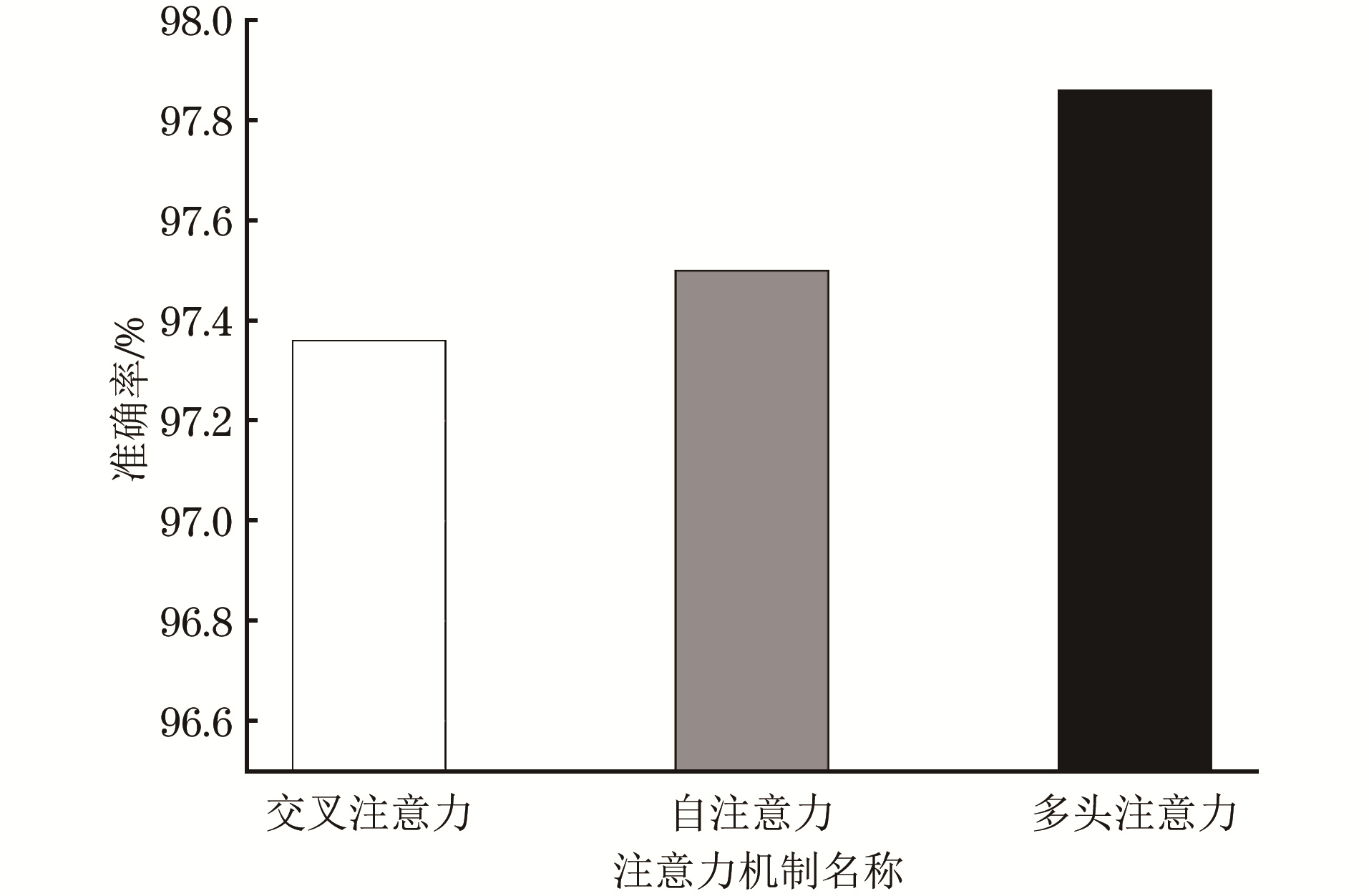

Fig.11 Attention mechanism performance display chart

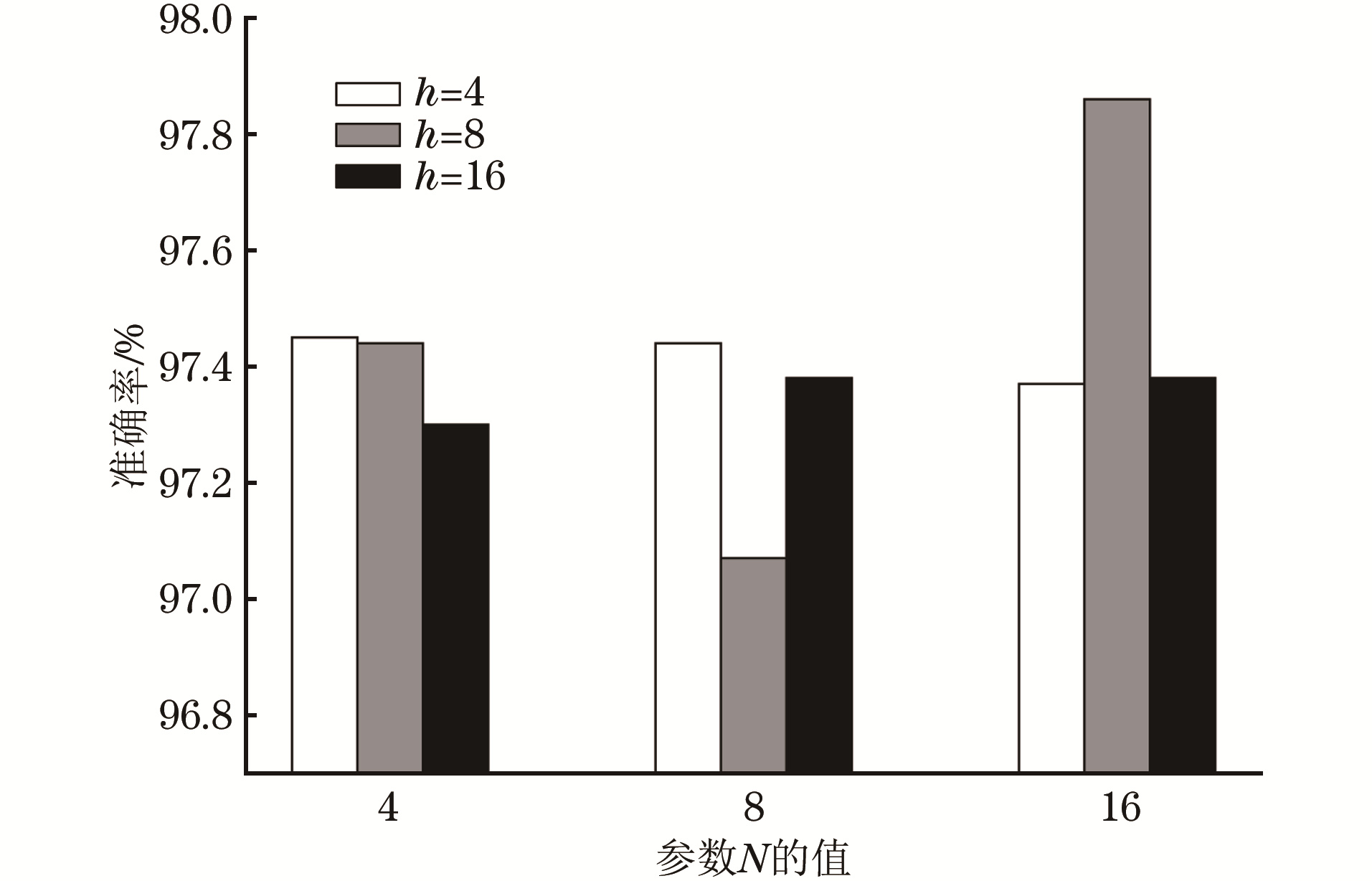

Fig.12 Parameter setting performance display chart

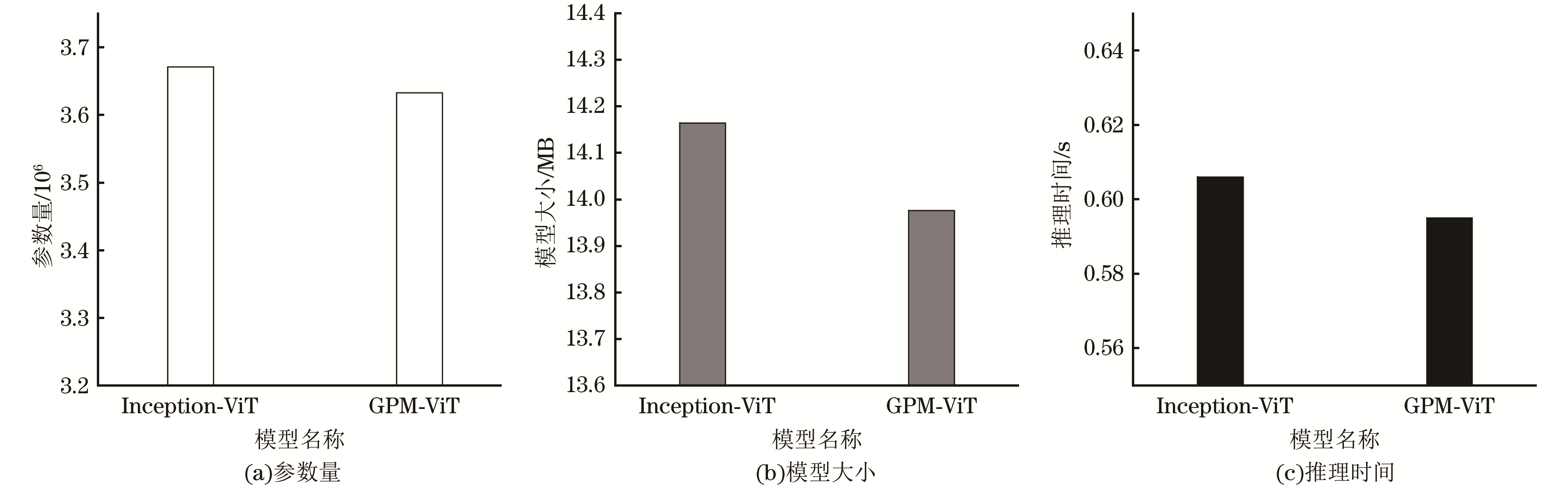

Fig.13 Complexity performance display chart

References 26

1	张晓凯, 郭道省, 张邦宁. 空天地一体化网络研究现状与新技术的应用展望. 天地一体化信息网络, 2021 (4): 19- 26.
	ZHANG X K , GUO D X , ZHANG B N . Research status of space-air-ground integrated network and application prospects of new technologies. Space-Integrated-Ground Information Networks, 2021 (4): 19- 26.
2	郑爽, 张兴, 王文博. 低轨卫星通信网络路由技术综述. 天地一体化信息网络, 2022 (3): 97- 105.
	ZHENG S , ZHANG X , WANG W B . Survey of low earth orbit satellite communication network routing technology. Space-Integrated-Ground Information Networks, 2022 (3): 97- 105.
3	高新成, 张宣, 樊本航, 等. 基于改进的CNN-Transformer加密流量分类方法. 吉林大学学报(理学版), 2024, 62 (3): 683- 690.
	GAO X C , ZHANG X , FAN B H , et al. Improved CNN-Transformer based encrypted traffic classification method. Journal of Jilin University (Science Edition), 2024, 62 (3): 683- 690.
4	MADHUKAR A, WILLIAMSON C. A longitudinal study of P2P traffic classification[C]//Proceedings of the 14th IEEE International Symposium on Modeling, Analysis, and Simulation. Washington D.C., USA: IEEE Press, 2006: 179-188.
5	MOORE A W , PAPAGIANNAKI K . Toward the accurate identification of network applications. Berlin, Germany: Springer, 2005.
6	SEN S, SPATSCHECK O, WANG D M, et al. Accurate, scalable in-network identification of P2P traffic using application signatures[C]//Proceedings of the 13th International Conference on World Wide Web. New York, USA: ACM Press, 2004: 512-521.
7	李腾. SDN中基于机器学习的网络流量分类研究[D]. 青岛: 青岛理工大学, 2023.
	LI T. Research on network traffic classification based on machine learning in SDN[D]. Qingdao: Qingdao University of Technology, 2023. (in Chinese)
8	纪守领, 杜天宇, 邓水光, 等. 深度学习模型鲁棒性研究综述. 计算机学报, 2022, 45 (1): 190- 206.
	JI S L , DU T Y , DENG S G , et al. Robustness certification research on deep learning models: a survey. Chinese Journal of Computers, 2022, 45 (1): 190- 206.
9	于治平, 刘彩霞, 刘树新, 等. 基于机器学习的网络流量分类综述. 信息工程大学学报, 2023, 24 (4): 447- 453. doi: 10.3969/j.issn.1671-0673.2023.04.009
	YU Z P , LIU C X , LIU S X , et al. Overview of network traffic classification based on machine learning. Journal of Information Engineering University, 2023, 24 (4): 447- 453. doi: 10.3969/j.issn.1671-0673.2023.04.009
10	郭益民. 基于深度学习的Android恶意应用网络流量检测方法[D]. 上海: 上海交通大学, 2020.
	GUO Y M. Network traffic detection method of Android malicious application based on deep learning[D]. Shanghai: Shanghai Jiao Tong University, 2020. (in Chinese)
11	GILLIOZ A, CASAS J, MUGELLINI E, et al. Overview of the Transformer-based models for NLP tasks[C]//Proceedings of the 15th Conference on Computer Science and Information Systems. Washington D.C., USA: IEEE Press, 2020: 179-183.
12	CHANG Z X, CAI Q Y. Enhanced vision Transformer with dual-dimensional self-attention for image recognition[C]//Proceedings of the IEEE 6th International Conference on Pattern Recognition and Artificial Intelligence (PRAI). Washington D.C., USA: IEEE Press, 2023: 346-351.
13	孙懿, 高见, 顾益军. 融合一维Inception结构与ViT的恶意加密流量检测. 计算机工程, 2023, 49 (1): 154- 162. doi: 10.3969/j.issn.1007-130X.2023.01.018
	SUN Y , GAO J , GU Y J . Malicious encrypted traffic detection integrating one-dimensional Inception structure and ViT. Computer Engineering, 2023, 49 (1): 154- 162. doi: 10.3969/j.issn.1007-130X.2023.01.018
14	刘贺, 张文波. 一种基于ViT改进的轻量化恶意流量识别方法. 小型微型计算机系统, 2024, 45 (2): 388- 395.
	LIU H , ZHANG W B . Improved light-weight malicious traffic identification method based on ViT. Journal of Chinese Computer Systems, 2024, 45 (2): 388- 395.
15	刘帅. 基于机器学习的加密流量识别研究与实现[D]. 北京: 北京邮电大学, 2020.
	LIU S. Research and implementation of encrypted traffc recognition based on machine learning[D]. Beijing: Beijing University of Posts and Telecommunications, 2020. (in Chinese)
16	ZANDER S, NGUYEN T, ARMITAGE G. Automated traffic classification and application identification using machine learning[C]// Proceedings of the IEEE Conference on Local Computer Networks. Washington D.C., USA: IEEE Press, 2005: 250-257.
17	CHEESEMAN P , STUTZ J . Bayesian classification (AutoClass): theory and results. Advances in knowledge discovery and data mining, 1996, 180, 153- 180.
18	NetMate[EB/OL]. [2024-02-11]. http://sourceforge.net/projects/netmate-meter/.
19	ERMAN J, MAHANTI A, ARLITT M, et al. Identifying and discriminating between Web and peer-to-peer traffic in the network core[C]//Proceedings of the 16th International Conference on World Wide Web. New York, USA: ACM Press, 2007: 883-892.
20	WANG W, ZHU M, WANG J L, et al. End-to-end encrypted traffic classification with one-dimensional convolution neural networks[C]//Proceedings of the IEEE International Conference on Intelligence and Security Informatics (ISI). Washington D.C., USA: IEEE Press, 2017: 43-48.
21	WANG W, ZHU M, ZENG X W, et al. Malware traffic classification using convolutional neural network for representation learning[C]//Proceedings of the International Conference on Information Networking. Washington D.C., USA: IEEE Press, 2017: 712-717.
22	ZOU Z, GE J G, ZHENG H B, et al. Encrypted traffic classification with a convolutional long short-term memory neural network[C]// Proceedings of the IEEE 20th International Conference on High Performance Computing and Communications; IEEE 16th International Conference on Smart City; IEEE 4th International Conference on Data Science and Systems (HPCC/SmartCity/DSS). Washington D.C., USA: IEEE Press, 2018: 329-334.
23	LOTFOLLAHI M , SIAVOSHANI M J , ZADE R S H , et al. Deep packet: a novel approach for encrypted traffic classification using deep learning. Soft Computing, 2020, 24 (3): 1999- 2012. doi: 10.1007/s00500-019-04030-2
24	DAINOTTI A , PESCAPE A , CLAFFY K C . Issues and future directions in traffic classification. IEEE Network, 2012, 26 (1): 35- 40. doi: 10.1109/MNET.2012.6135854
25	NETRESE C. SplitCap[EB/OL]. [2024-02-11]. https://www.netresrc.com/?page=SplitCap.
26	LIU N, HAN J W. DHSNet: deep hierarchical saliency network for salient object detection[C]//Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Washington D.C., USA: IEEE Press, 2016: 678-686.
